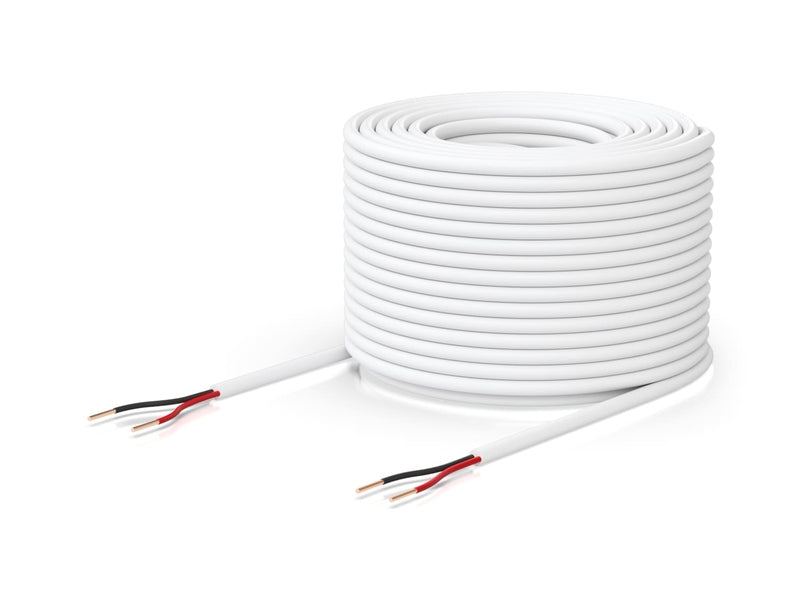

Ubiquiti Door Lock Relay Cable, 500-foot (152.4 m) Spool of One Pair, Low-voltage Cable

Overview

Door Lock Relay Cable
UACC-Cable-DoorLockRelay-1P

A 500-foot (152.4 m) spool of one or two-pair, low-voltage cable.
1-Pair Relay Cable: Connects an electric/magnetic lock to an Access Hub
2-Pair Relay Cable: Connects an electric/magnetic lock and door position sensor to an Access Hub
1-Pair Relay Cable:
— (2) 18 AWG conductors for an electric/magnetic lock
2-Pair Relay Cable:
— (2) 18 AWG conductors for an electric/magnetic lock
— (2) 22 AWG conductors for a door position sensor
Cable length 152.4 m
Plenum-rated

Compatibility
UA-Lock-Magnetic
UA-G2-SK-Pro
UA-Lock-Electric
UA-G2-SK
EAH-8
UA-G3-SK-Pro
UA-Hub-Door
UA-G3-SK
UA-Hub-Gate
UA-Hub-Door-Mini

UACC-Cable-DoorLockRelay-1P Specifications
Product Type	Low-voltage relay cable for door lock control
Cable Length	152.4 m (500 ft)
Color	White
Conductor Count	2 (1 pair)
Conductor Gauge	18 AWG
Conductor Material	Solid bare copper
Insulation Material	Semi-rigid polyvinyl chloride (SR-PVC)
Insulation Colors	Black / Red
Supported Voltage	36V DC
Current Rating	2A (for 500 ft length)
Conductor DCR	23.2 ohm/km
Flame Rating	VW-1
Jacket Material	Thermoplastic elastomer (TPE)
Jacket Outer Diameter	4.2 mm (0.17")
Minimum Bend Radius	33 mm (1.3")
Max Pulling Tension	16.4 kgf
Weight	4.58 kg (10.1 lb)
Operating Temperature	-45 to 65° C (-49 to 149° F)
Storage Temperature	-45 to 65° C (-49 to 149° F)
Compatible Devices	UA-Hub-Door, UA-Hub-Door-Mini, UA-Hub-Gate UA-G2-SK, UA-G2-SK-Pro, UA-G3-SK, UA-G3-SK-Pro UA-Lock-Magnetic, UA-Lock-Electric, EAH-8
NDAA Compliant	✓
