Ubiquiti Door Lock Relay Cable, 500-foot (152.4 m) Spool of Two-pair, low-voltage Cable, 36V DC, Solid bare copper,White

Overview

Door Lock Relay Cable
UACC-Cable-DoorLockRelay-2P

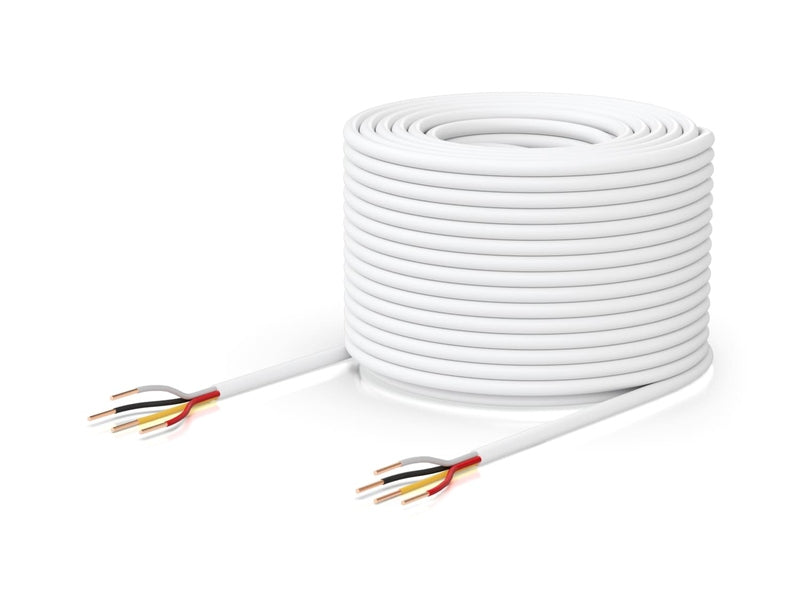

A 500-foot (152.4 m) spool of one or two-pair, low-voltage cable.

1-Pair Relay Cable: Connects an electric/magnetic lock to an Access Hub

2-Pair Relay Cable: Connects an electric/magnetic lock and door position sensor to an Access Hub

1-Pair Relay Cable:
— (2) 18 AWG conductors for an electric/magnetic lock

2-Pair Relay Cable:
— (2) 18 AWG conductors for an electric/magnetic lock
— (2) 22 AWG conductors for a door position sensor
Cable length 152.4 m
Plenum-rated

Compatibility
UA-Lock-Magnetic
UA-G2-SK-Pro
UA-Lock-Electric
UA-G2-SK
EAH-8
UA-G3-SK-Pro
UA-Hub-Door
UA-G3-SK
UA-Hub-Gate
UA-Hub-Door-Mini

UACC-Cable-DoorLockRelay-2P Specifications
Product Type	Low-voltage relay cable for UniFi Access
Cable Length	152.4 m (500 ft)

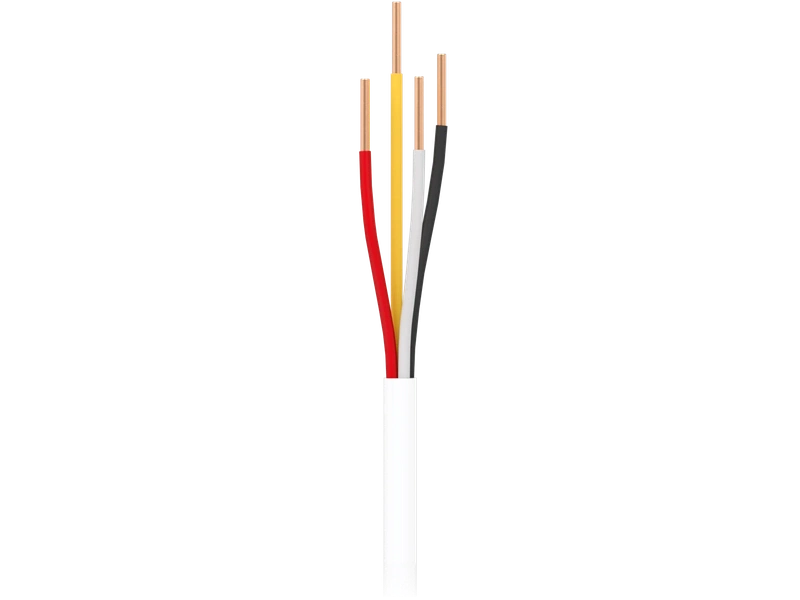

Number of Conductors	4 (2 pairs)
Conductor Gauge	18 AWG (black/red), 22 AWG (amber/white)
Conductor Material	Solid bare copper
Jacket Material	Thermoplastic elastomer (TPE)
Insulation Material	Semi-rigid polyvinyl chloride (SR-PVC)
Jacket Outer Diameter	4.5 mm (0.18")
Jacket Color	White
Supported Voltage Range	36V DC
Current Rating	18 AWG: 2A (500 ft) 22 AWG: 1A (500 ft)
Conductor DCR	18 AWG: 23.2 Ω/km 22 AWG: 59.4 Ω/km
Minimum Bend Radius	56 mm (2.2")
Pulling Tension	24.2 kgf
Weight	5.6 kg (12.3 lb)
Ambient Operating Temperature	-45 to 65° C (-49 to 149° F)
Ambient Storage Temperature	-45 to 65° C (-49 to 149° F)
Flame Rating	VW-1
Typical Applications	Electric/magnetic lock (18 AWG) Door position sensor (22 AWG)
Compatibility	UA-Lock-Magnetic, UA-Lock-Electric, UA-G2-SK, UA-G3-SK, UA-G2-SK-Pro, UA-G3-SK-Pro, UA-Hub-Door, UA-Hub-Door-Mini, UA-Hub-Gate, EAH-8
