Overview
Gate Starter Kit
UA-SK-Gate
Control a vehicle gate using the connected Intercom and authorize gate access with License Plate Unlock when paired with a compatible Protect AI camera.
Note. License Plate Recognition is supported on Protect AI Series cameras, excluding 360 lenses. Access integration for G6 Series coming soon
Optional LPR Cameras
UVC-AI-Turret
UVC-AI-LPR
UVC-AI-Dome
UVC-AI-DSLR
UVC-AI-Pro
UVC-AI-Theta
UVC-G6-Turret
UVC-G6-Bullet
UVC-G6-INS
UVC-AI-PTZ
UVC-G6-PTZ
UVC-AI-PTZ-Precision
Gate Starter Kit
UA-SK-Gate
Control a vehicle gate using the connected Intercom and authorize gate access with License Plate Unlock when paired with a compatible Protect AI camera.
Note. License Plate Recognition is supported on Protect AI Series cameras, excluding 360 lenses. Access integration for G6 Series coming soon
Optional LPR Cameras
UVC-AI-Turret
UVC-AI-LPR
UVC-AI-Dome
UVC-AI-DSLR
UVC-AI-Pro
UVC-AI-Theta
UVC-G6-Turret
UVC-G6-Bullet
UVC-G6-INS
UVC-AI-PTZ
UVC-G6-PTZ
UVC-AI-PTZ-Precision
| UA-SK-Gate Specifications | |
|---|---|
| Product Type | Vehicle Gate Access Starter Kit |

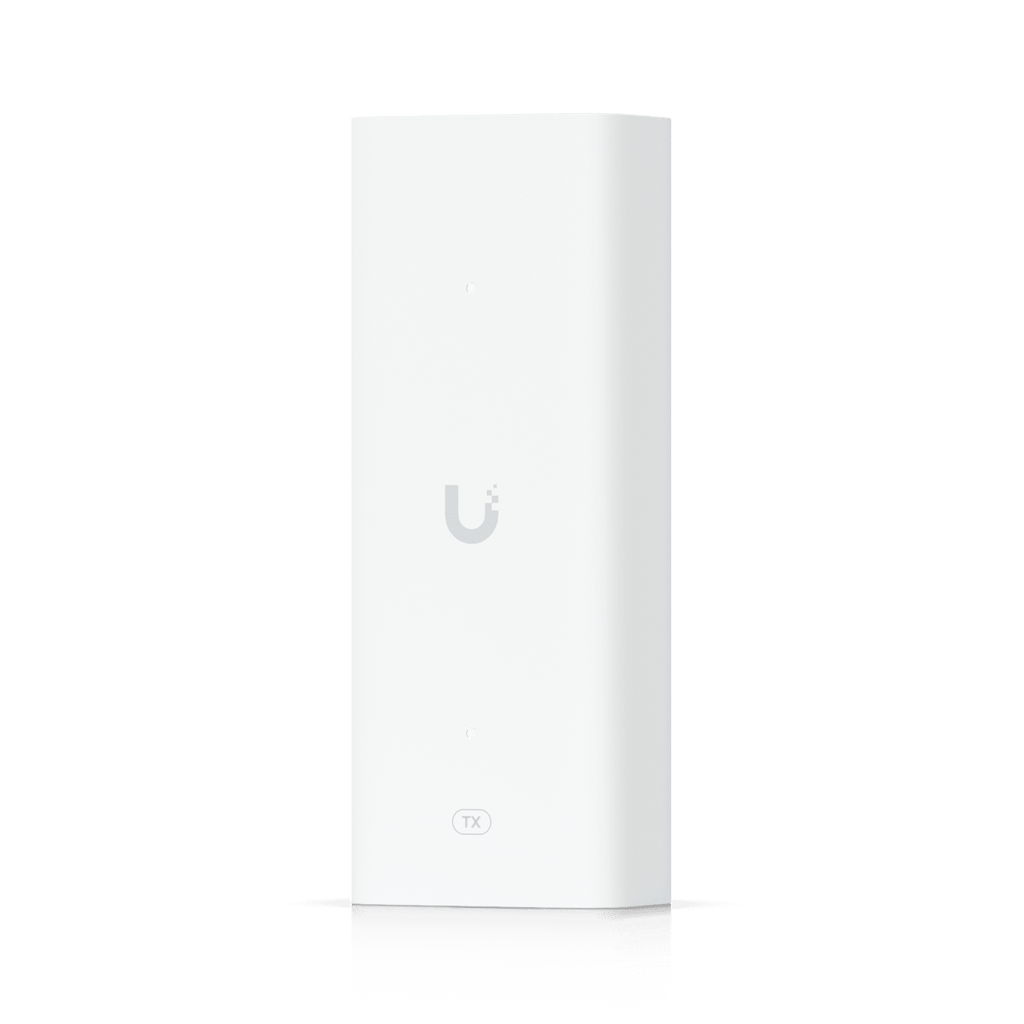

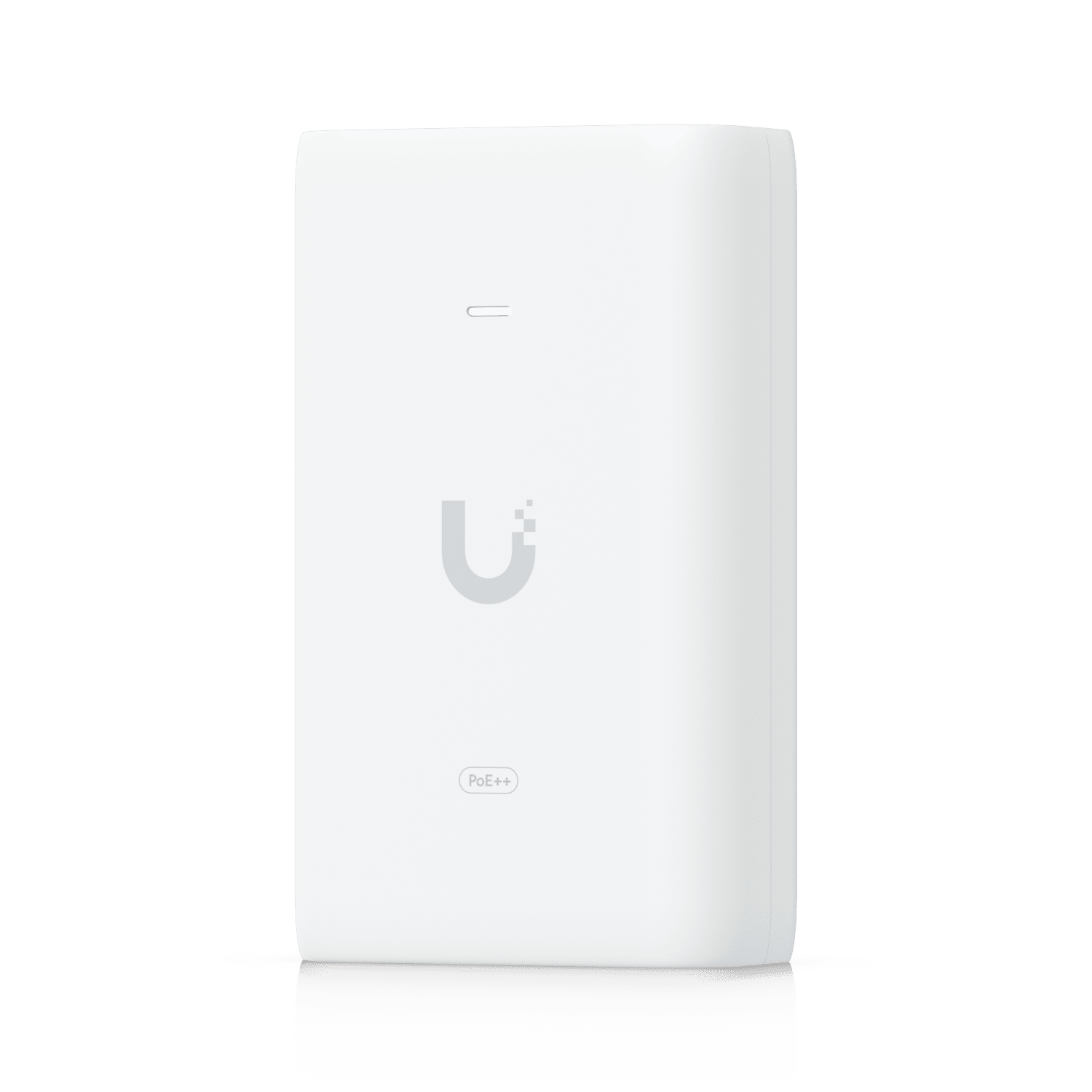

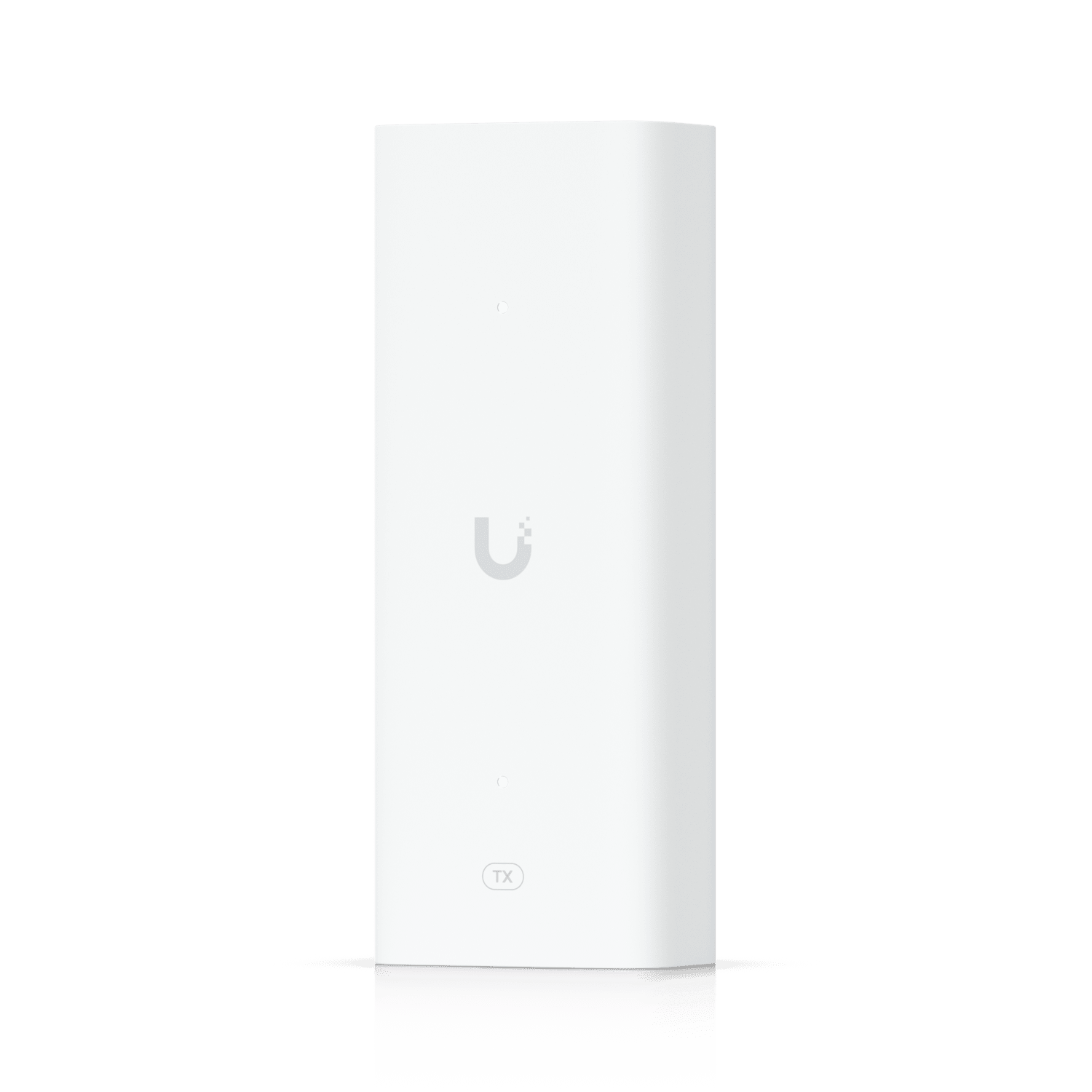

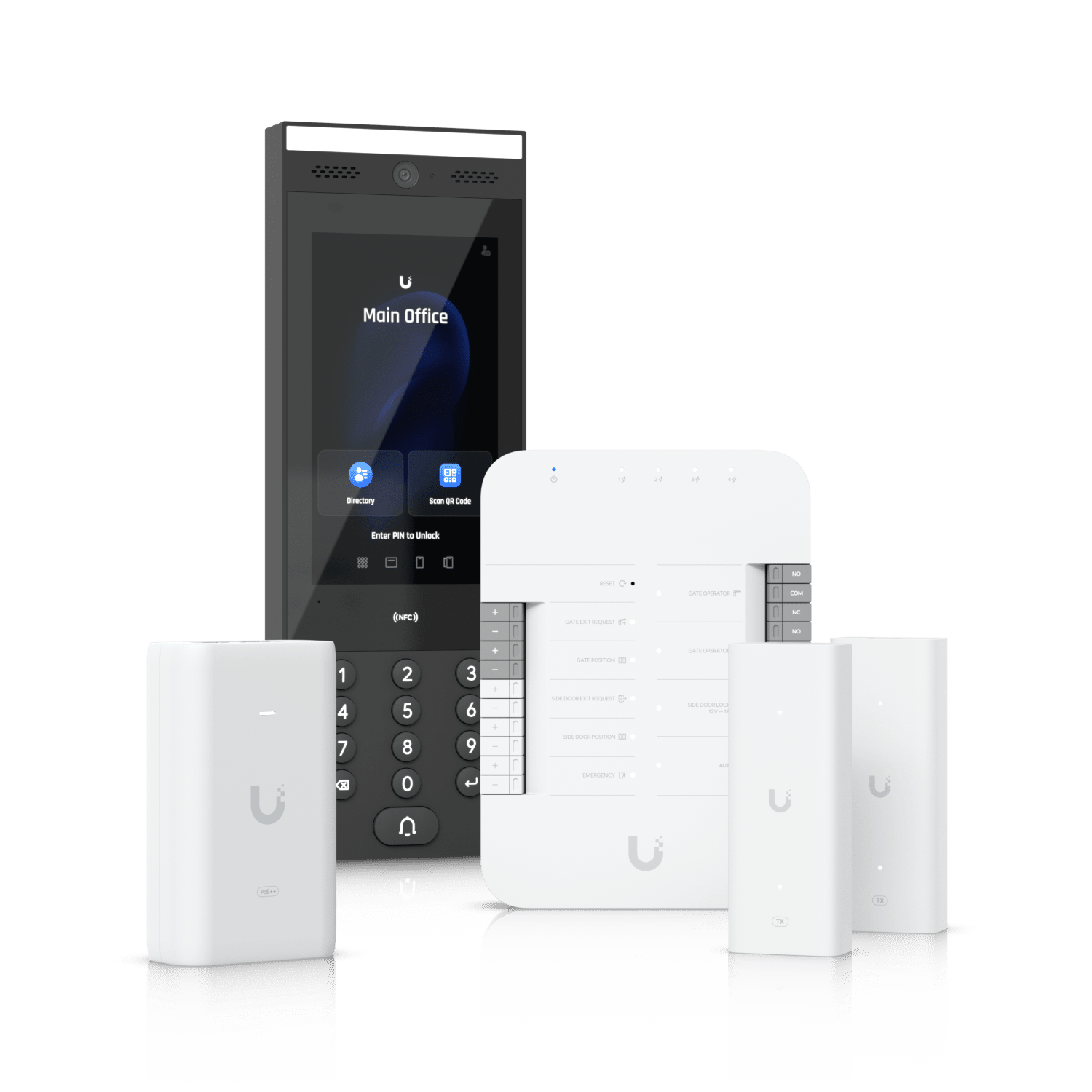

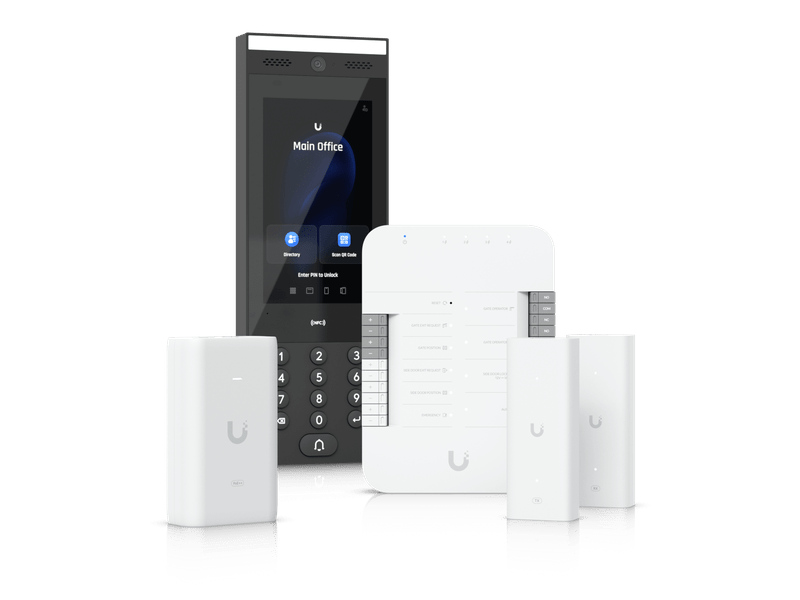

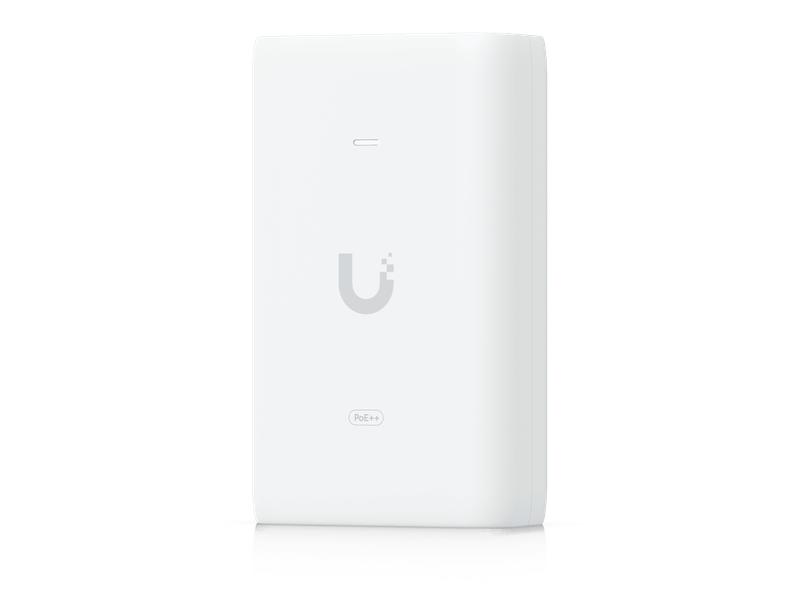

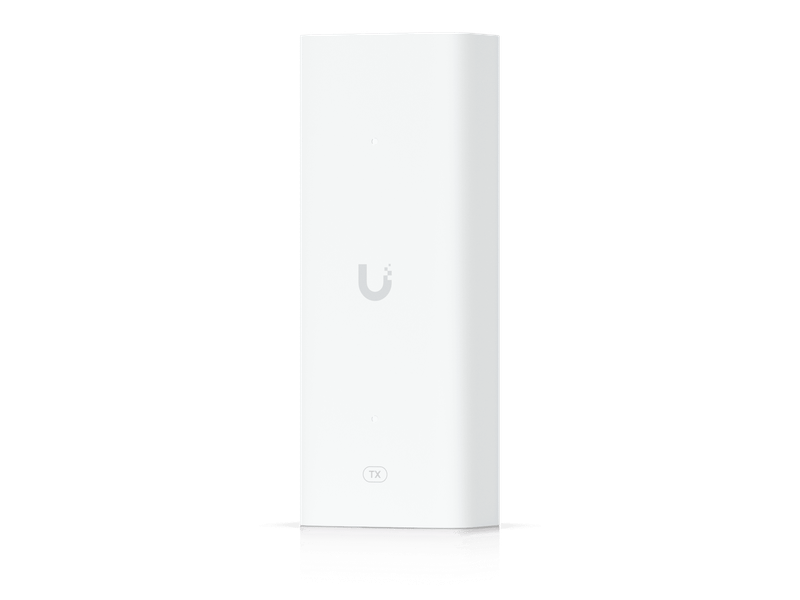

| Kit Components | (1) Gate Hub (1) Intercom (1) PoE++ Adapter (2) 2-wire PoE Extenders |
| Supported Access Points | 1 Gate + 1 Side Door |
| Authentication Methods | NFC Card & Keyfob PIN Access Mobile Unlock Two-Way Intercom License Plate Unlock (with compatible Protect AI cameras) |

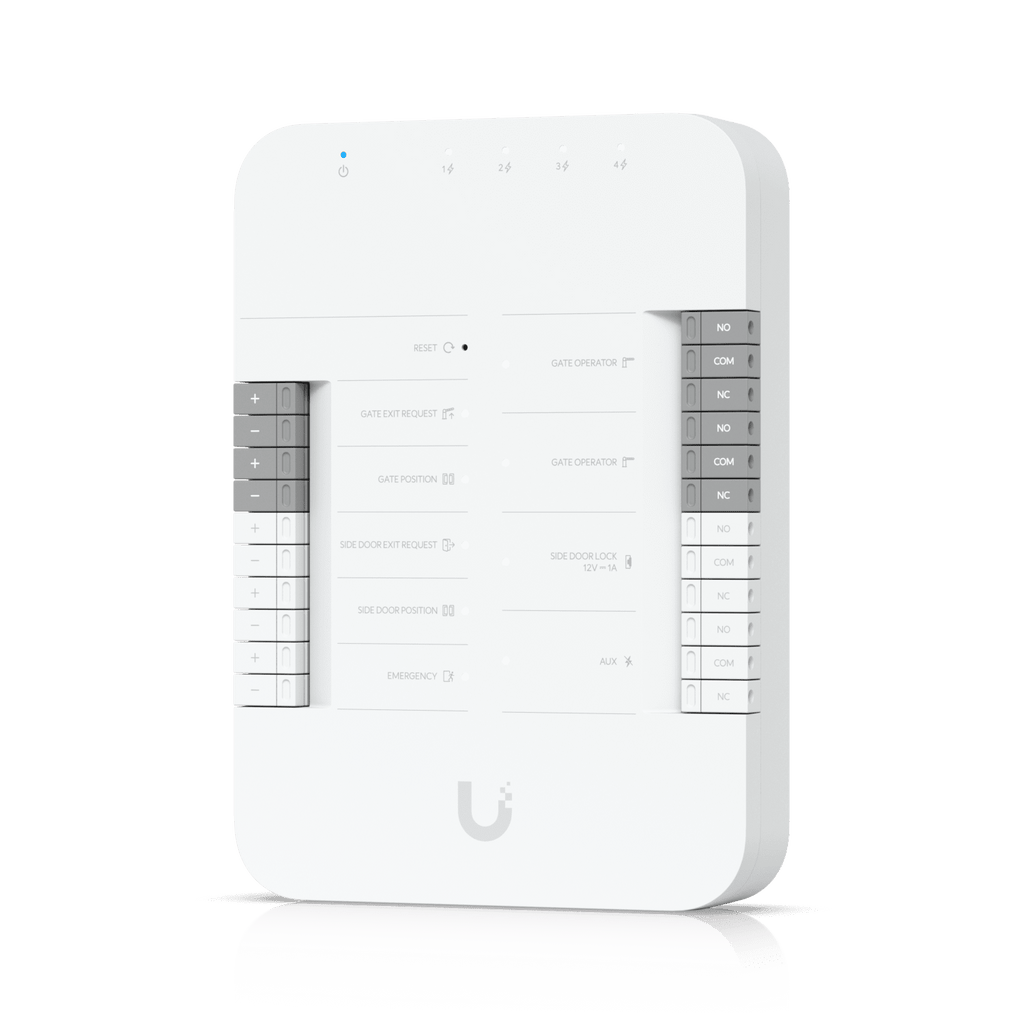

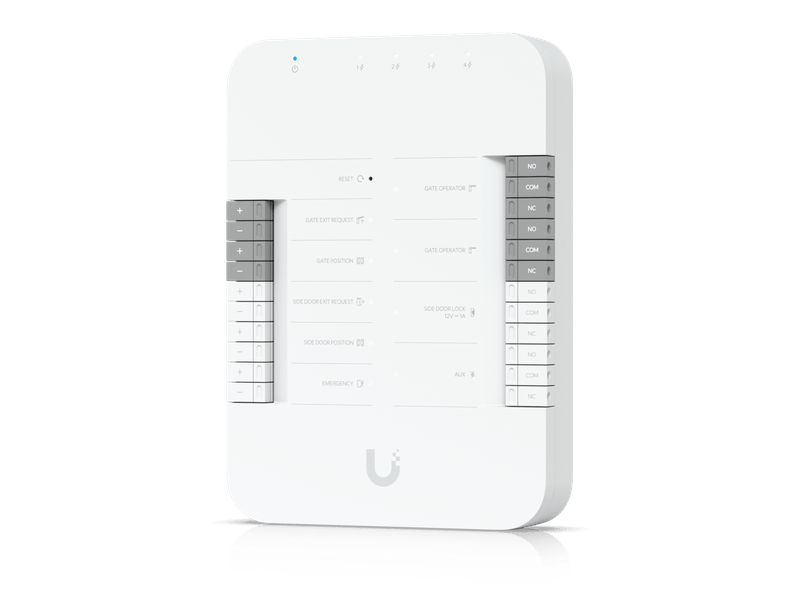

| Gate Hub Dimensions | 175 × 126 × 26 mm (6.9 × 5 × 1") |
| Gate Hub Weight | 460 g (1 lb) |
| Mounting | DIN-rail (included) |
| Enclosure Material | Polycarbonate |
| Networking Interface | (5) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 55W aggregated) |
| Max. Power Consumption | 22W (without PoE output) 60W (with PoE output) |
| Digital Inputs | Gate exit request Gate position Side door exit request Side door position Emergency |
| Dry Output Relays | (2) Operator: 30V DC, up to 1A (1) Aux: 30V DC, up to 1A |
| Powered Output Relay | Side door lock: 12V DC, up to 1A |
| LED Indicators | White / Blue |
| Button | Factory-reset |

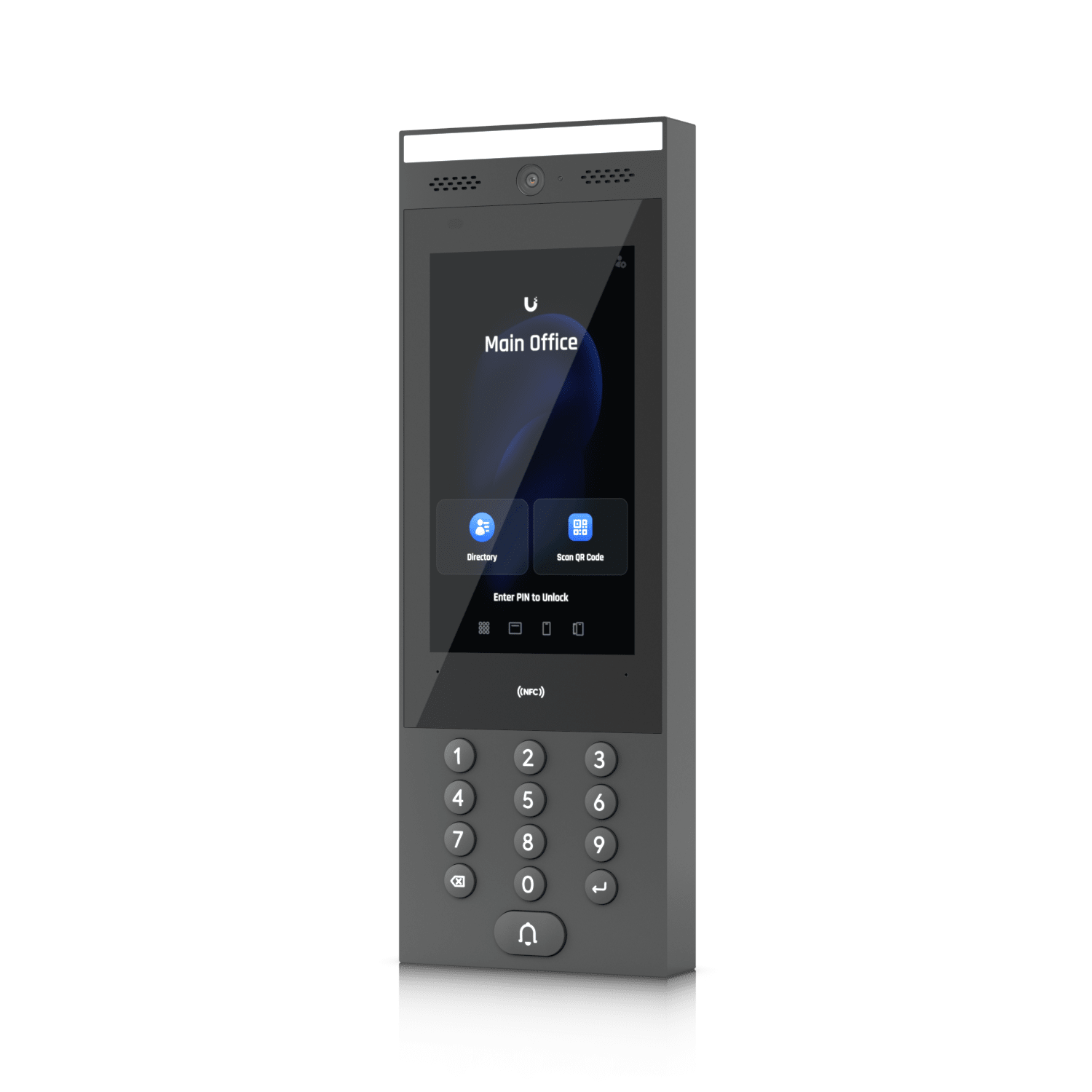

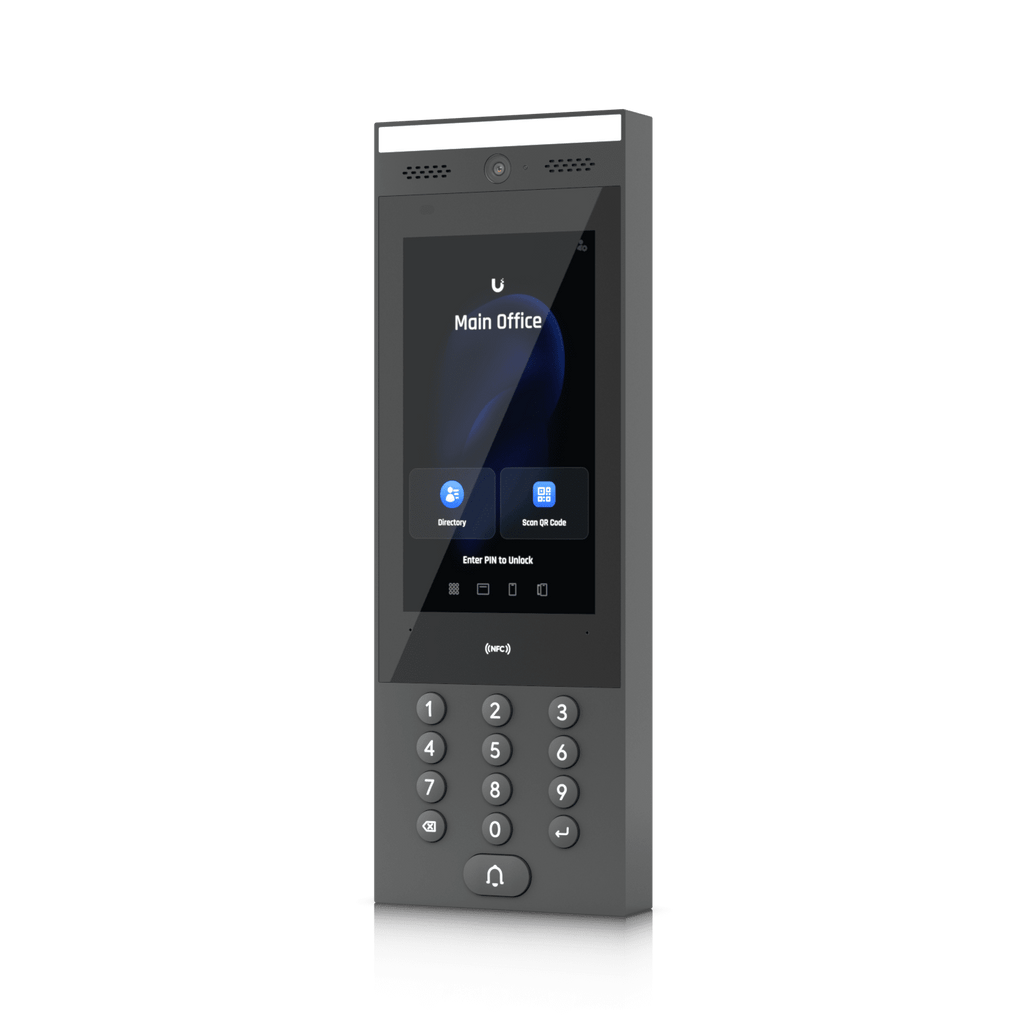

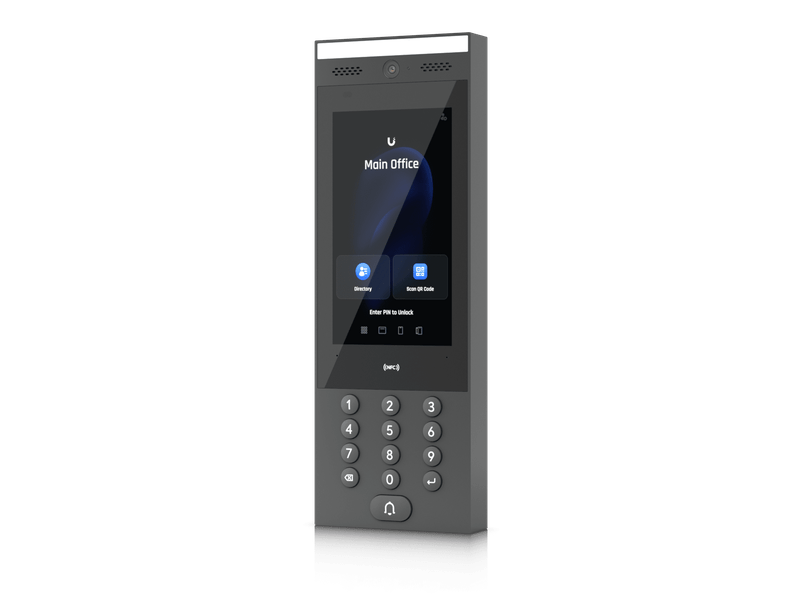

| Intercom Dimensions | 324.8 × 113.7 × 28.3 mm (12.8 × 4.5 × 1.1") |
| Camera | Integrated |
| Weatherproofing | IP65 |
| Operating Temperature | -30 to 60°C (-22 to 140°F) |
| Operating Humidity | 5 to 90% noncondensing |
| Indoor/Outdoor Use | Gate Hub: Indoor only Intercom: Outdoor (with waterproof junction box) |
| UL 294 Level | Destructive Attack: Level I Line Security: Level I Endurance: Level I Standby Power: Level I |
| CAN/ULC-60839-11-1 Grade | Grade I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| NDAA Compliant | ✓ |
