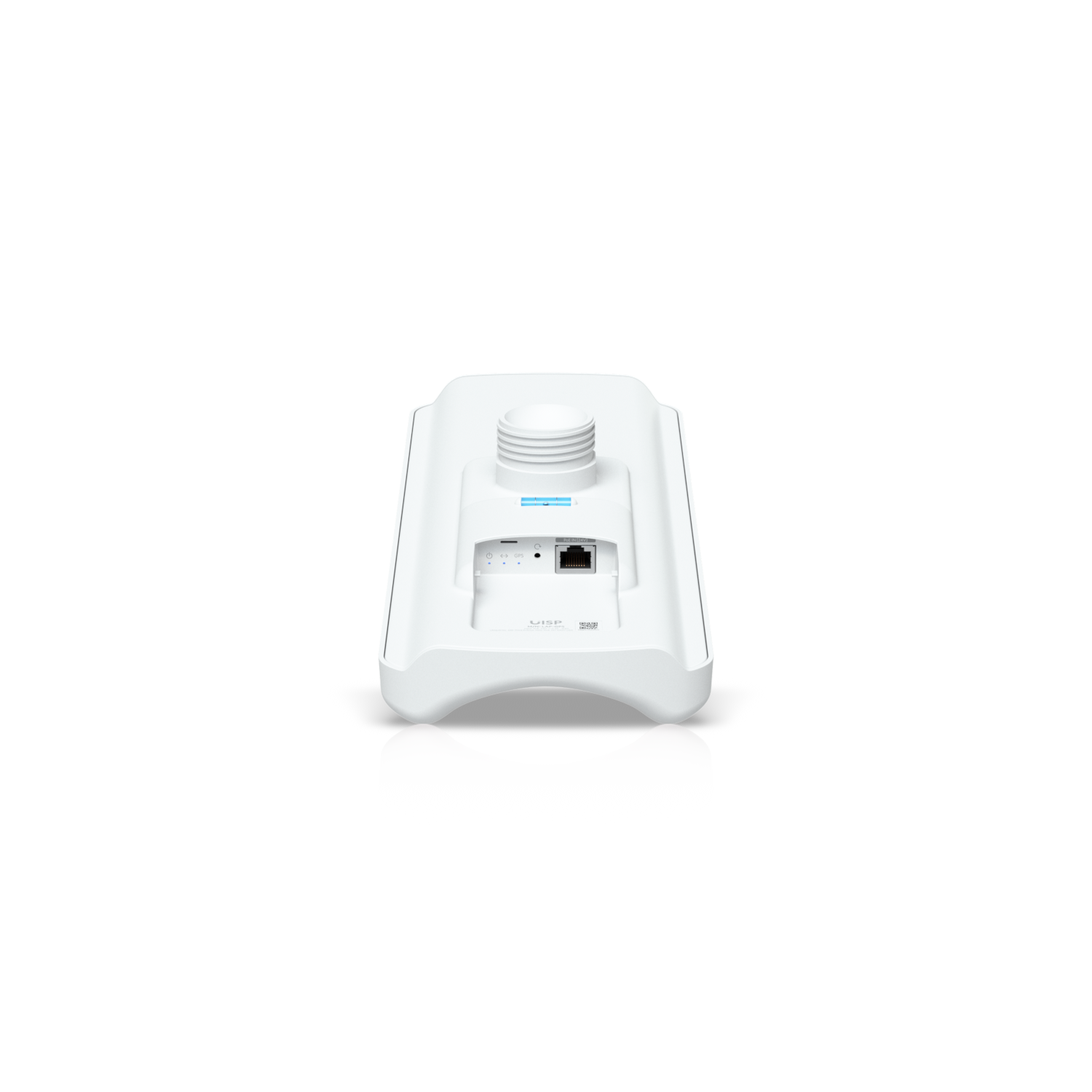

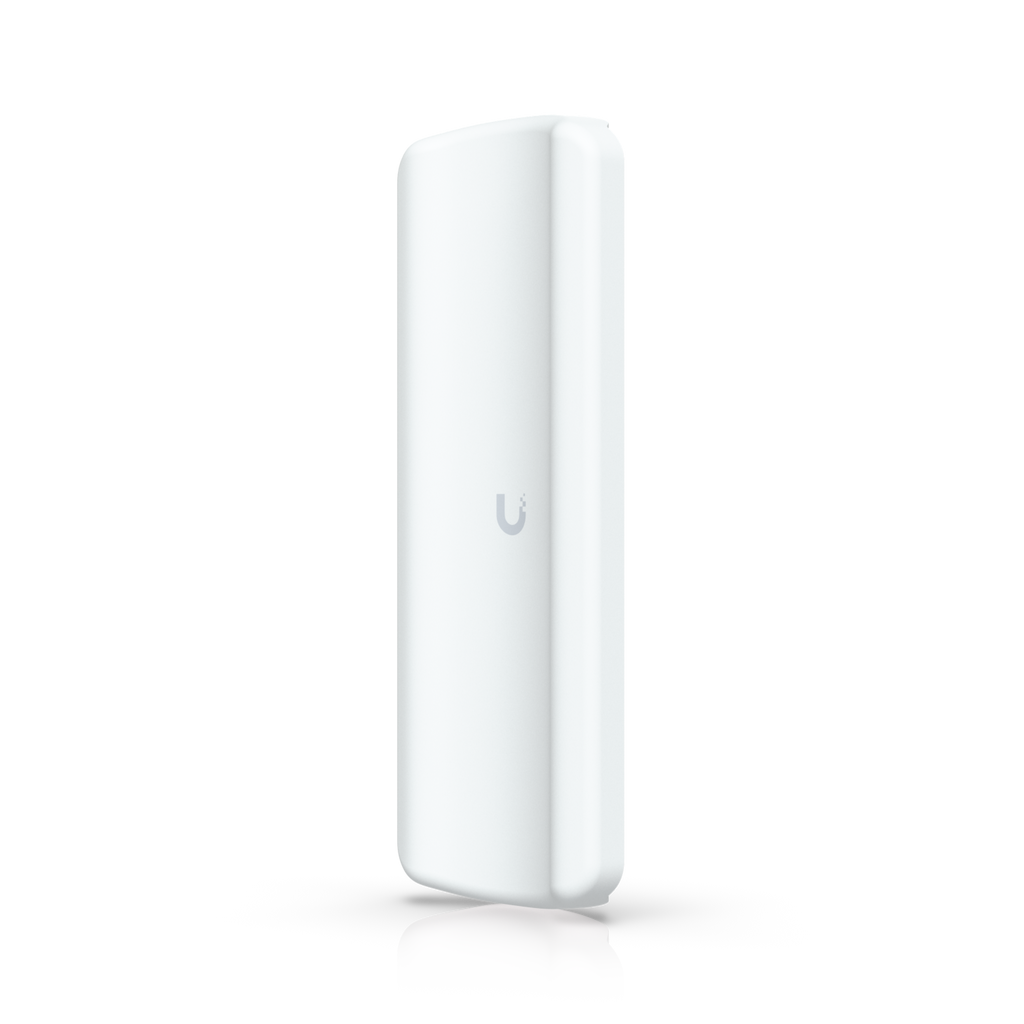

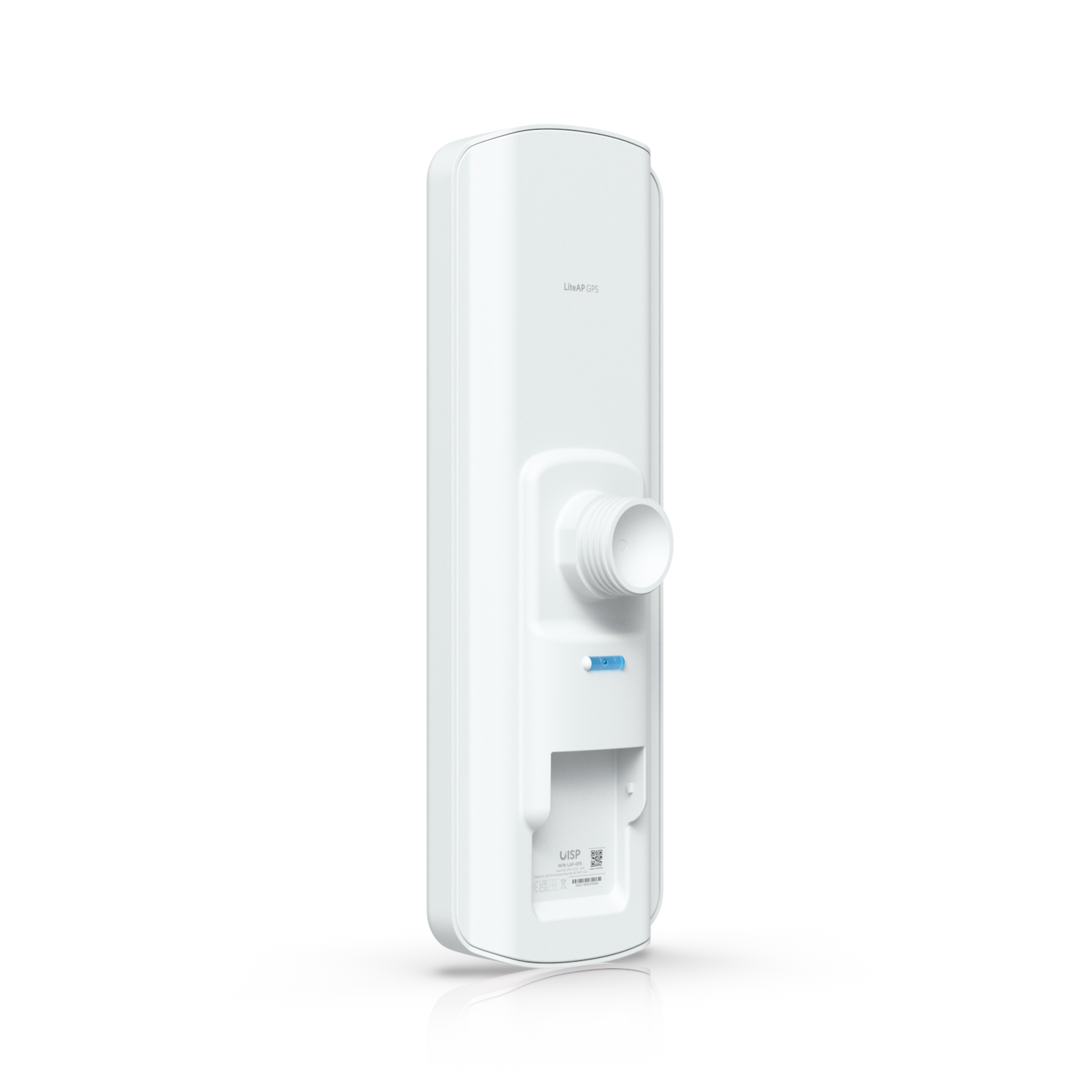

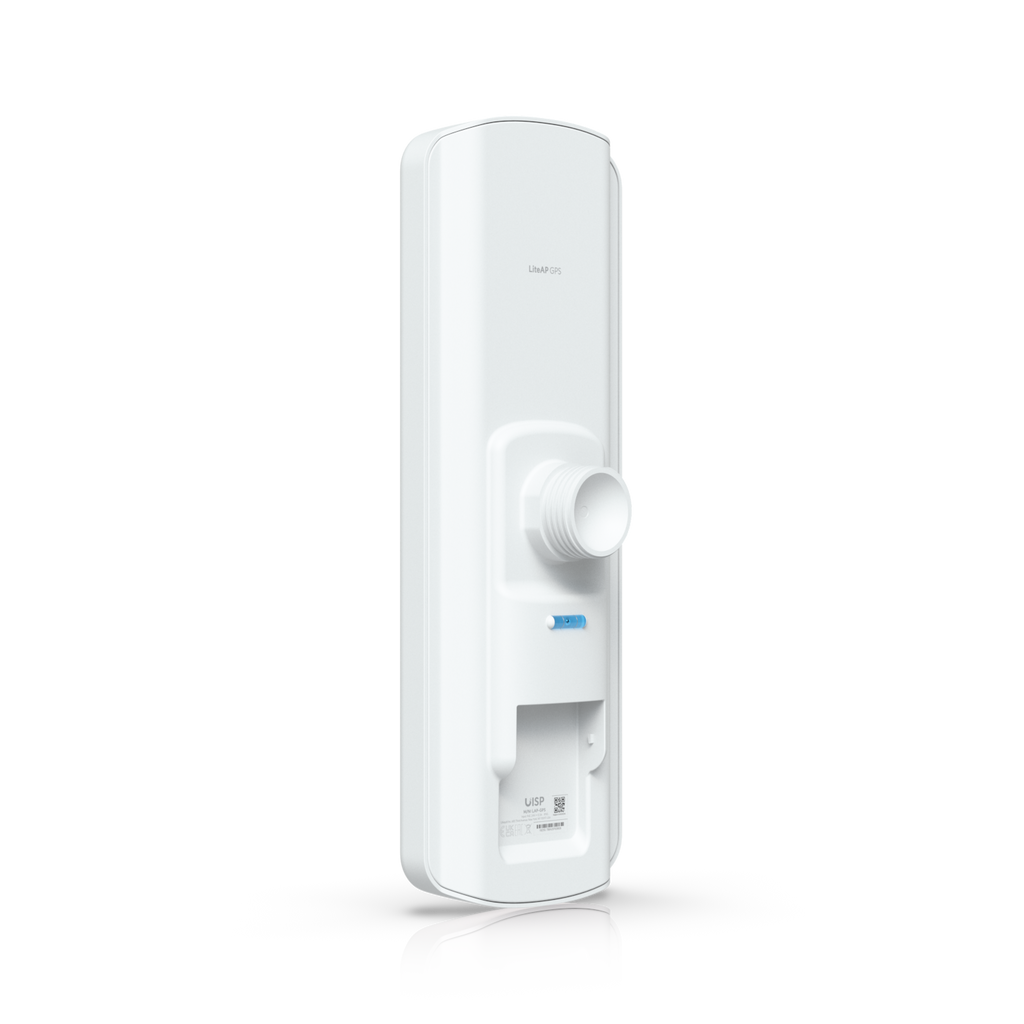

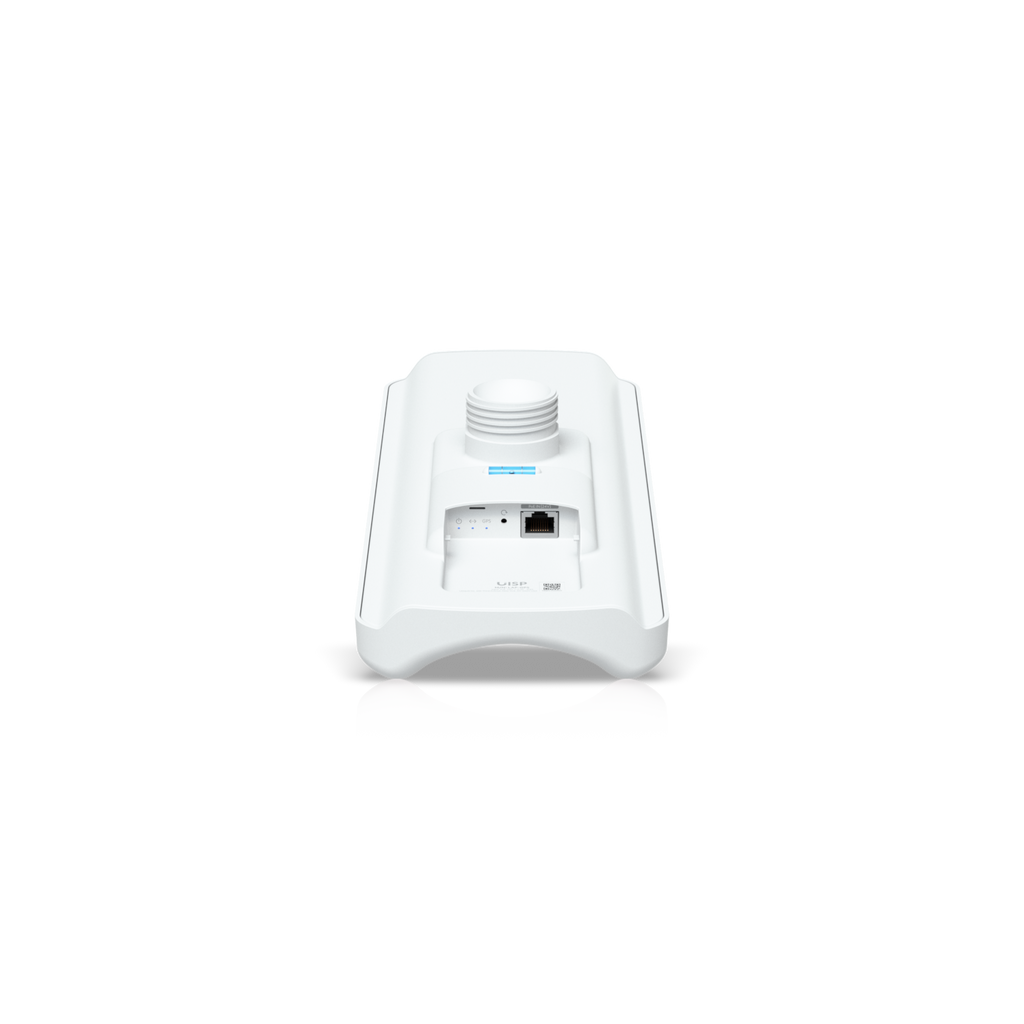

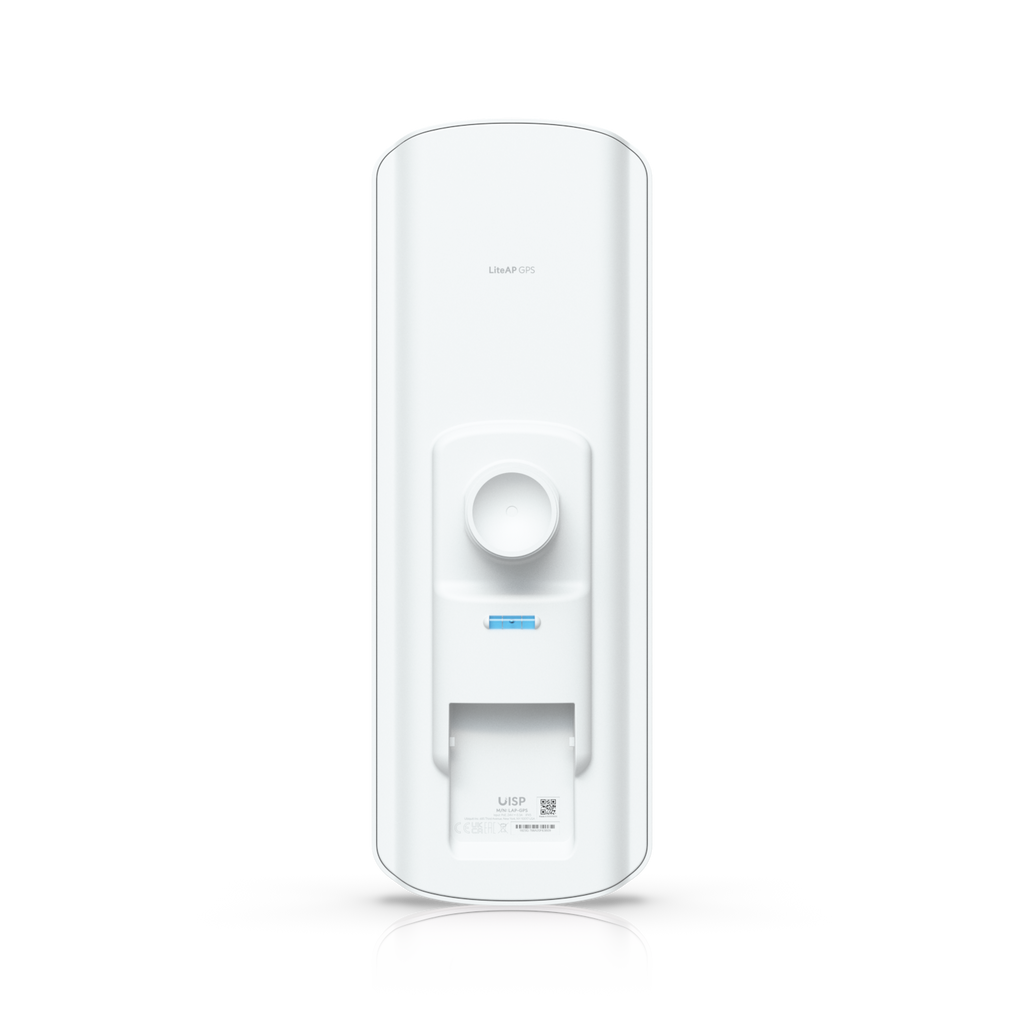

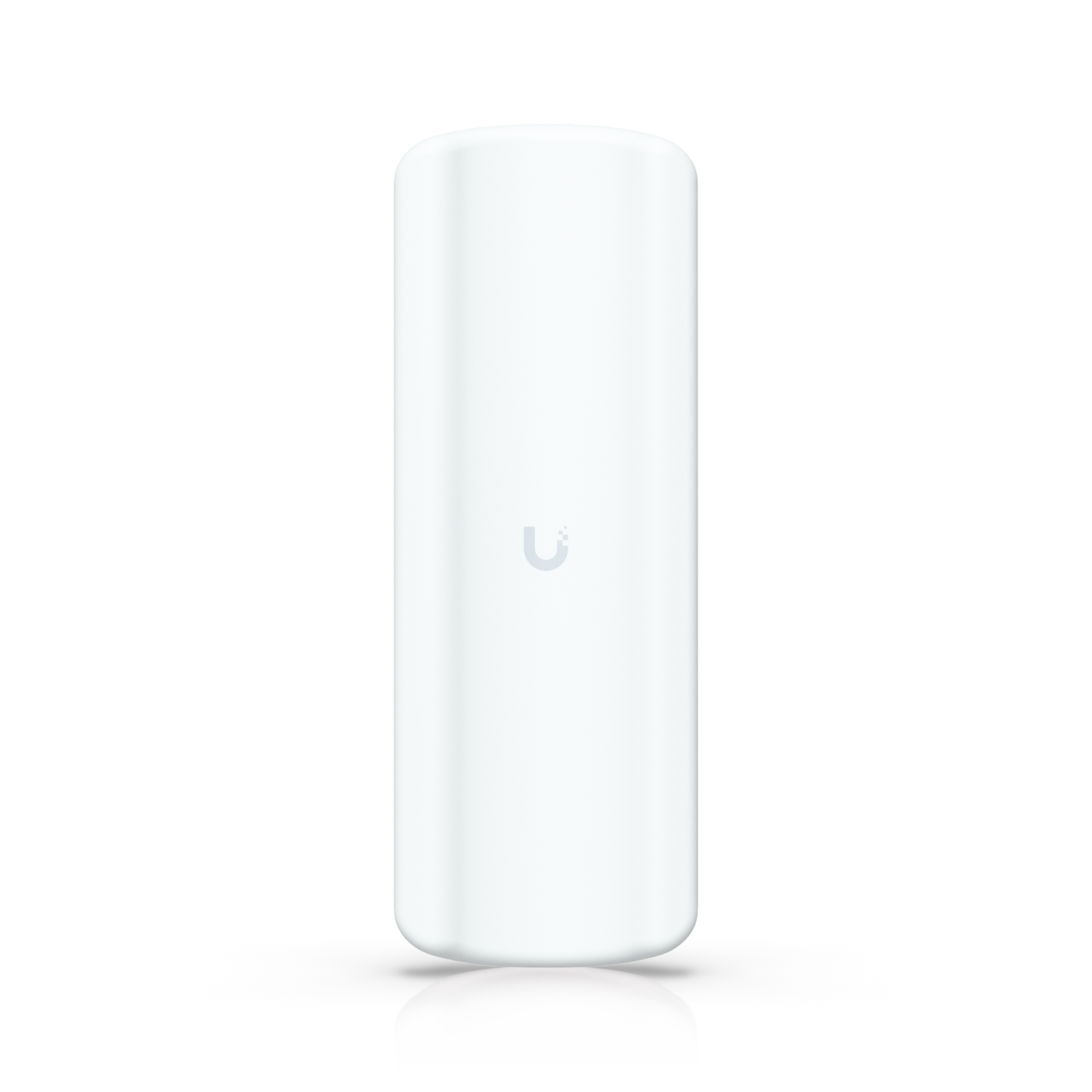

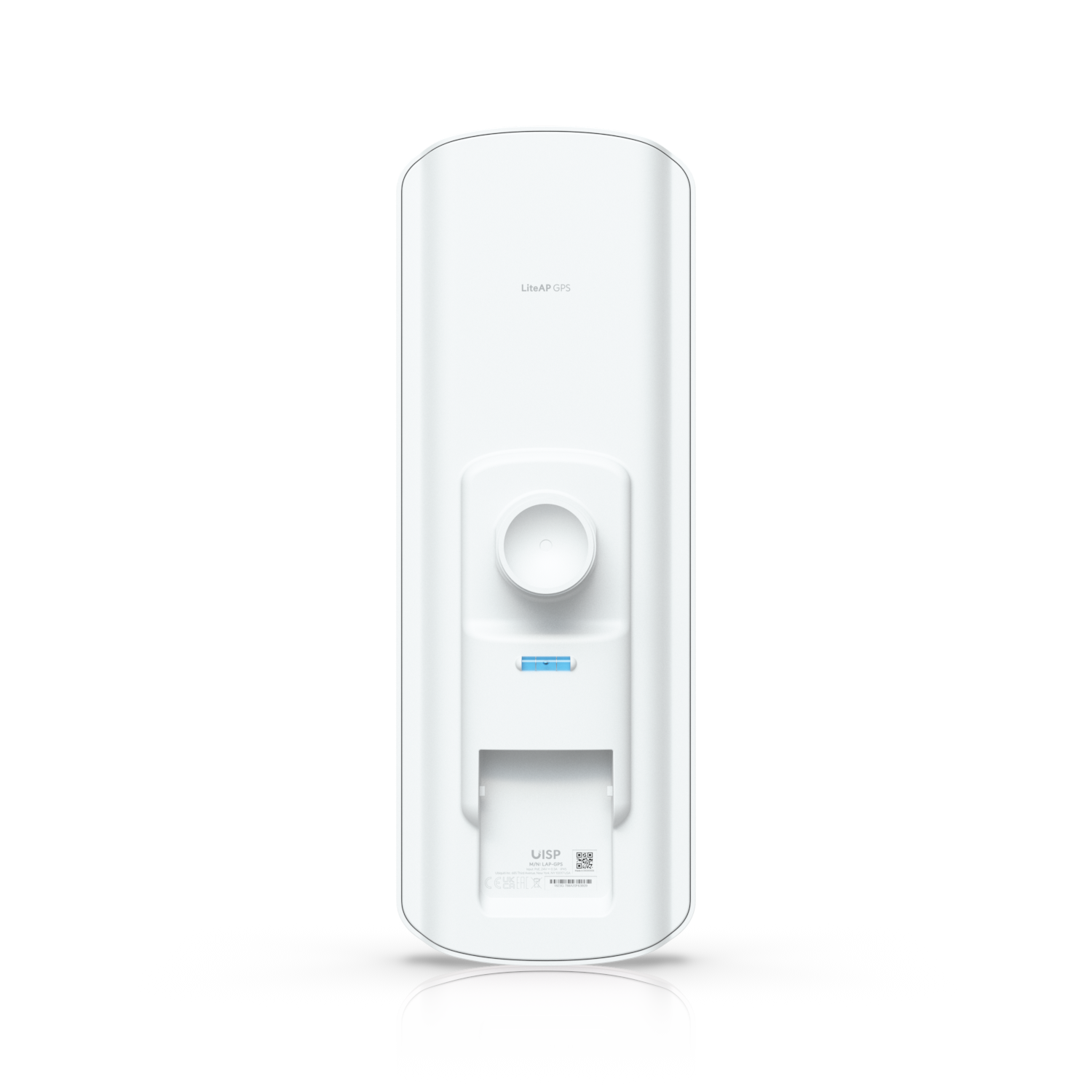

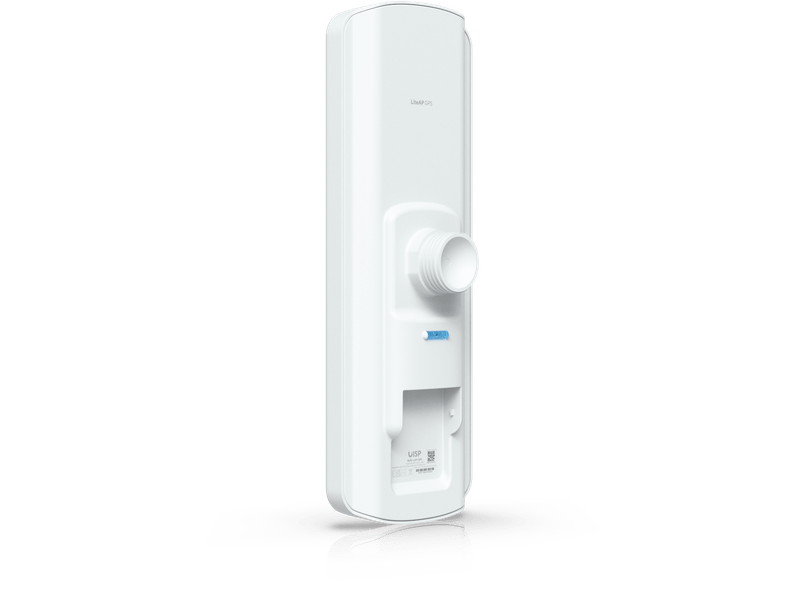

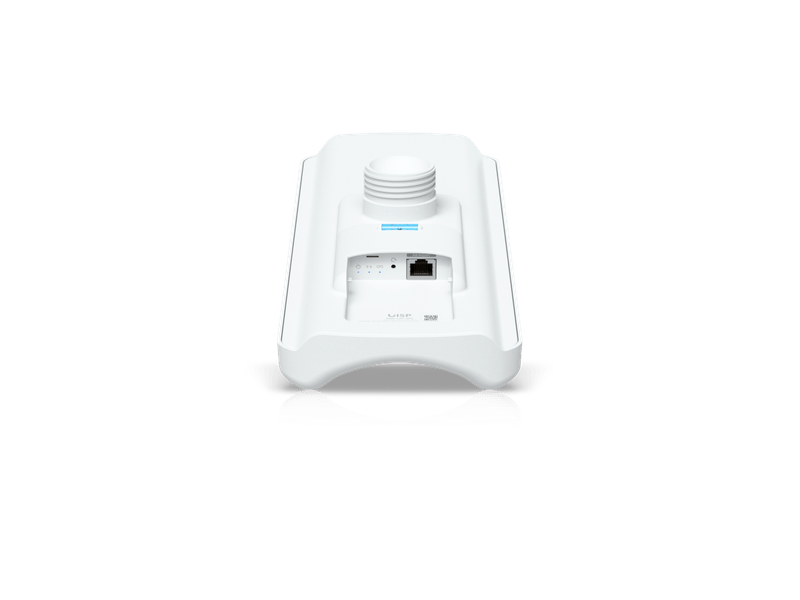

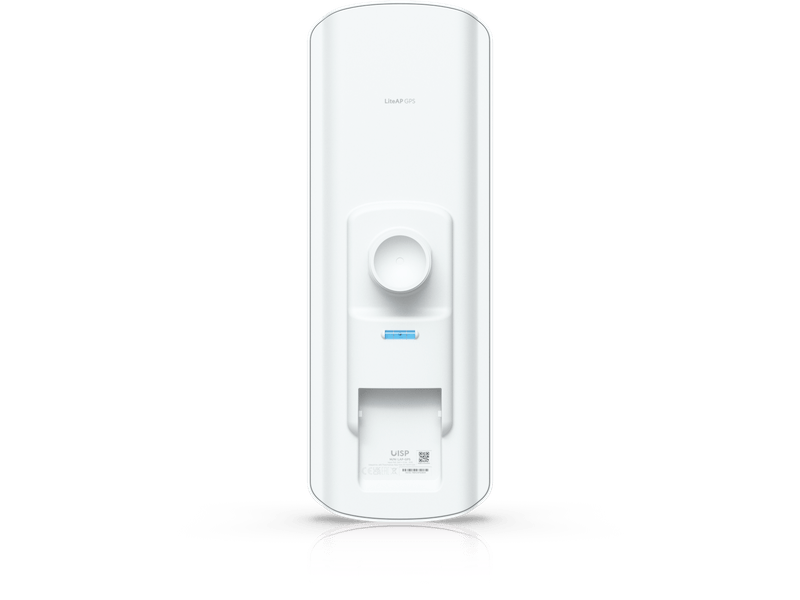

airMAX Lite AP GPS
LAP-GPS
Powerful and affordable 5 GHz sector access point. GPS synchronized units provide up to 450+ Mbps data throughput.
airMAX Lite AP GPS
LAP-GPS
Powerful and affordable 5 GHz sector access point. GPS synchronized units provide up to 450+ Mbps data throughput.
| LAP-GPS Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 360.98 × 124.57 × 71.28 mm (14.21 × 4.90 × 2.81") |
| Weight | Not specified (mount excluded) |
| Enclosure Material | UV-stabilized plastic |
| Mounting | Pole mount (kit included) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 77 N @ 200 km/h (17.3 lbf @ 125 mph) |
| Hardware | |
| Networking Interface | (1) 10/100/1000 Mbps Ethernet port |
| Antenna Gain | 17 dBi |
| Max TX Power | 25 dBm |
| Power Method | Passive PoE (Pairs 4,5+; 7,8−) |
| Power Supply | 24V DC, 0.3A Gigabit PoE adapter (included) |
| Voltage Range | 20–26V DC |
| Max Power Consumption | 7.1W |
| ESD/EMP Protection | ±24kV (air/contact) |
| Shock & Vibration | ETSI300-019-1.4 |
| RF & Software | |
| Operating Frequency | US/CA: 5150–5250, 5250–5350, 5470–5725, 5725–5850 MHz Worldwide: 5150–5875 MHz |
| Channel Widths | PtP: 10/20/30/40/50/60/80 MHz PtMP: 10/20/30/40 MHz |
| Management Radio | US/CA: 2412–2462 MHz Worldwide: 2412–2472 MHz |
| Operating Mode | Access Point (PtMP) |
| Software Platform | airOS® v8 |
| Security | WPA2 AES |
| Management Tools | UNMS mobile app, airView®, airMagic®, RF diagnostics, spectrum analyzer, channel selection, ACK timing |
| Environmental | |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Compliance | |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
