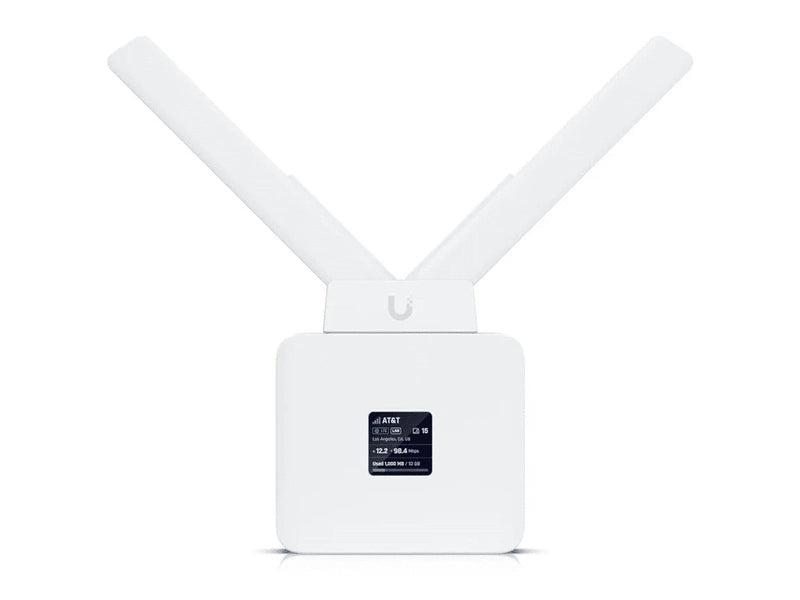

Mobile Router
UMR
Managed mobile WiFi router that brings plug-and-play connectivity to any environment. Use the pre-installed AT&T nano-SIM with three data plan options for LTE data, or bring your own AT&T nano-SIM.
Note. Works with the AT&T network in the United States. LTE data plan options with the pre-installed AT&T SIM are $15/month for 1 GB, $30/month for 5 GB, or $70/month for 20 GB of data, plus $15 for each additional GB. Bring your own AT&T SIM with device version 1.5.0 and later; update out-of-the-box using the pre-installed SIM's free trial or with wired WAN.
Mobility Cloud offers secure remote access and full management through the UniFi Mobility Portal for $2/month per Mobile Router. Mobility Cloud is not required when using your own nano-SIM. Basic management, such as WiFi configuration, is always available with local access through the UniFi mobile app when connected to a Mobile Router’s WiFi.
PoE+ input required for PoE passthrough.
The UMR series is a standalone mobile router, manageable via WiFi, Ethernet, or remotely with an optional Mobility Cloud subscription (mobility.ui.com), no UniFi Console required.
Mobile Router
UMR
Managed mobile WiFi router that brings plug-and-play connectivity to any environment. Use the pre-installed AT&T nano-SIM with three data plan options for LTE data, or bring your own AT&T nano-SIM.
Note. Works with the AT&T network in the United States. LTE data plan options with the pre-installed AT&T SIM are $15/month for 1 GB, $30/month for 5 GB, or $70/month for 20 GB of data, plus $15 for each additional GB. Bring your own AT&T SIM with device version 1.5.0 and later; update out-of-the-box using the pre-installed SIM's free trial or with wired WAN.
Mobility Cloud offers secure remote access and full management through the UniFi Mobility Portal for $2/month per Mobile Router. Mobility Cloud is not required when using your own nano-SIM. Basic management, such as WiFi configuration, is always available with local access through the UniFi mobile app when connected to a Mobile Router’s WiFi.
PoE+ input required for PoE passthrough.
The UMR series is a standalone mobile router, manageable via WiFi, Ethernet, or remotely with an optional Mobility Cloud subscription (mobility.ui.com), no UniFi Console required.
Device Specifications | |
---|---|
Dimensions | 190 × 89.8 × 28.8 mm (7.4 × 3.5 × 1.1") |
Networking Interface | (2) GbE RJ45 ports, LTE Cat 4 radio, WiFi 4 |
SIM | Pre-installed AT&T nano SIM |
LTE Bands | B2, B4, B5, B12, B14, B66 |
PoE Interface | (1) PoE input (1) PoE output (Max. 10W, requires PoE+ switch) |
Mounting | DIN rail, Wall (Mounts Included) |
Weight | Without mount: 257 g (9.1 oz) With mount: 303 g (10.7 oz) |
Enclosure Material | Polycarbonate, aluminum alloy |
Mount Material | Polycarbonate |
WAN Priority & Fallback | ✓ |
Cellular | ✓ |
Ethernet | ✓ |
LTE Passthrough Mode | ✓ |
Ethernet Bridge Mode | ✓ |
VPN Client | OpenVPN ✓, WireGuard ✓ |
Site-to-Site VPN | IPsec ✓, WireGuard ✓ |
WiFi Standard | WiFi 4 |
Port Forwarding | ✓ |
Firewall | ✓ |
Static Routes | ✓ |
802.11b Data Rates | 1, 2, 5.5, 11 Mbps |
802.11g Data Rates | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11n Data Rates | 6.5 Mbps to 150 Mbps (MCS0–MCS7, HT 20/40) |
Management | Ethernet, WiFi |
LTE Throughput Speed | Download 150 Mbps / Upload 50 Mbps |
GPS | ✓ |
Antennas | (1) External LTE antenna (TS9 male) (1) Internal WiFi (1) Internal GPS |
Max. TX Power | 19 dBm |
WiFi MIMO | 1 × 1 |
Max. Power Consumption | 9W |
Power Method | PoE+ (48–54V DC) USB Type-C (5V DC, 3A) 4-pin ATX DC (9V DC, 1A) |
Power Supply | USB Type-C, 5V DC, 3A (Adapter included) |
Display | 1.3" touchscreen |
Buttons | (1) Factory-reset |
Operating Temperature | -20 to 45° C (-4 to 113° F) |
Operating Humidity | 5 to 95% noncondensing |
NDAA Compliant | ✓ |
Certifications | FCC, IC, PTCRB, AT&T |
