Ubiquiti Networks USW-Pro-Aggregation 28-Port SFP Switch

UbiquitiSKU: USW-Pro-Aggregation

Ubiquiti Pro Aggregation SFP+ Switch, 24x SFP+ Ports, 4x SFP28 Ports, Up to Layer 3 Management

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$1,696.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

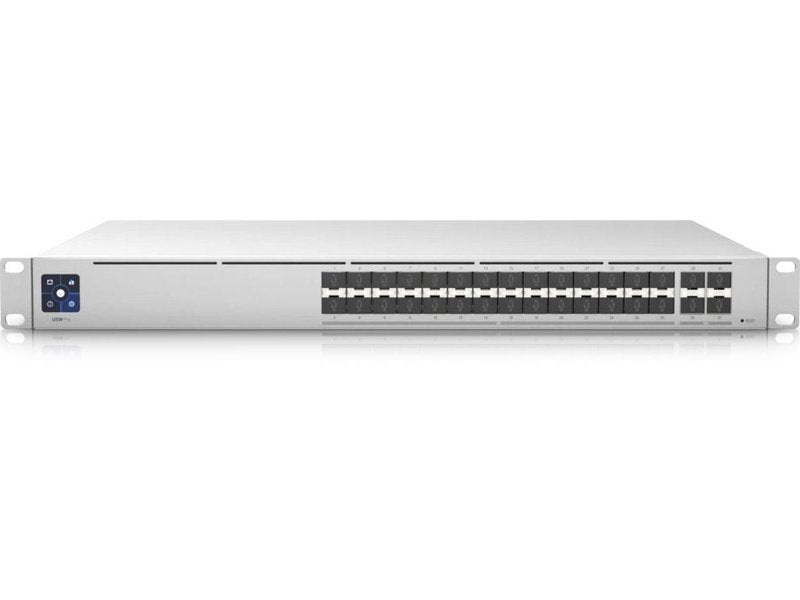

Ubiquiti UniFi USW-Pro-Aggregation 28-Port 10G SFP+ & 4-Port 25G SFP28 Aggregation Layer 3 Switch

Hi-Capacity Aggregation

USW-Pro-Aggregation


Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Aggregation-Pro, is a configurable 10G ber Layer-3 switch. It offers 28 10G SFP+ fiber links to your devices and 4 25G SFP28 fiber uplink options to your enterprise network.

The USW-Aggregation-Pro features a 1.3" touch LCM. The LCM provides current switch states and the necessary information you need for a quick diagnosis.

Managed and configured by the UniFi Controller with UniFi Mobile app support, the UniFi Switch offers an extensive suite of advanced Layer-3 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port, Inter-VLAN routing, static routing, and DHCP server. The UniFi Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

RPS DC input is a new feature on USW-Aggregation-Pro, this DC input provides redundant power when the switch is connected to USP-RPS (UniFi Smart Power RPS) via RPS DC input. When the switch's internal PSU is off, the Switch function can keep working by backup power from the USP-RPS input port.

FEATURES

  • 1.3” LCM color touchscreen with AR switch management
  • 28 x 10G SFP+ ports
  • 4 x 25G SFP28 ports
  • 1 x USP RPS DC input
  • 760 Gbps switching capacity
  • Layer 3 switching features

Specifications

Mechanical
Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Weight Without mounting brackets: 4.6 kg (10.1 lb)
With mounting brackets: 4.7 kg (10.4 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (28) 1/10G SFP+ ports
(4) 1/10/25G SFP28 ports*
*The four SFP28 ports don't support mixed speed at 25 Gbps mode. Once one of the SFP28 ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. The SFP28 ports only support mixed speed when all ports are at 1 Gbps or 10 Gbps.
Total non-blocking throughput 380 Gbps
Switching capacity 760 Gbps
Forwarding rate 565.44 Mpps
Power method (1) Universal input, 100—240V AC, 2A Max., 50/60 Hz
(1) USP RPS DC input, 11.5V DC, 8.7A
Power supply AC/DC, internal, 100W
Supported voltage range 100—240V AC
Max. power consumption 100W
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
Services SMB Layer 3 10/25 G Fiber switch
LCM display (1) 1.3" LCM color touchscreen
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
SFP28/SFP+ Link/activity
Application Requirements
UniFi Network Version 6.1.25 and later
