Description

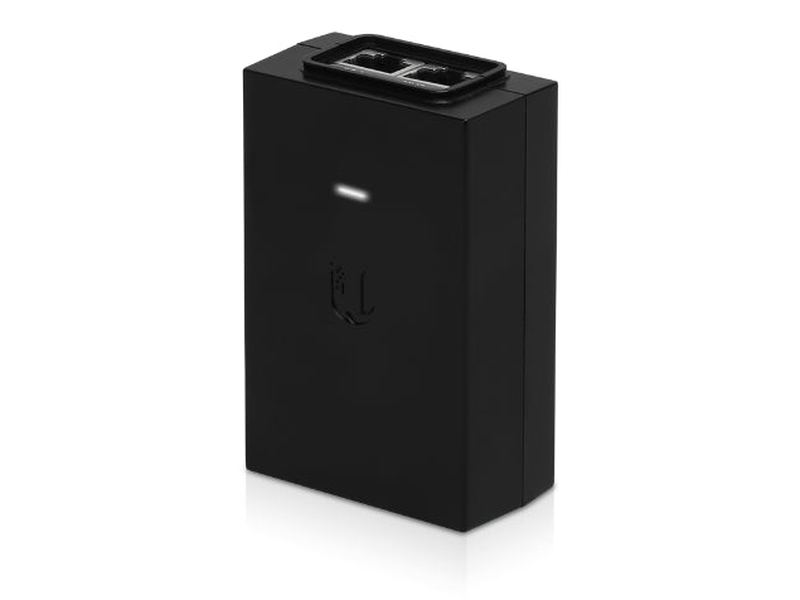

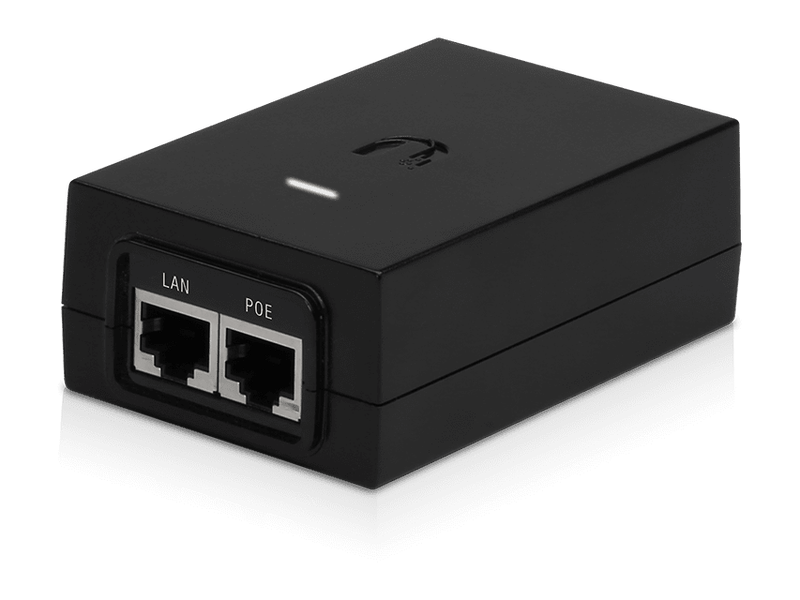

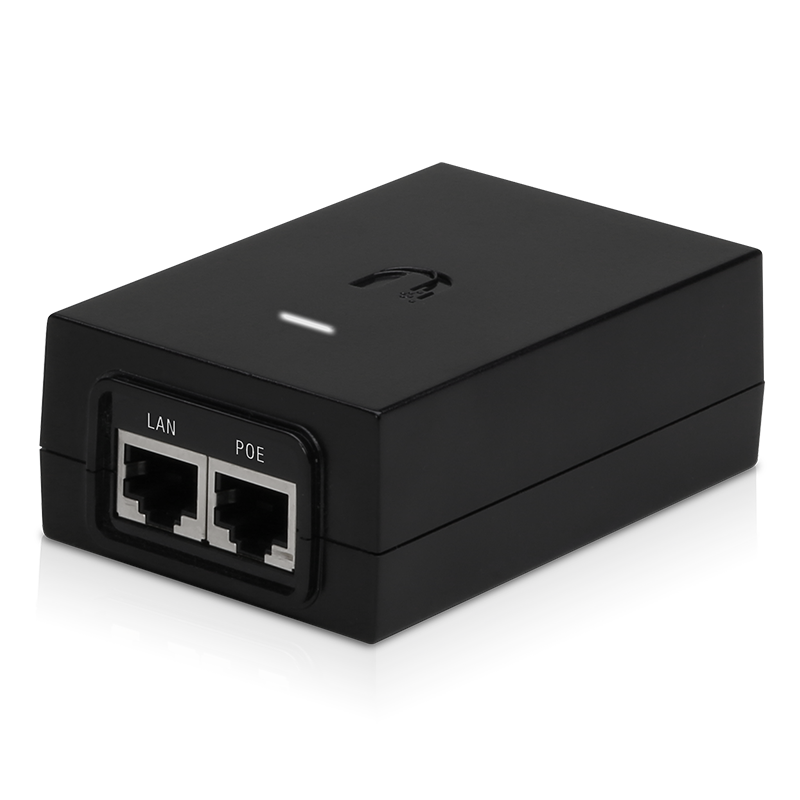

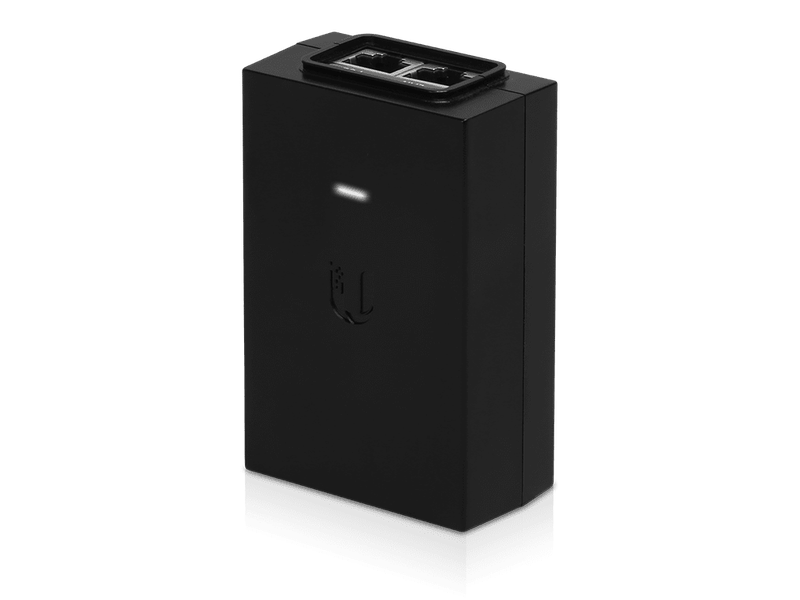

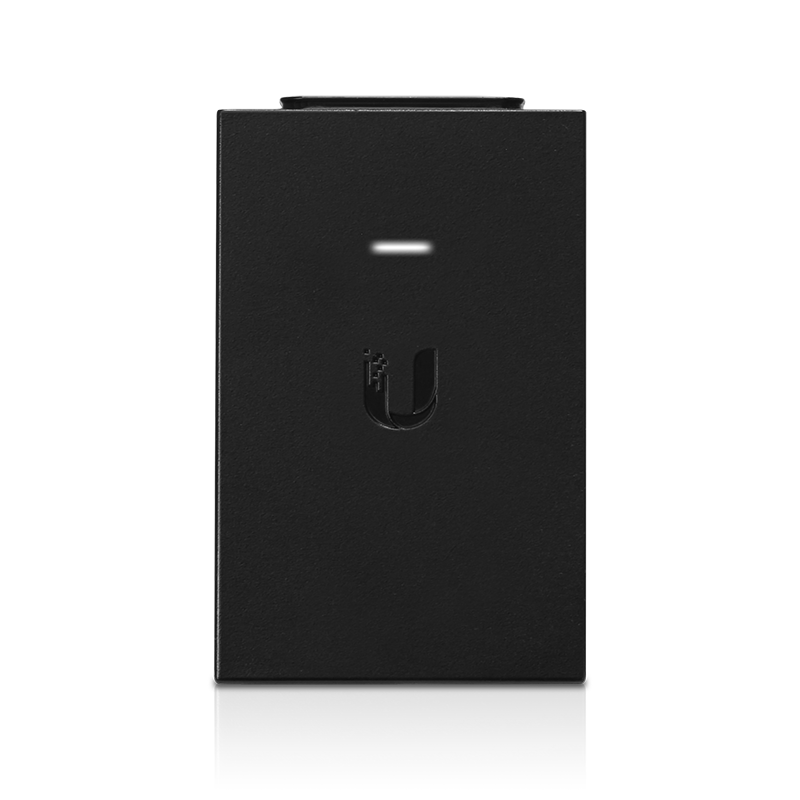

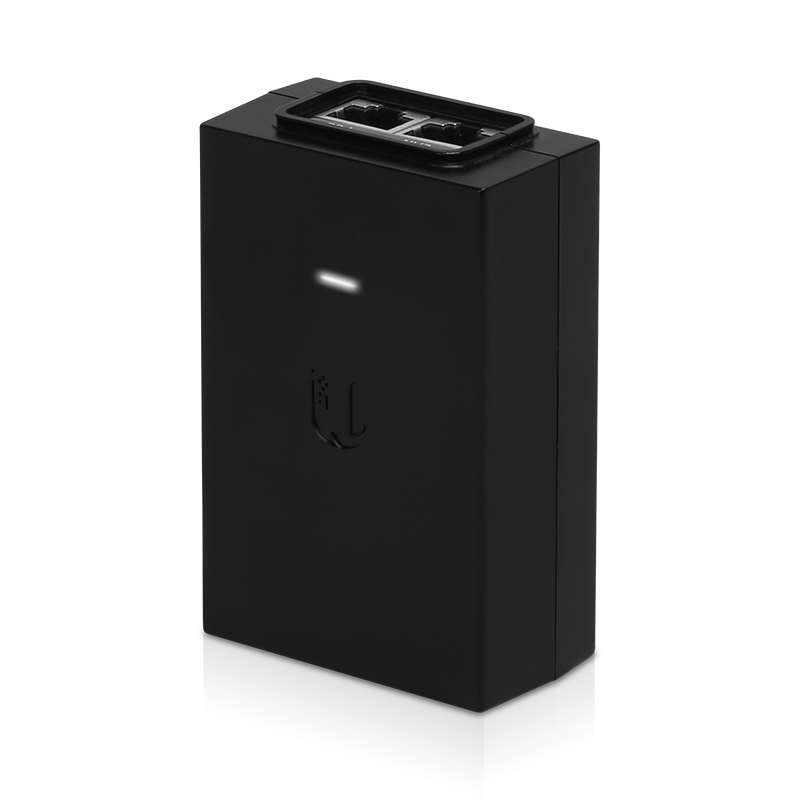

Ubiquiti PoE Injector, 24VDC, 24W, Surge& Clamping Protection, Maximum Surge Discharge, Peak Pulse Current, Earth Ground AC Cable
Specifications | |
---|---|
Dimensions | 88 × 57 × 33 mm (3.5 × 2.2 × 1.3") |
Weight | 159 g (5.6 oz) |
Output Voltage | 24V DC @ 1.0A |
Rated Voltage | 100–240V AC @ 50/60Hz |
Input Current | 0.6A @ 120V AC, 0.4A @ 240V AC |
Inrush Current | <60A @ 120V AC, <120A @ 230V AC |
Efficiency | 80+% |
Output Ripple | 1% Max. |
Switching Frequency | 65 kHz |
Line Regulation | ≤ 3% |
Load Regulation | ≤ 5% |
2-Pair Powering | Pins 4,5 (+) and Pins 7,8 (−) |
4-Pair Powering | – |
Gigabit LAN Port | Yes |
LAN Activity Indicator | No |
Remote Reset Capability | Yes |
Reset Button | Yes |
AC Connector | IEC-320 C6 |
Data IN / PoE | RJ45 Shielded Socket |
Storage Temperature | −30 to 70°C (−22 to 158°F) |
Operating Temperature | 0 to 40°C (32 to 104°F) |
Operating Humidity | 35 to 95% Noncondensing |
Surge Protection | Differential and Common Mode |
Clamping Protection | 11V Data, 60V Power |
Max Surge Discharge | 1500A (8/20 μs) |
Peak Pulse Current | 36A (10/1000 μs) |
Shunt Capacitance | <5 pF (Data) |
Response Time | <1 ns |
Certifications | CE, FCC, IC, UL |
