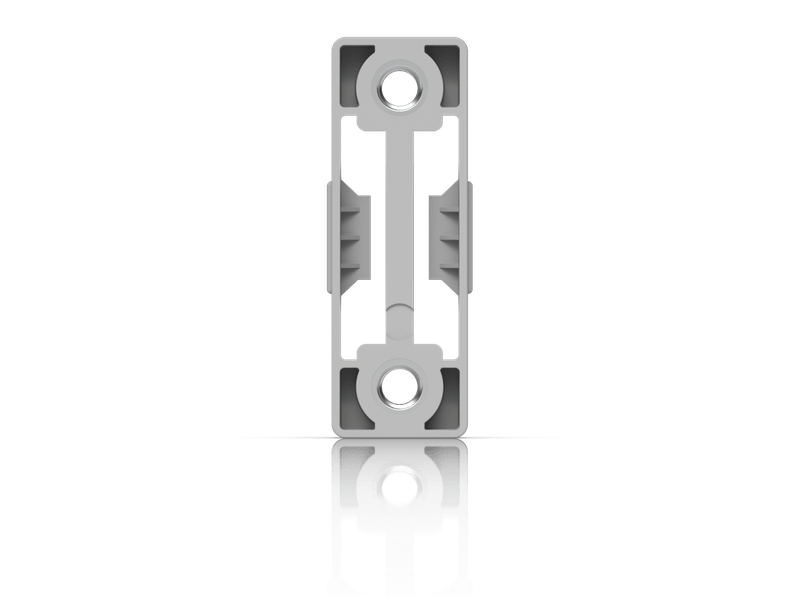

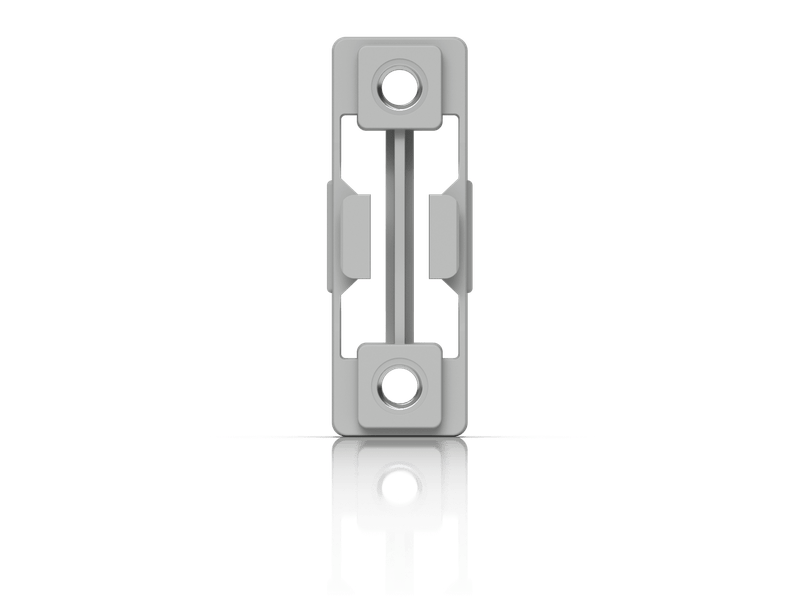

Precision Rack Mount Kit, 20-Pack
Precision Rack Mount Kit, 20-Pack
| UACC-Rack-PM-Kit-D Specifications | |
|---|---|
| Product Type | Precision Rack Mount Insert Kit |
| Dimensions | 42.7 × 15.5 × 8.7 mm (1.7 × 0.6 × 0.34") |
| Weight | 4 g (0.03 oz) per insert |
| Material | Thermoplastic (PA66) |
| Surface Treatment | Textured finish |
| Rack Rail Compatibility | Up to 2.2 mm (0.08") thickness |
| Screw Type | #10-32 |
| 1U Support | Up to 400 mm depth, 10 kg max weight |
| 2U Support | Up to 325 mm depth, 20 kg max weight |
| Rear Support Recommendation | Required if depth exceeds 400 mm (1U) or 325 mm (2U) |
| Pack Quantity | 20 inserts (supports up to 10U) |
| Insert Design | 1U snap-in with dual vertically aligned cage nuts |
| NDAA Compliant | ✓ |
