Overview

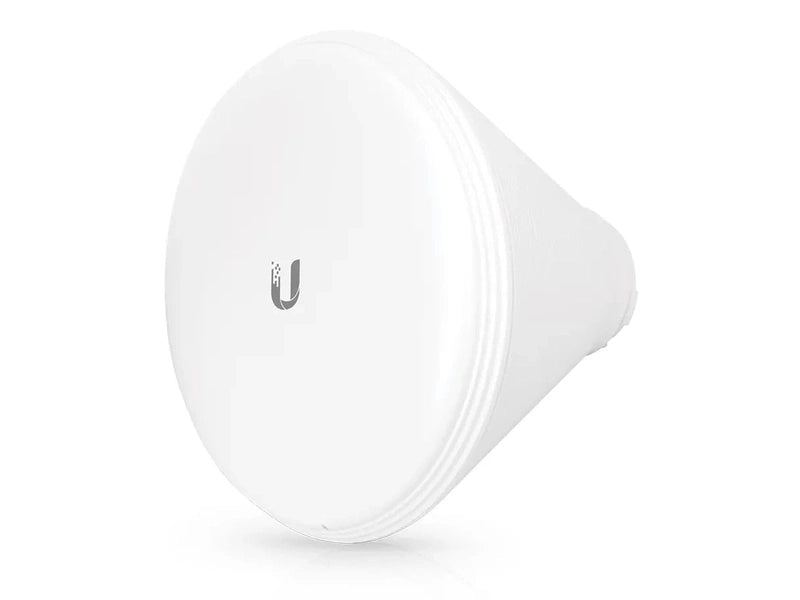

airMAX PrismStation Horn
Horn-5-45
5 GHz Beamwidth Horn antennas with precise radiation angles for specific beam shaping, ranging from 30° to 90°.
airMAX PrismStation Horn
Horn-5-45
5 GHz Beamwidth Horn antennas with precise radiation angles for specific beam shaping, ranging from 30° to 90°.
| HORN-5-45 Specifications | |
|---|---|
| Dimensions | 175 × 175 × 96 mm (6.89 × 6.89 × 3.78") |
| Weight | 0.54 kg (1.19 lb) |
| Enclosure Material | UV-stabilized plastic and metal |
| Frequency Range | 5.15 – 5.85 GHz |
| Gain | 15.5 dBi |
| Beamwidth | Horizontal: 45° Vertical: 45° Elevation: 45° |
| Polarization | Dual-linear |
| Cross-Polar Isolation | 17 dB |
| Max. VSWR | 1.7:1 |
| Wind Loading (with PrismStation) | 56 N @ 200 km/h (12.59 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Compatible Radios | IsoStation IS-M5 IsoStation IS-5AC PrismStation PS-5AC airFiber AF-LTU |
| NDAA Compliant | ✓ |
