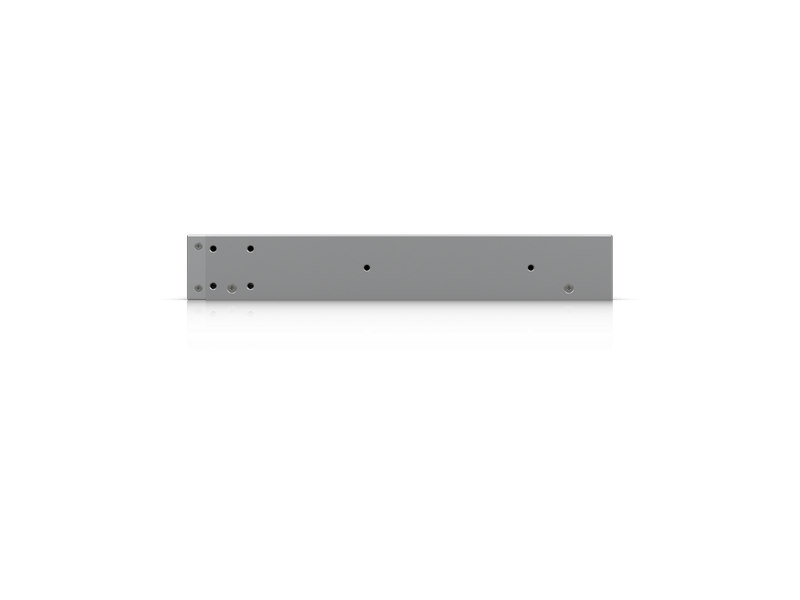

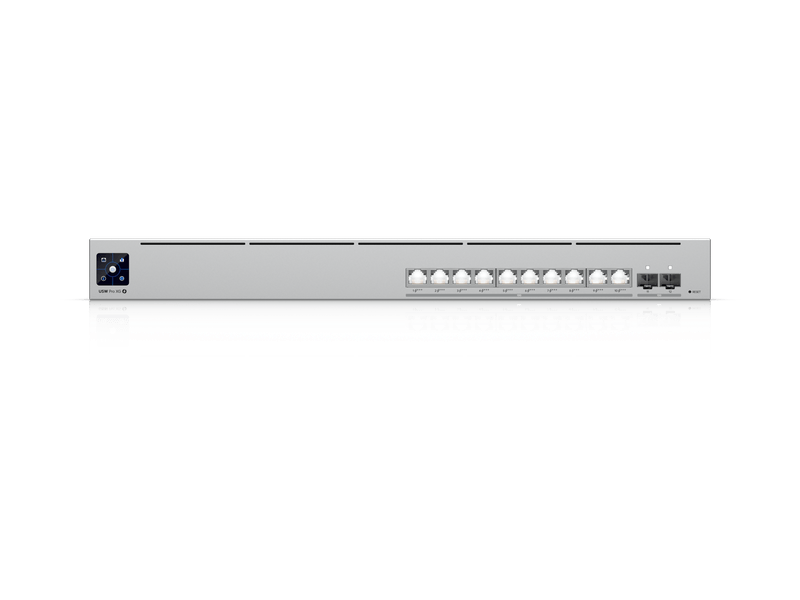

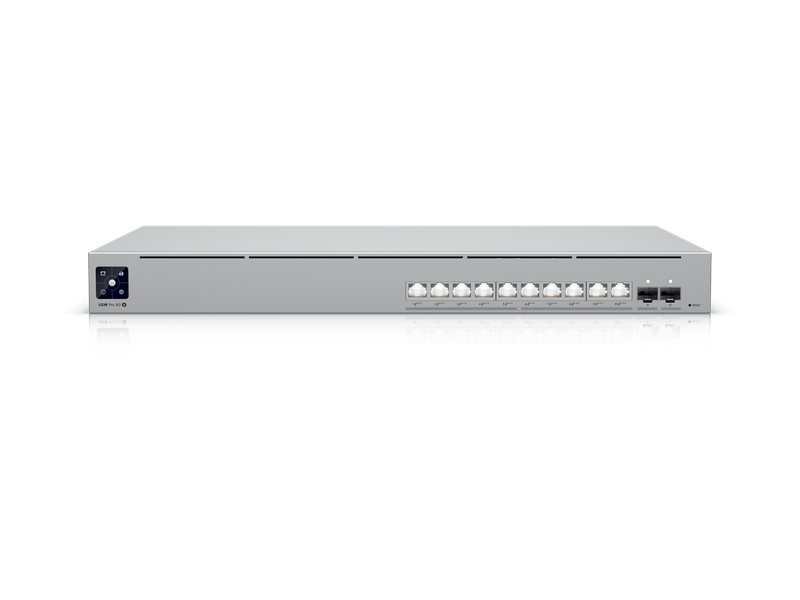

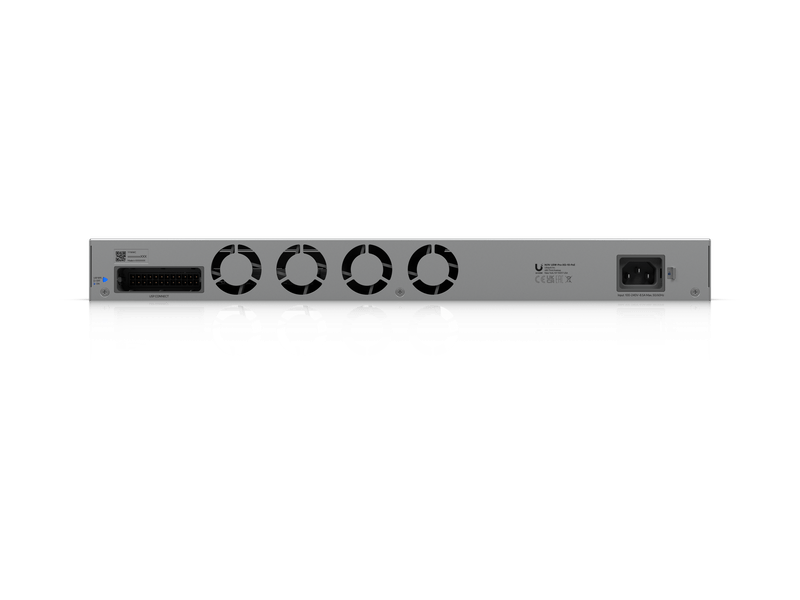

Pro XG 10 PoE
USW-Pro-XG-10-PoE (400W)
1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.
Pro XG 10 PoE
USW-Pro-XG-10-PoE (400W)
1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.
| USW-Pro-XG-10-PoE Specifications | |
|---|---|
| Dimensions | 442.4 × 285 × 44 mm (17.4 × 11.2 × 1.7") |
| Form Factor | Rack mount (1U) |
| Port Layout | 10 × 10 GbE RJ45 (PoE+++) 2 × 10G SFP+ (10G/1G) |
| Max. PoE Output | Up to PoE+++ (90W per port) |
| Total PoE Budget | 400W |
| Redundancy | DC Power Backup (USP RPS) |
| Layer 3 Support | ✓ |
| Etherlighting™ | ✓ (Ethernet & SFP+) |
| Switching Capacity | 240 Gbps |
| Non-Blocking Throughput | 120 Gbps |
| Forwarding Rate | 179 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table | 32,000 entries |
| ARP Entries | 12,000 |
| IPv4 Routes | 12,000 |
| Packet Buffer Size | 2 MB |
| Access Lists | IPv4: 128, MAC: 128 |
| DHCP Server | ✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing | ✓ |
| Static Routing | ✓ |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| QoS (DSCP) | ✓ |
| Pro AV Profiles | ✓ (Dante, Q-SYS, NDI, SDVoE, AES67, Crestron, Shure) |
| Advanced IGMP | ✓ (Querier, Fast Leave, Router Port) |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC/IP ACLs | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Rate Limiting | ✓ (Egress, Multicast, Broadcast) |
| Flow & Storm Control | ✓ |
| Port Features | ✓ (Isolation, Mirroring, Restriction) |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| PoE Ports | 10 × PoE+++ RJ45 |
| PoE Wattage per Port | PoE: 15.4W PoE+: 30W PoE++: 60W PoE+++: 90W |
| Max. Power Consumption | 65W (excluding PoE) 520W (including PoE) |
| Power Method | Universal input: 100–240V AC, 50/60 Hz USP RPS DC input |
| Power Supply | AC/DC, internal, 550W |
| Management | Ethernet, AR |
| Weight | Without brackets: 4.6 kg (10.14 lb) With brackets: 4.7 kg (10.36 lb) |
| Enclosure & Mount Material | SGCC steel |
| Supported Rack Depth | 400–1200 mm (15.7–47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ±30kV, Contact: ±30kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% noncondensing |
| LED Indicators | ✓ (System, RPS) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Application Requirements | UniFi Network, version 9.1.120 and later |
