Description
Overview

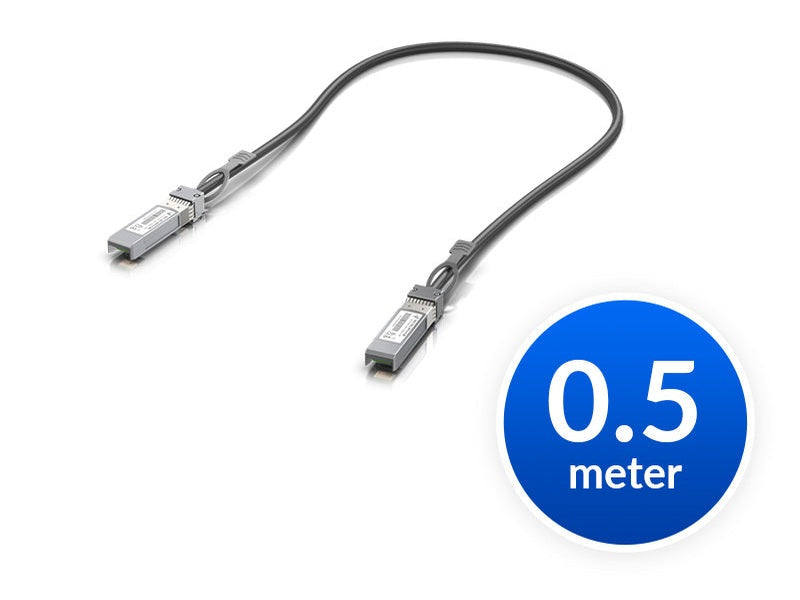

10G Direct Attach Cable
UACC-DAC-SFP10-0.5M
SFP+ direct attach cable with a 10 Gbps max data rate.
Supported data rates: 10 / 1 Gbps
Compatible with SFP+ and SFP interfaces
Cable length: 0.5 to 3 m
10G Direct Attach Cable
UACC-DAC-SFP10-0.5M
SFP+ direct attach cable with a 10 Gbps max data rate.
Supported data rates: 10 / 1 Gbps
Compatible with SFP+ and SFP interfaces
Cable length: 0.5 to 3 m
UACC-DAC-SFP10-0.5M Specifications | |
---|---|
Product Type | 10G Passive Direct Attach Cable |
Length | 0.5 meter (1.6 feet) |
Connector Type | SFP+ to SFP+ |
Cable Type | Passive Twinax Copper |
Application | Short-range 10G interconnects between switches, routers, or servers |
Max Data Rate | 10.3125 Gbps |
Bit Error Rate | < 10⁻¹² |
Impedance | 100 Ohm differential |
Power Supply Voltage | 3.14 – 3.46V DC |
Max Power Consumption | < 0.66W |
Wire Gauge | 30 AWG |
Jacket Material | PVC |
Outer Diameter | 4.2 mm |
Minimum Bend Radius | 25 mm |
Jacket Color | Black |
Operating Temperature | 0 to 70°C (32 to 158°F) |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Standards | IEEE 802.3ae (10G Ethernet) SFF-8431 compliant RoHS compliant TAA compliant |
Hot-Pluggable | ✓ |
NDAA Compliant | ✓ |
