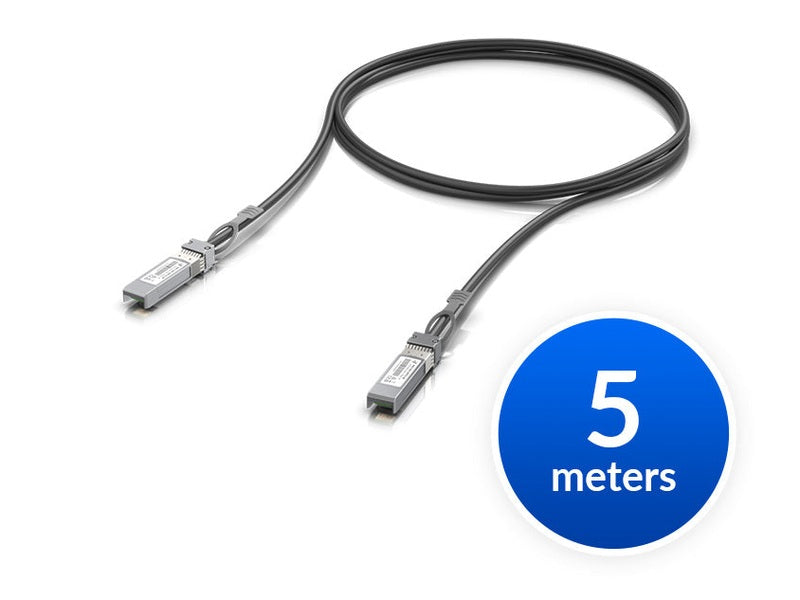

Ubiquiti SFP28 Direct Attach Cable, 25Gbps DAC Cable, 25Gbps Throughput Rate, 5m Length
Ubiquiti SFP28 Direct Attach Cable, 25Gbps DAC Cable, 25Gbps Throughput Rate, 5m Length
UACC-DAC-SFP28-5M Specifications | |
---|---|
Product Type | 25G SFP28 Passive Direct Attach Cable |
Connector Type | SFP28 to SFP28 |
Cable Type | Passive Twinax Copper |
Cable Length | 5 meters (16.4 feet) |
Data Rate Support | 25 / 10 / 1 Gbps |
Compatibility | SFP28, SFP+, SFP interfaces |
Impedance | 100 Ohm differential |
Input Voltage | 3.14 – 3.46V DC |
Max Power Consumption | < 0.66W |
Bit Error Rate | < 10⁻¹² |
Wire Gauge | 26 / 30 AWG |
Cable Diameter | 4.1 – 5.2 mm |
Minimum Bend Radius | 26 mm |
Jacket Material | PVC |
Jacket Color | Black |
Weight | Approx. 78 g |
Operating Temperature | 0 to 70°C (32 to 158°F) |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Standards | IEEE 802.3by (25G Ethernet) SFF-8402 compliant RoHS compliant TAA compliant |
Hot-Pluggable | ✓ |
NDAA Compliant | ✓ |
