Fiber OLT 4
UF-OLT-4
Four-port GPON optical line terminal (OLT) designed to manage fiber internet service for up to 512 clients (128 per port).
Fiber OLT 4
UF-OLT-4
Four-port GPON optical line terminal (OLT) designed to manage fiber internet service for up to 512 clients (128 per port).
| UF-OLT-4 Specifications | |
|---|---|
| Product Type | GPON Optical Line Terminal (OLT) |
| Application | Fiber internet service delivery for up to 512 ONUs/ONTs |
| Operating Mode | GPON Core + Layer 2 Ethernet Switch |
| Hardware Interfaces | |

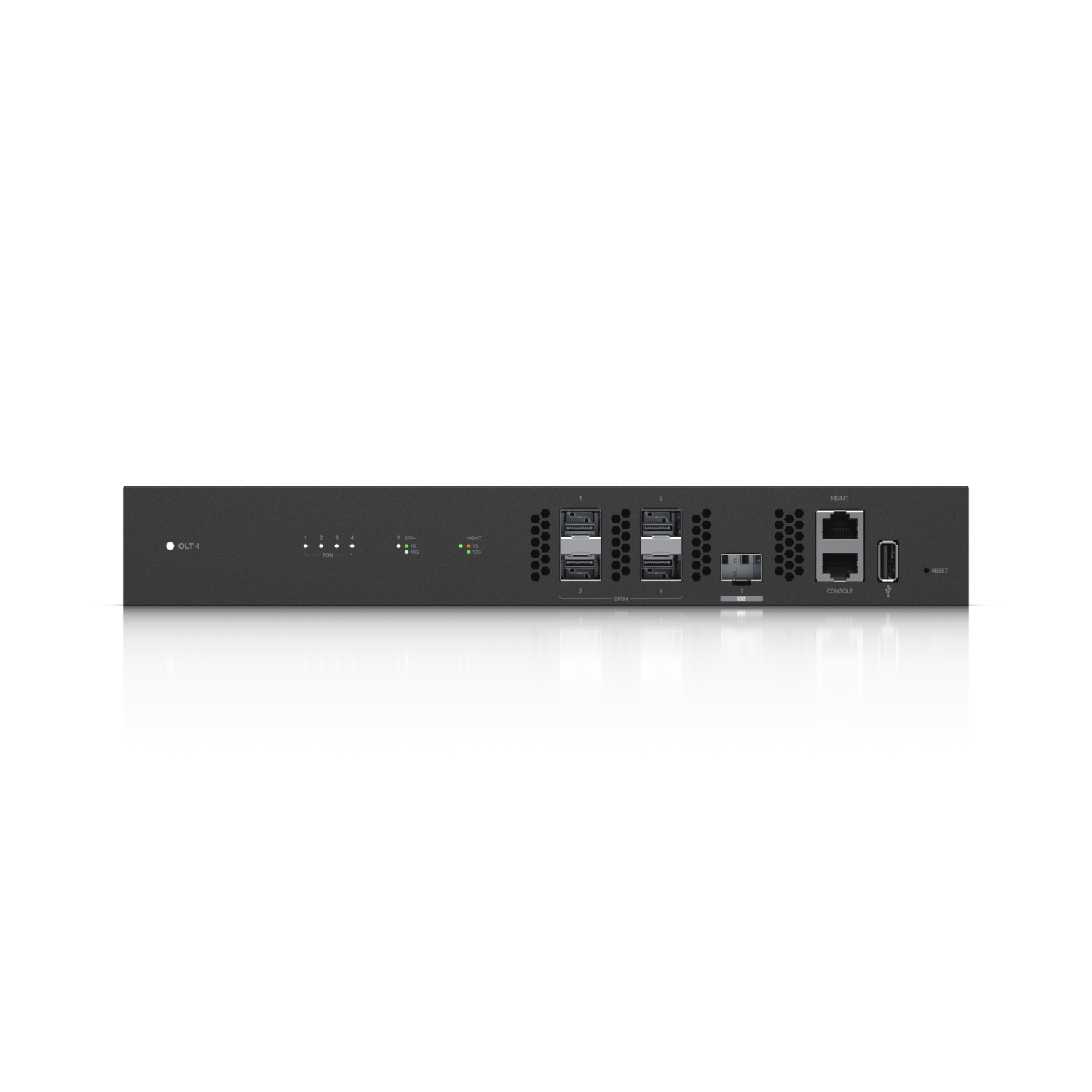

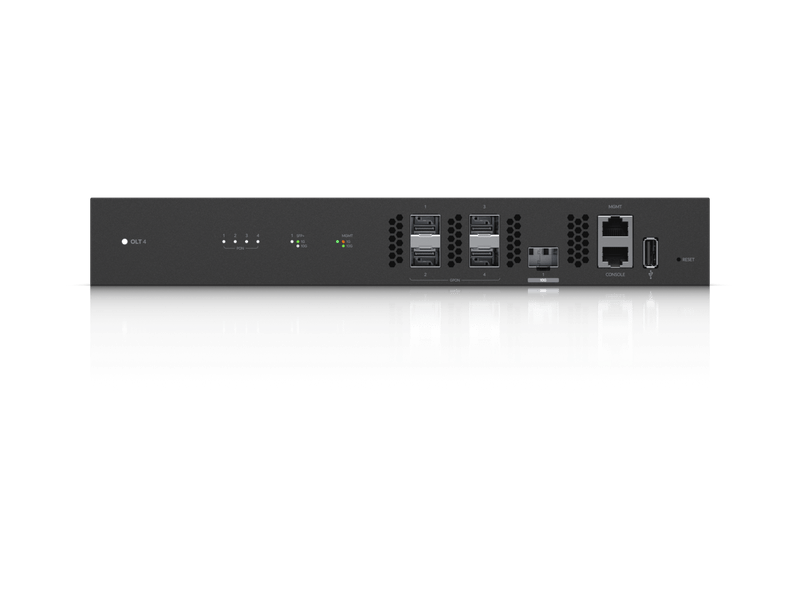

| GPON Ports | (4) SFP OLT ports |
| Uplink Port | (1) 1G/10G SFP+ |
| Management Ports | (1) RJ45 Ethernet (OOB) (1) RJ45 Serial Console |
| Button | Factory Reset |
| LED Indicators | Power: Blue/White GPON: White (link/activity) SFP+: White/Green (10G/1G) Ethernet: Green (link/activity) |
| Optical Performance | |
| TX Wavelength | 1490 nm |
| RX Wavelength | 1310 nm |
| TX Power | 1.5 to 5 dBm |
| RX Sensitivity | −28 to −8 dBm |
| Downstream Rate | 2.488 Gbps |
| Upstream Rate | 1.244 Gbps |
| Physical Reach | Up to 20 km |
| Max ONUs/ONTs | 512 total (128 per GPON port) |
| Power | |
| Power Method | 100–240V AC, 50/60 Hz or 25V DC |
| Power Supply | Internal AC/DC, 56V DC output |
| Max Power Consumption | 35W (excluding SFP modules) |
| Performance & Features | |
| Processor | MIPS 1004kc, 880 MHz Dual-Core |
| Memory | 512 MB DDR3 RAM, 512 MB NAND |
| QoS | 8 priority queues per user port |
| VLAN Support | Up to 4062 VLANs |
| Management | UISP Web, Mobile App |
| Mechanical | |
| Dimensions | 299.8 × 289 × 42.5 mm (11.8 × 11.4 × 1.7") |
| Weight | Without brackets: 1.9 kg (4.3 lb) With brackets: 2.1 kg (4.7 lb) |
| Enclosure Material | SGCC Steel |
| Environmental | |
| Operating Temperature | −10 to 45°C (14 to 113°F) |
| Operating Humidity | 10 to 90% noncondensing |
| Compliance | |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
