Description
Overview

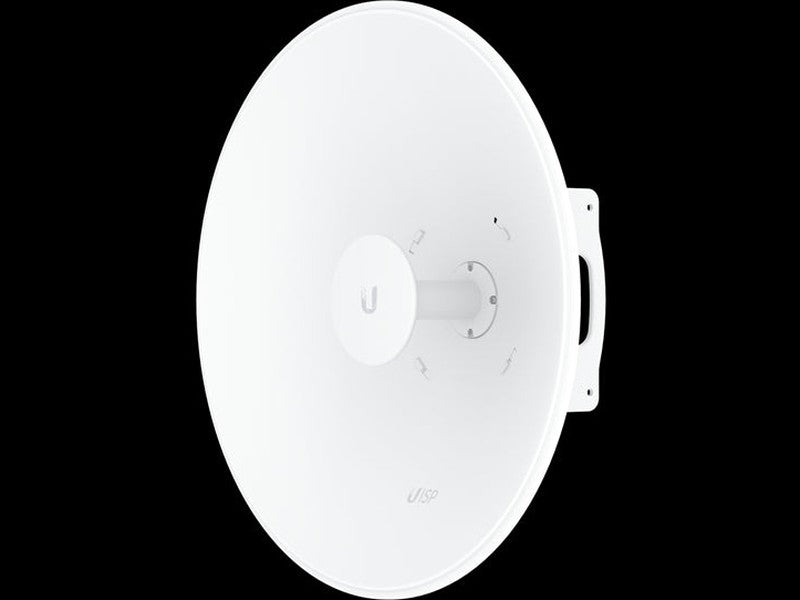

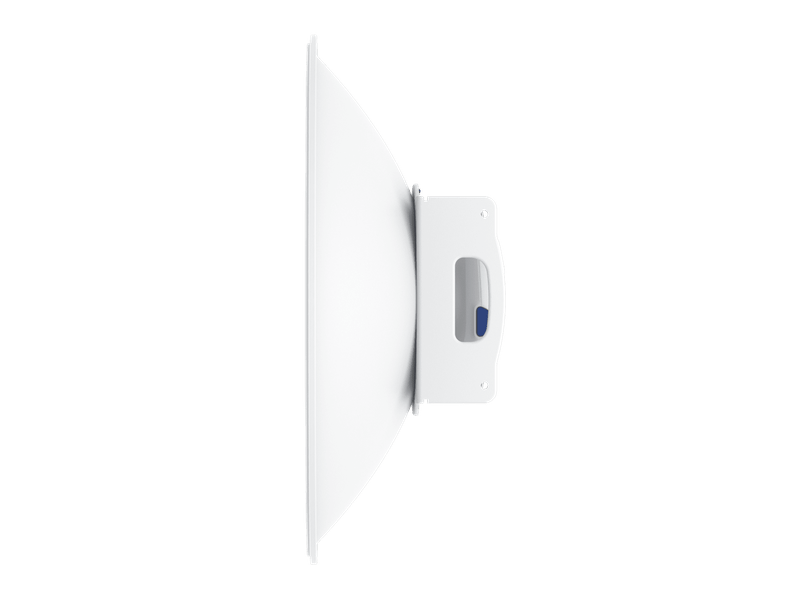

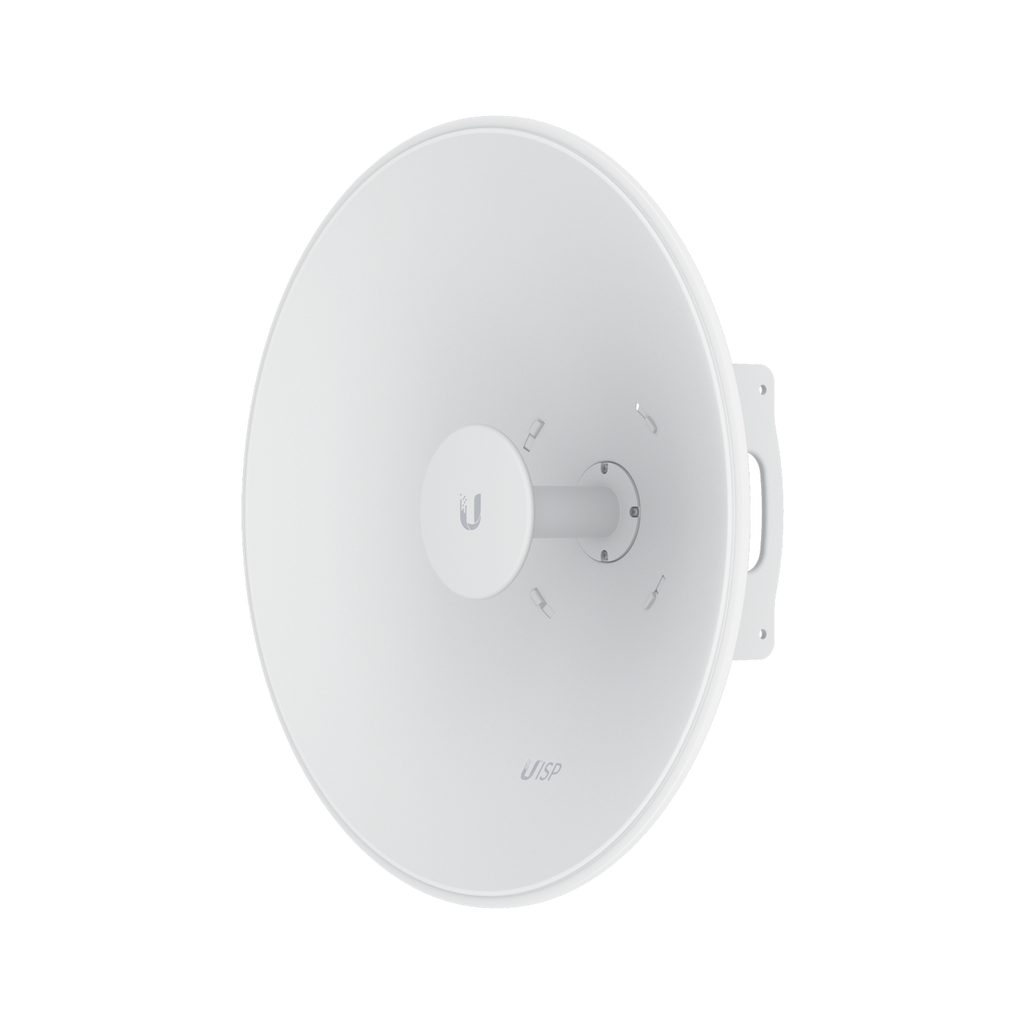

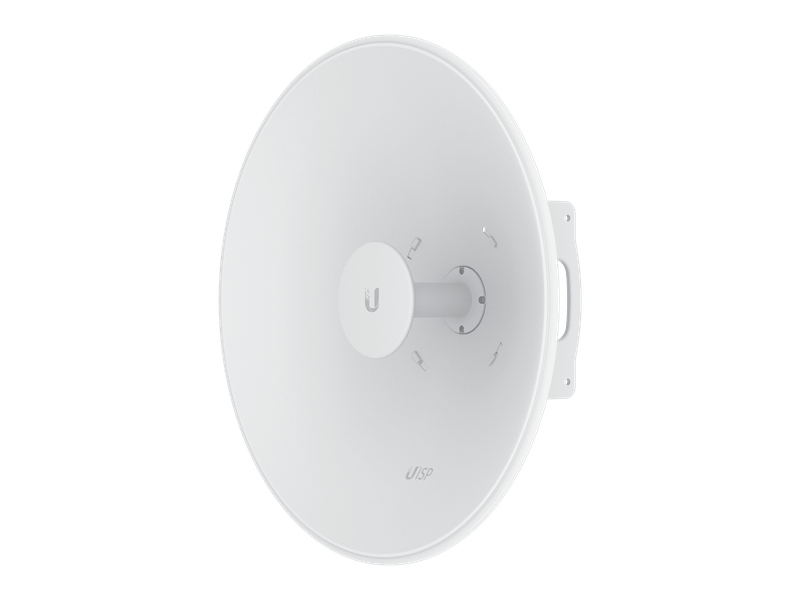

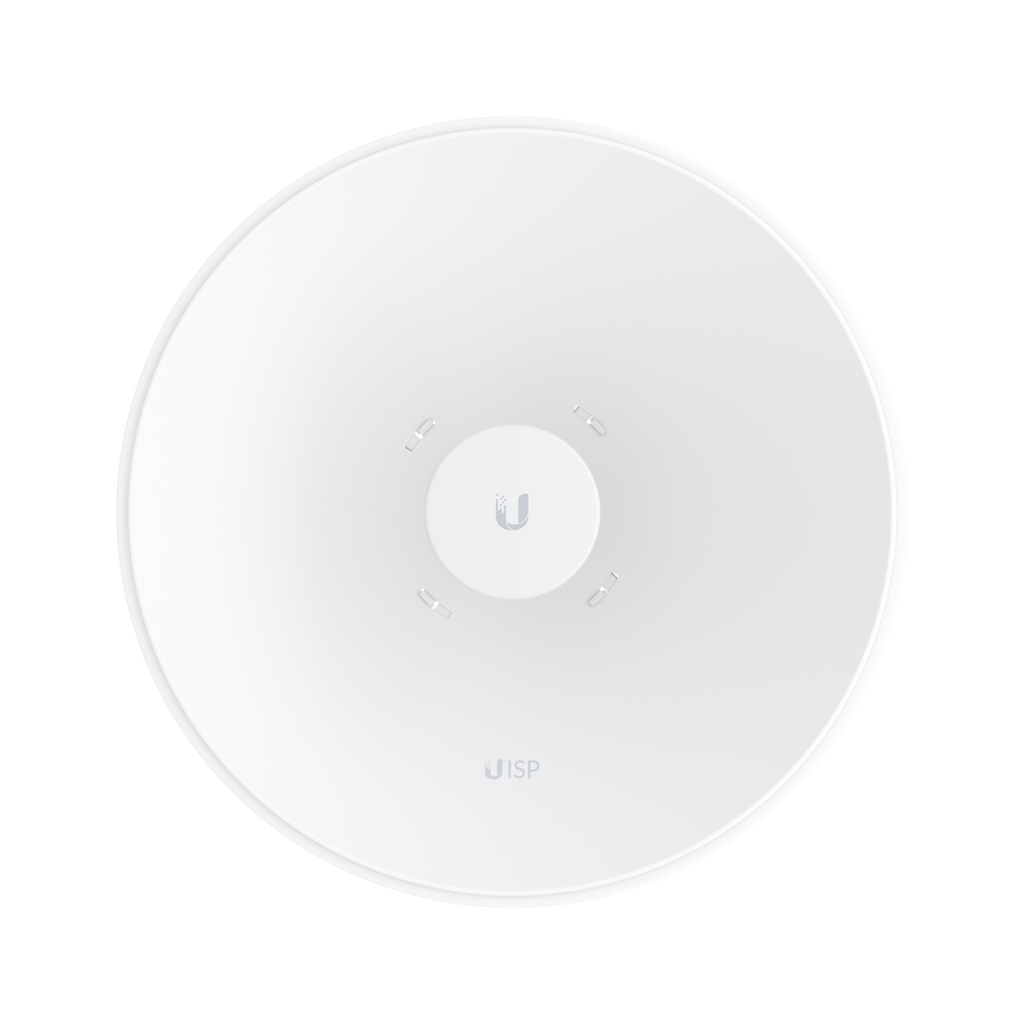

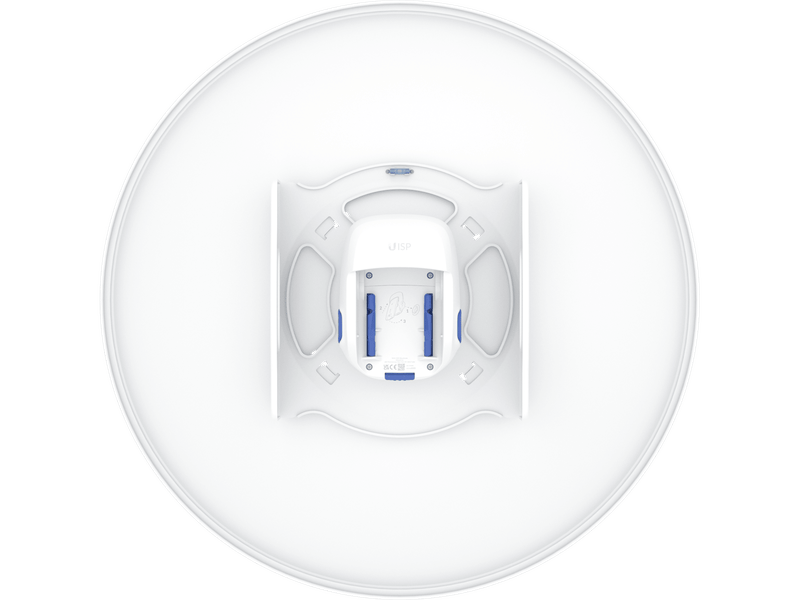

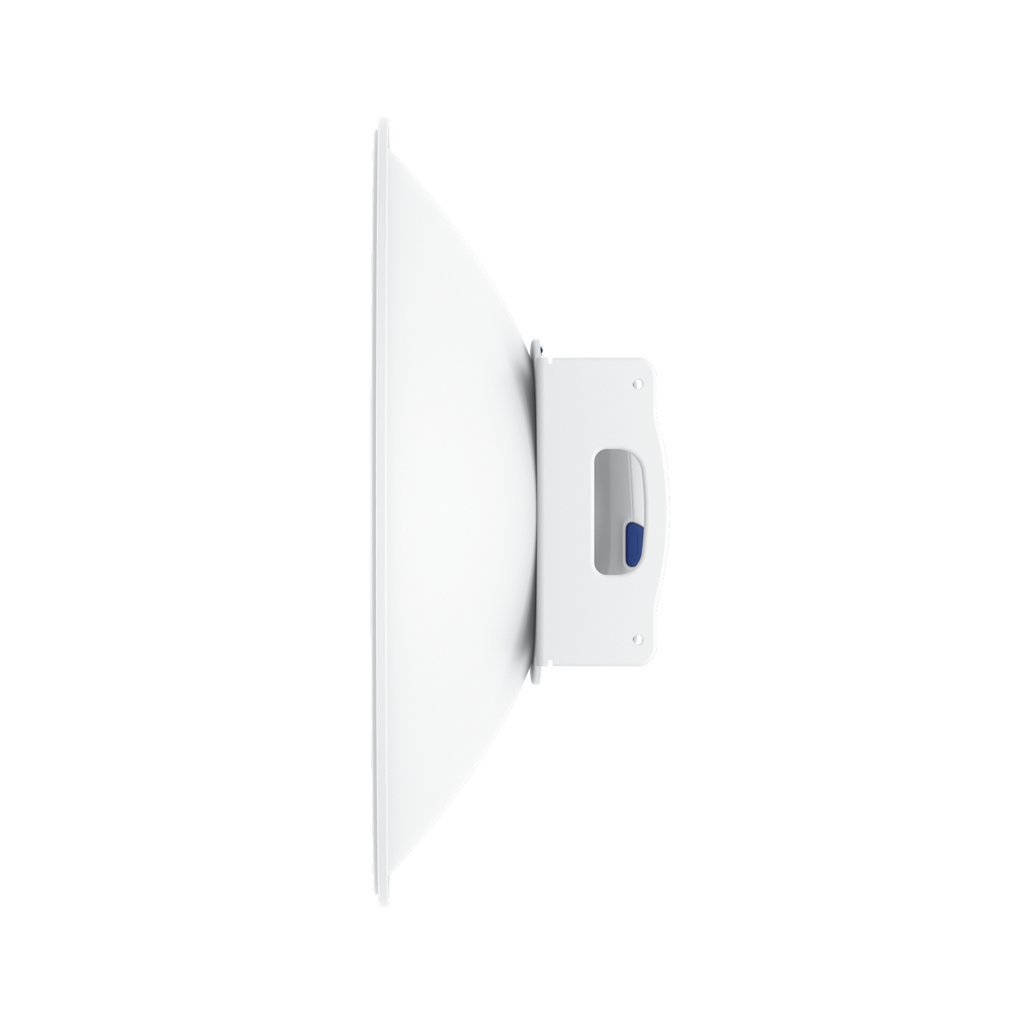

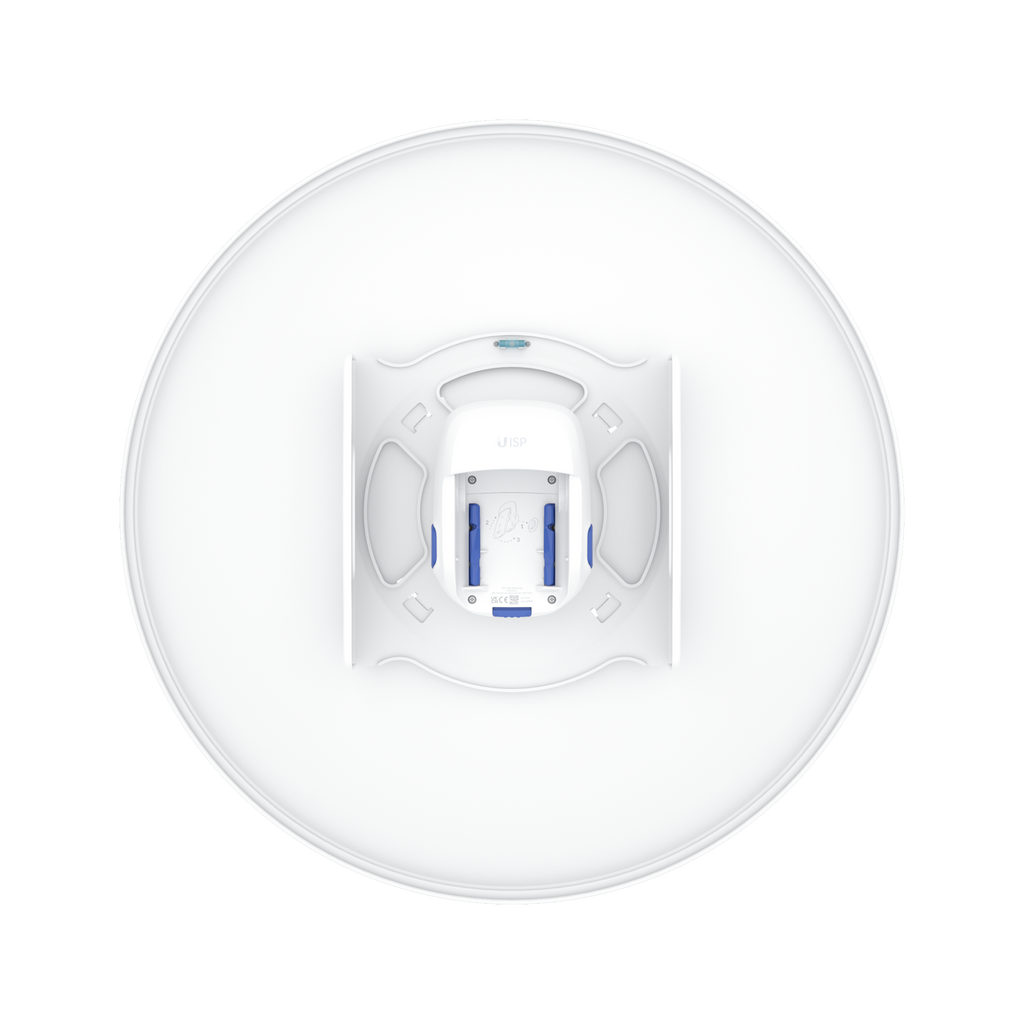

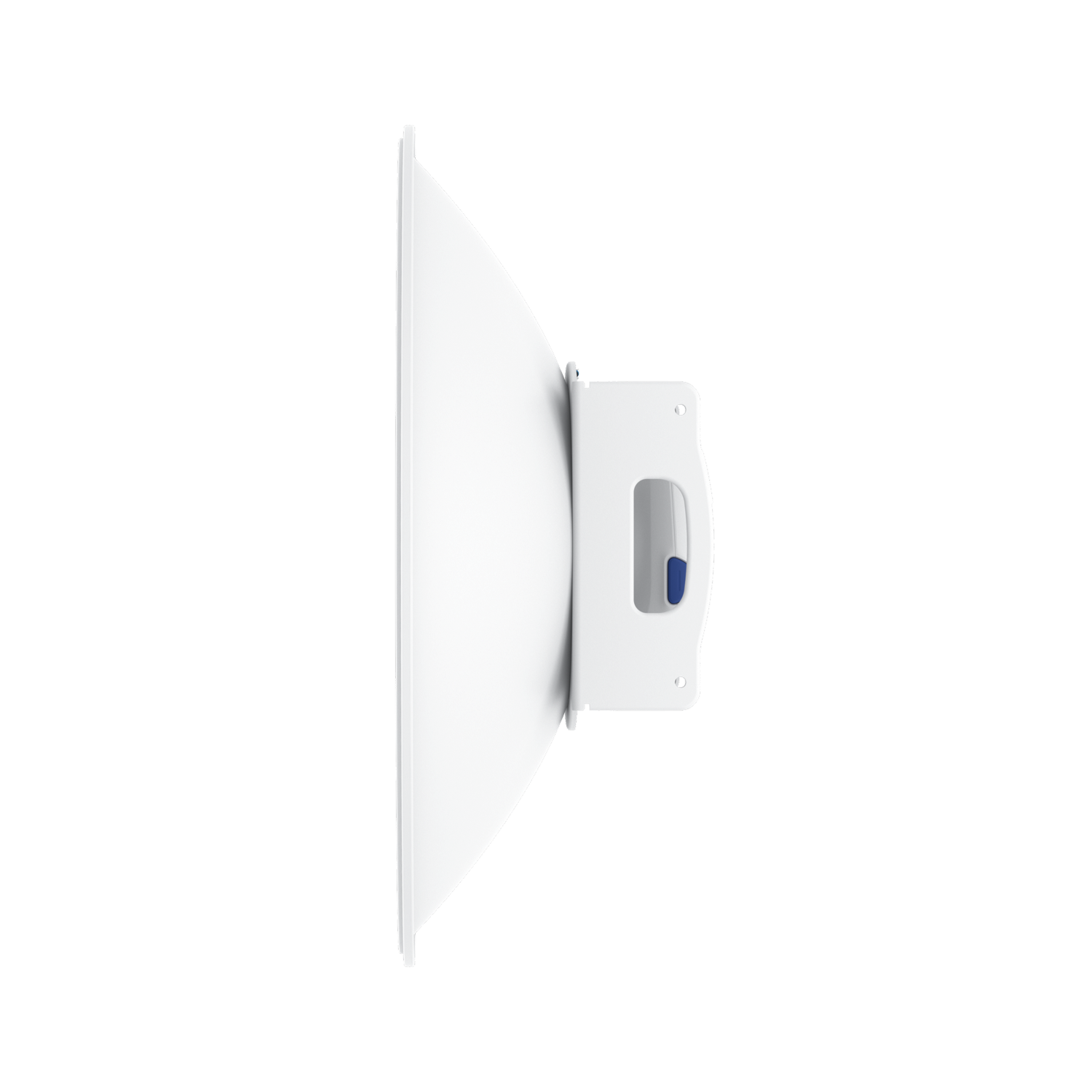

UISP Dish
UISP-Dish
Point-to-point (PtP) dish antenna that covers a wide operating frequency range.
Compatibility: Wave-MLO5, RP-5AC-Gen2, AF-5XHD
UISP Dish
UISP-Dish
Point-to-point (PtP) dish antenna that covers a wide operating frequency range.
Compatibility: Wave-MLO5, RP-5AC-Gen2, AF-5XHD
UISP-Dish Specifications | |
---|---|
Product Type | Directional Point-to-Point (PtP) Dish Antenna |
Application | Long-range wireless backhaul |
Max. Range | 30+ km |
Gain | 30 dBi |
Frequency Range | 5.15 – 6.875 GHz |
Polarization | Dual-linear |
VSWR | Max 2:1 |
Cross-Pol Isolation | 20 dB |
Azimuth Beamwidth | 3 dB: 5–6°, 6 dB: 6.5–8° |
Elevation Beamwidth | 3 dB: 5–6°, 6 dB: 6.5–8° |
Electrical Downtilt | 0° |
Dimensions | Ø650 × 200 mm (Ø25.6 × 7.9") |
Weight | Dish: 4.54 kg (10 lb) Mount: 3.1 kg (6.8 lb) |

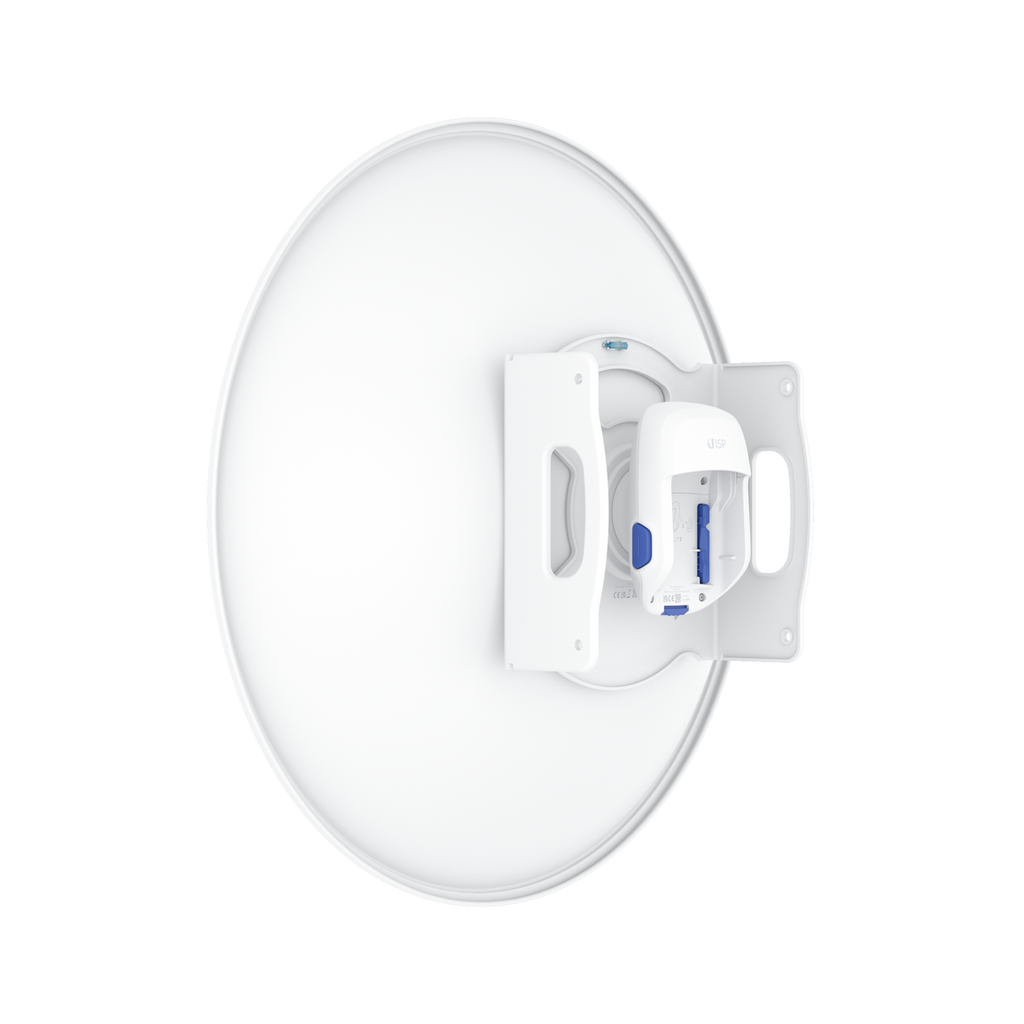

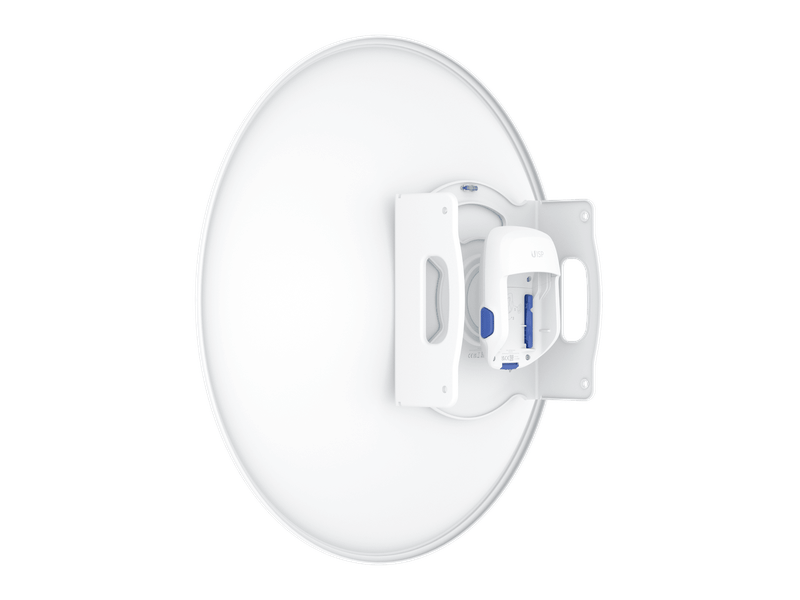

Mounting | Pole mount with alignment bracket Elevation adjustment: ±15° Pole diameter: Ø40–90 mm (Ø1.57–3.5") |
Wind Survivability | Up to 200 km/h (124 mph) |
Wind Loading | 860 N @ 200 km/h (193 lbf) |
Enclosure Material | Powder-coated galvanized steel, UV-stabilized polycarbonate, aluminum alloy |
Weatherproofing | IPX6 |
NDAA Compliant | ✓ |
