Description
Overview

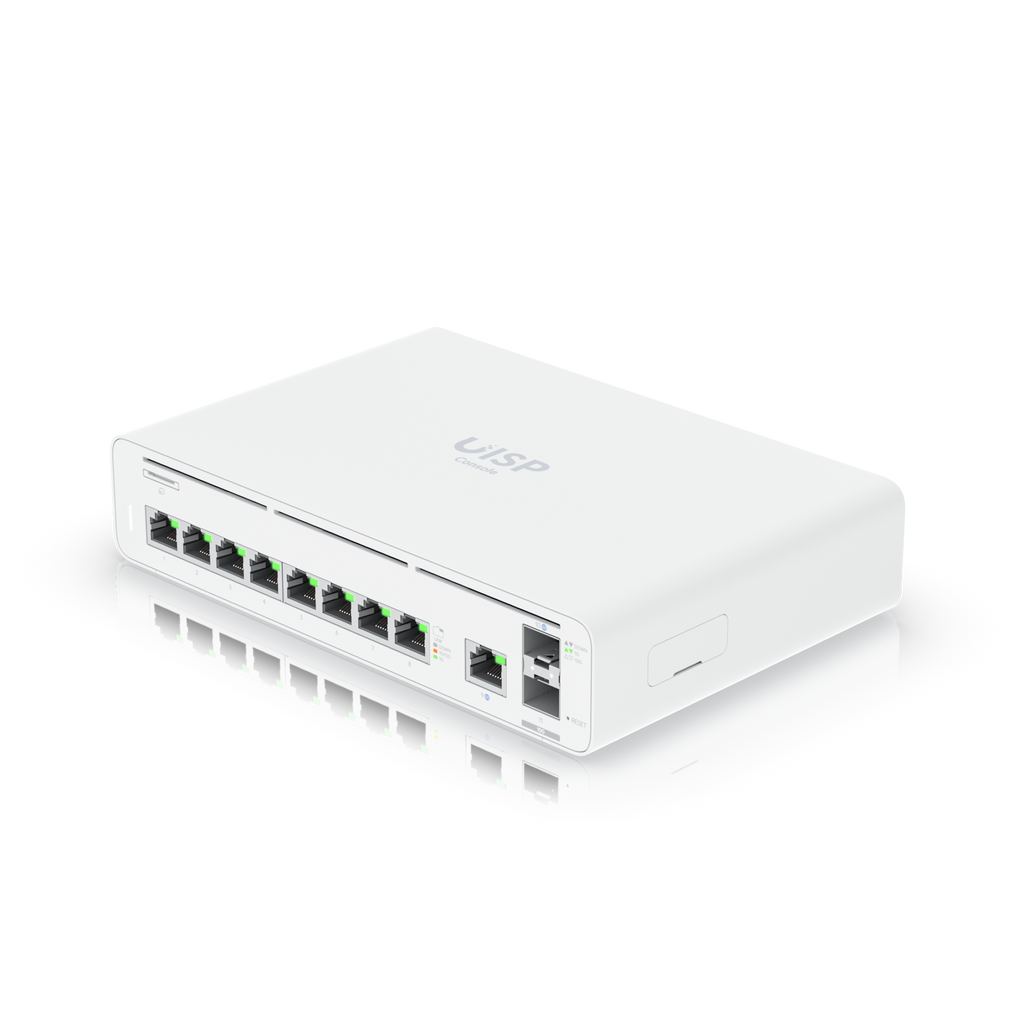

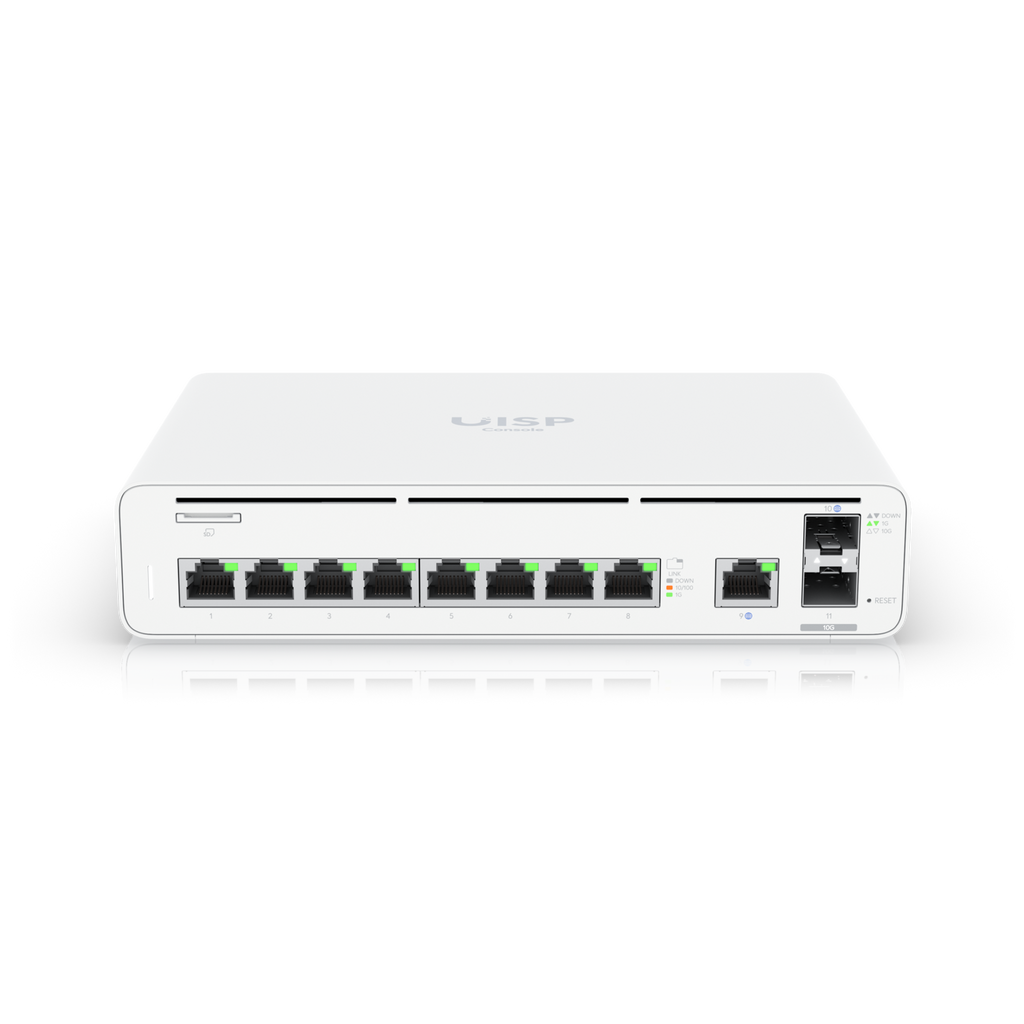

•(9) GbE RJ45 ports
•(2) 10G SFP+ ports
•Up to 8,500 Mbps NAT throughput*
•Powered by an external AC/DC adapter (included)

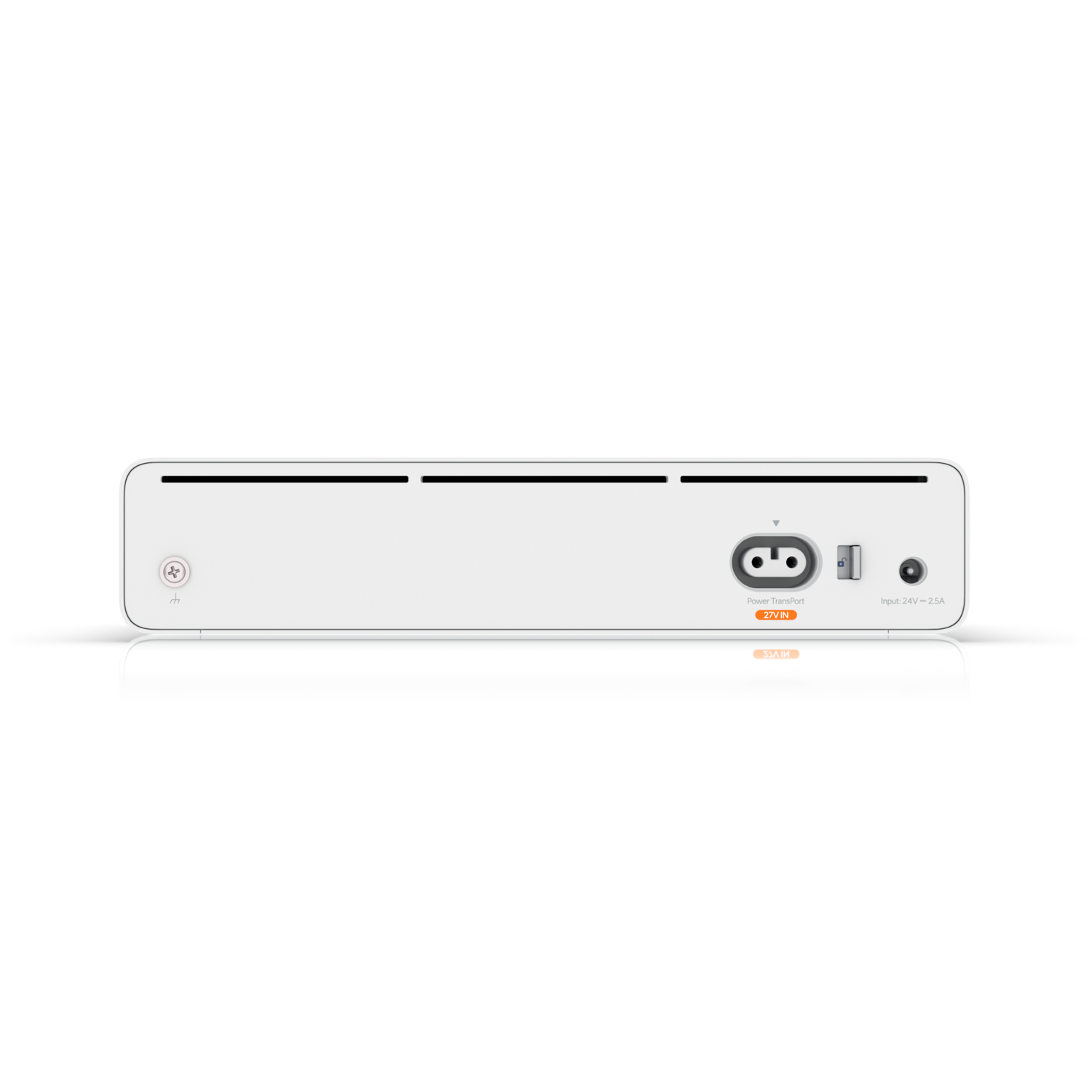

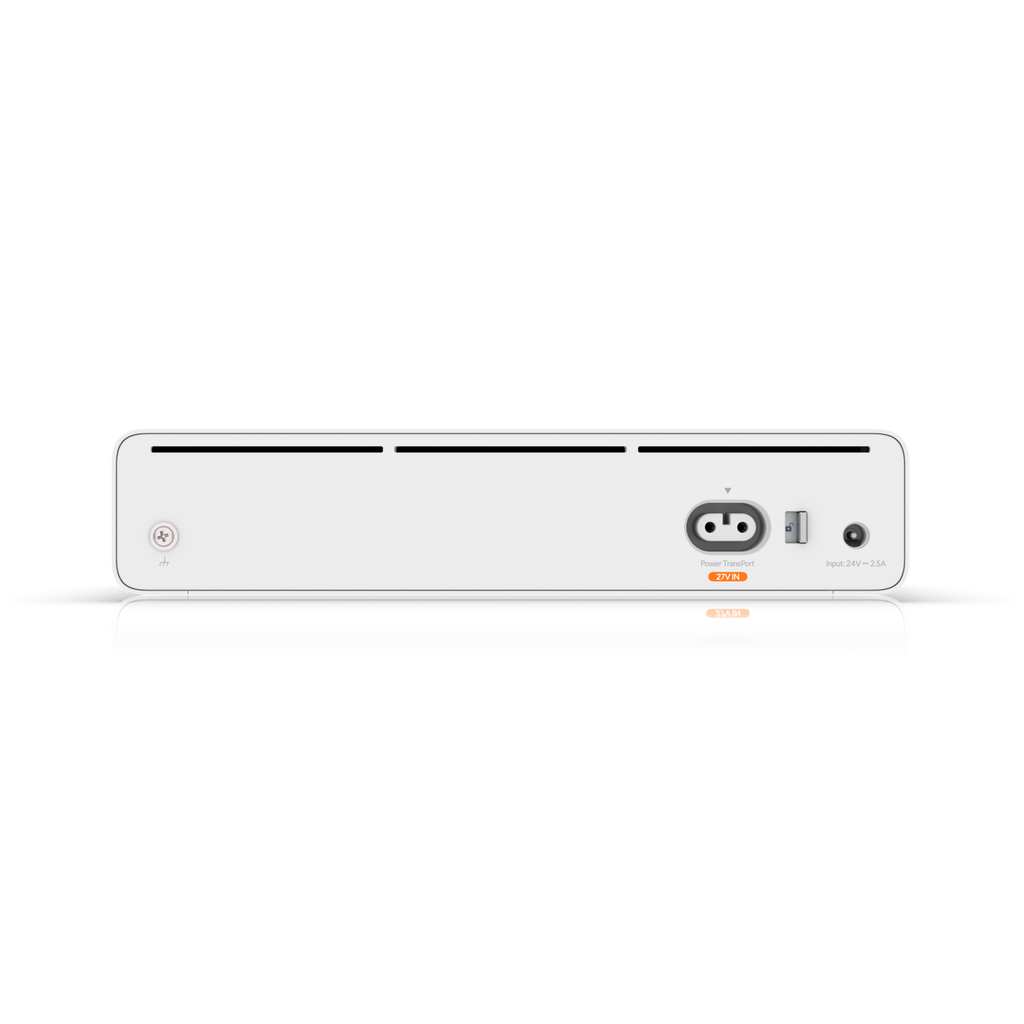

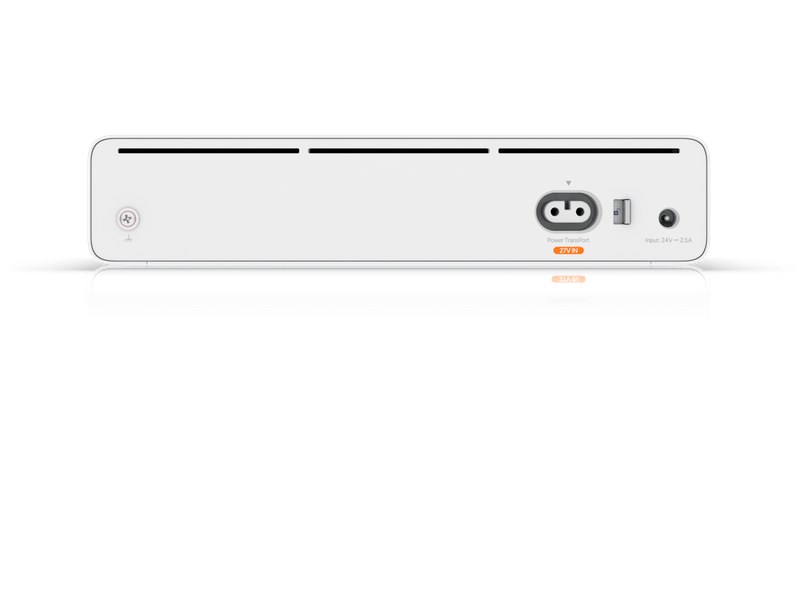

•Additional Power TransPort input for DC redundancy

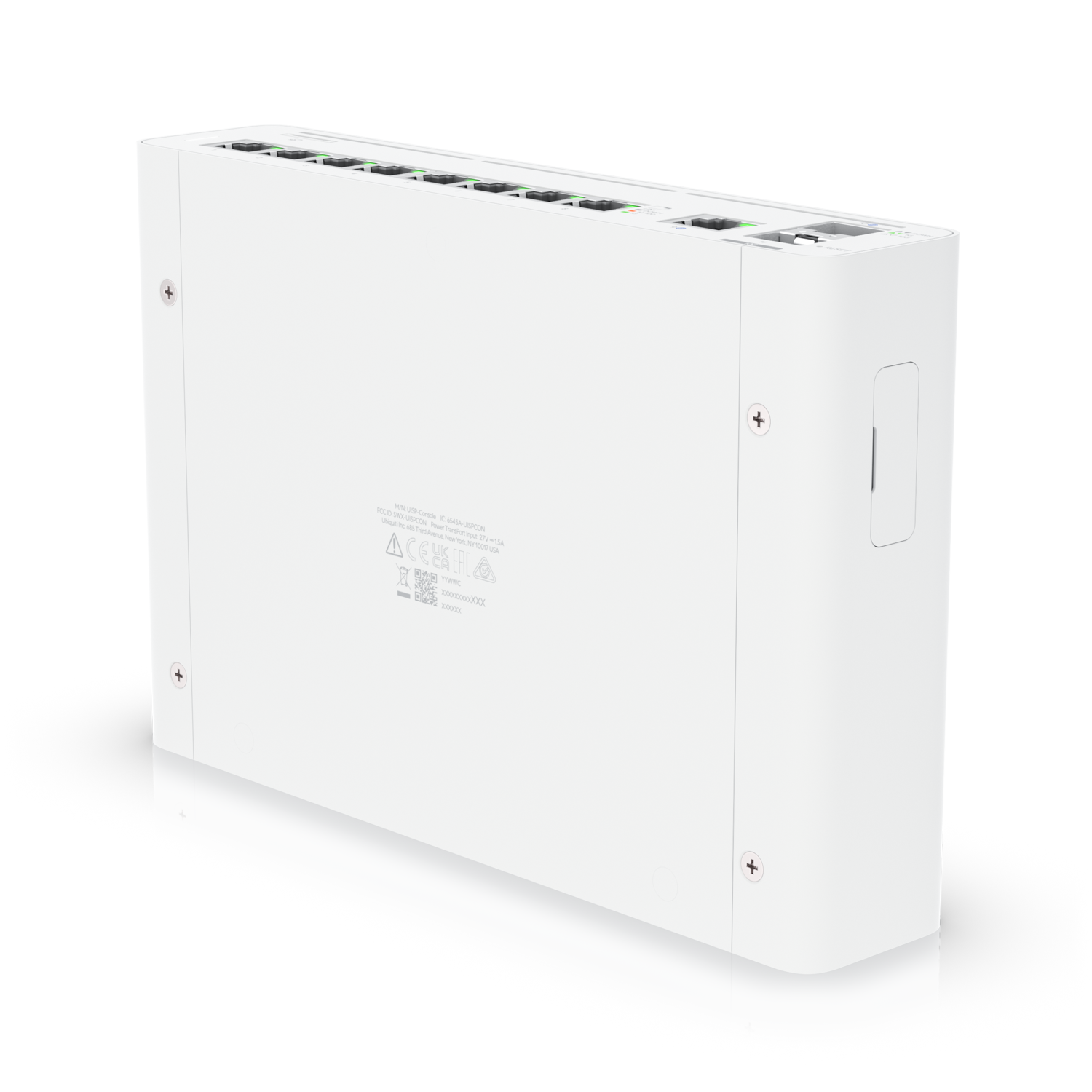

•1U rack or wall-mountable (kits included)
• *Up to 2,250 Mbps with QoS enabled; up to 7,500 Mbps with IP Accounting enabled.*

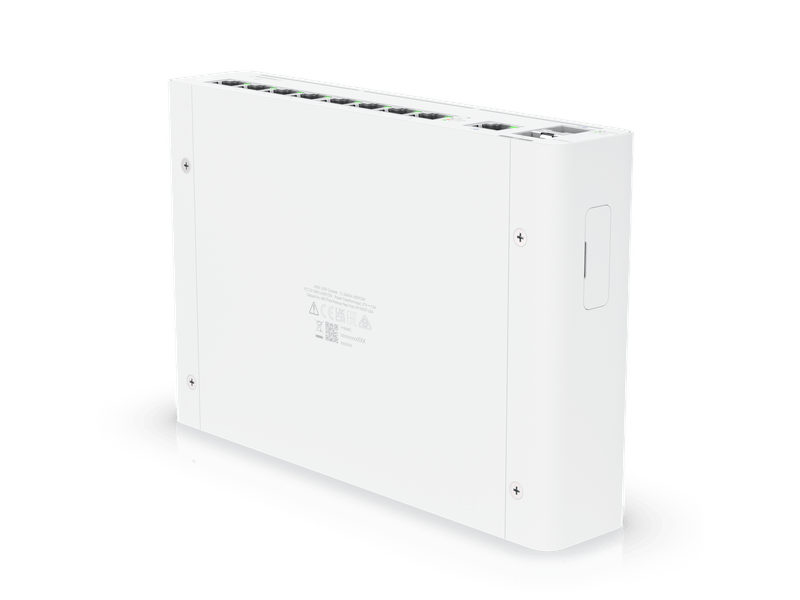

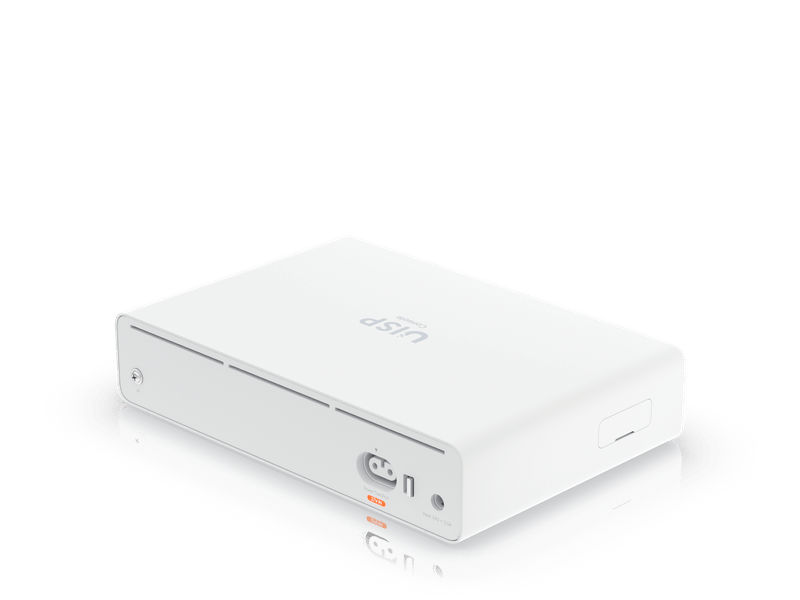

The UISP host console with an integrated switch and multi-gigabit Ethernet gateway.
It is designed to support small to moderate UISP deployments with its built-in switch equipped with (8) GbE RJ45 LAN ports. The UISP Console also serves as a high-performance gateway with (1) 10G SFP+ LAN port and (2) WAN ports (10G SFP+ and GbE RJ45) that provide an ample connectivity range capable of supporting the most data-intensive deployments.
•(9) GbE RJ45 ports
•(2) 10G SFP+ ports
•Up to 8,500 Mbps NAT throughput*
•Powered by an external AC/DC adapter (included)
•Additional Power TransPort input for DC redundancy
•1U rack or wall-mountable (kits included)
• *Up to 2,250 Mbps with QoS enabled; up to 7,500 Mbps with IP Accounting enabled.*
The UISP host console with an integrated switch and multi-gigabit Ethernet gateway.
It is designed to support small to moderate UISP deployments with its built-in switch equipped with (8) GbE RJ45 LAN ports. The UISP Console also serves as a high-performance gateway with (1) 10G SFP+ LAN port and (2) WAN ports (10G SFP+ and GbE RJ45) that provide an ample connectivity range capable of supporting the most data-intensive deployments.
| UISP-Console Specifications | |
|---|---|
| Product Type | UISP Host Console with Integrated Switch & Gateway |
| Form Factor | Desktop / Rackmount (1U) |
| Management Interfaces | Ethernet (in-band), Bluetooth |
| Processor | Quad-core ARM® Cortex®-A57 @ 1.7 GHz |
| Memory | 4 GB DDR4 |
| Flash Storage | 16 GB eMMC |
| SSD Storage | 128 GB |
| Card Slot | (1) microSD (up to 2 TB) |
| LAN Ports | (8) GbE RJ45 (1) 1/10G SFP+ |
| WAN Ports | (1) GbE RJ45 (1) 1/10G SFP+ |
| Power Method | External AC/DC adapter + Power TransPort DC input |
| Power Supply | 24V DC, 2.5A adapter (included) |
| Supported Voltage Range | 24–28V DC |
| Max. Power Consumption | 30W |
| Dimensions | 210.4 × 140.2 × 43.7 mm (8.3 × 5.5 × 1.7") |
| Weight | 1.5 kg (3.2 lb) |
| Enclosure Material | SGCC Steel, Polycarbonate |
| Operating Temperature | -10 to 50° C (14 to 122° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| ESD/EMP Protection | Air: ±15kV, Contact: ±8kV |
| NDAA Compliant | ✓ |
| LEDs | System Status RJ45 Ports: Speed / Link / Activity SFP+ Ports: Speed / Link / Activity |
