Ubiquiti UISP-S-Pro 24-Port Gigabit PoE 220W Switch Pro w/ 4xSFP+

UbiquitiSKU: UISP-S-Pro

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$954.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

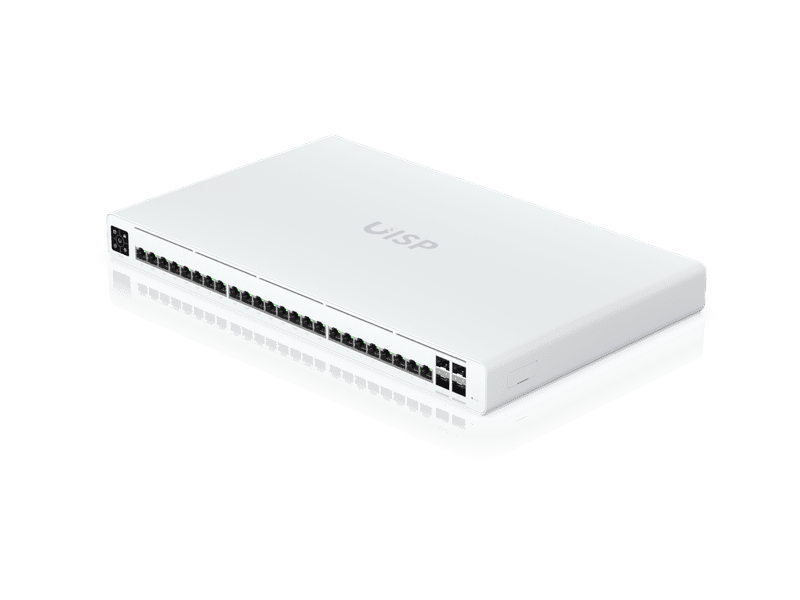

Ubiquiti UISP Switch Pro 24 Port Gigabit Ethernet Switch [UISP-S-Pro]


220W (27V) PoE switch with (24) GbE RJ45 ports, including (16) with 27V passive PoE, and (4) 10G SFP+ ports.

  • (24) GbE RJ45 ports, including (16) with 27V passive PoE output
  • (4) SFP+ ports
  • 220W (27V) total PoE availability, 15W/port (2-pair) / 30W/port (4-pair)
  • Port isolation, speed limiting, and DHCP snooping functionality
  • 1.3" LCM color touchscreen
  • Additional Power TransPort input for DC redundancy
  • Standalone management through local web interface* and UISP Application

 integration



*Available for switches updated to version 1.6.0 and later.

Specifications


Mechanical
Dimensions 442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7")
Weight 4 kg (8.8 lb)
Enclosure materials SGCC steel, polycarbonate/acrylonitrile butadiene styrene
Hardware
Networking interface (24) GbE RJ45 LAN ports
(4) 1/10G SFP+ ports
Management interface Ethernet In-band
Bluetooth
Total non-blocking throughput 64 Gbps
Switching capacity 128 Gbps
Forwarding rate 95.23 Mpps
Power method (1) Universal AC input, 100-240V AC, 4.4A Max., 50/60 Hz
(1) Power TransPort DC input 27V DC, 9.3A
Power supply AC/DC, Internal, 250W
Supported voltage range 100—240V AC
Max. power consumption 30W (Excluding PoE output)
ESD/EMP protection Air: ± 15 kV, contact: ± 8 kV
LCM display (1) 1.3" touchscreen
Ambient operating temperature -10 to 50° C (14 to 122° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
PoE
PoE interface (16) 27V passive PoE: 2-pair (Pins 4, 5+/7, 8-) or 4-pair (Pins 1, 2, 4, 5+/3, 6, 7, 8-); Ports 1 to 16
Total available PoE 220W
Max. passive PoE wattage per port 30W/27V DC
Passive PoE voltage range 27V DC
LEDs
RJ45 data ports PoE
Speed/link/activity
SFP+ data ports Speed/link/activity
Software
Management application UISP: Version 1.5.7 and later
