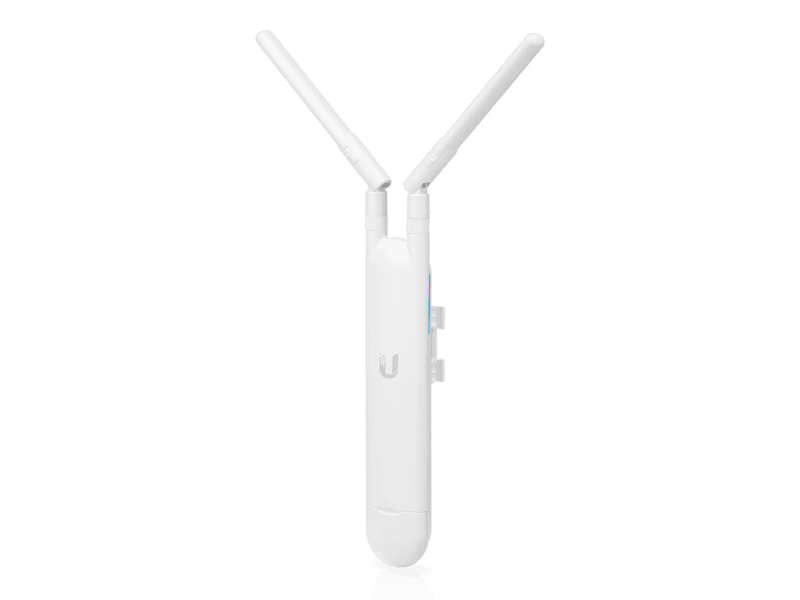

Ubiquiti UniFi AC Mesh Outdoor Access Point

UbiquitiSKU: UAP-AC-M

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$197.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

Overview

Mesh compatible, customizable antennas, and an affordable price.
- 140 m² (1,500 ft²) coverage
- 100+ connected devices
- WiFi5 (2x2 MIMO)
- Powered using PoE*
- Detachable antenna, optional UMA-D antenna
*PoE power adapter included with single unit purchases.

Specifications

Mechanical
Dimensions 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4")
Weight 152 g (5.4 oz)
Hardware
Networking interface (1) GbE port
Management interface Ethernet
Bluetooth
Power method 24V passive PoE (Pairs 4, 5+; 7, 8 return)
PoE alternative A (Pairs 1, 2+; 3, 6 return)
Power supply Gigabit PoE adapter 24V, 0.5A*
*5-packs do not come with PoE adapters.
Supported voltage range 44—57V DC
Max. power consumption 8.5W
Max. TX power
2.4 GHz
5 GHz

20 dBm
20 dBm
MIMO
2.4 GHz
5 GHz

2 x 2
2 x 2
Throughput rate
2.4 GHz
5 GHz

300 Mbps
867 Mbps
Antenna gain
2.4 GHz
5 GHz

3 dBi
4 dBi
Button Factory reset
Mounting Wall/pole/fast-mount (Included)
Operating temperature -30 to 70° C (-22 to 158° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC, UKCA
Software
WiFi standards 802.11a/b/g/n/ac
Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
VLAN 802.1Q
BSSID Up to 4 per radio
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Power save Supported
WMM Voice, video, best effort, and background
Concurrent clients 100+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
