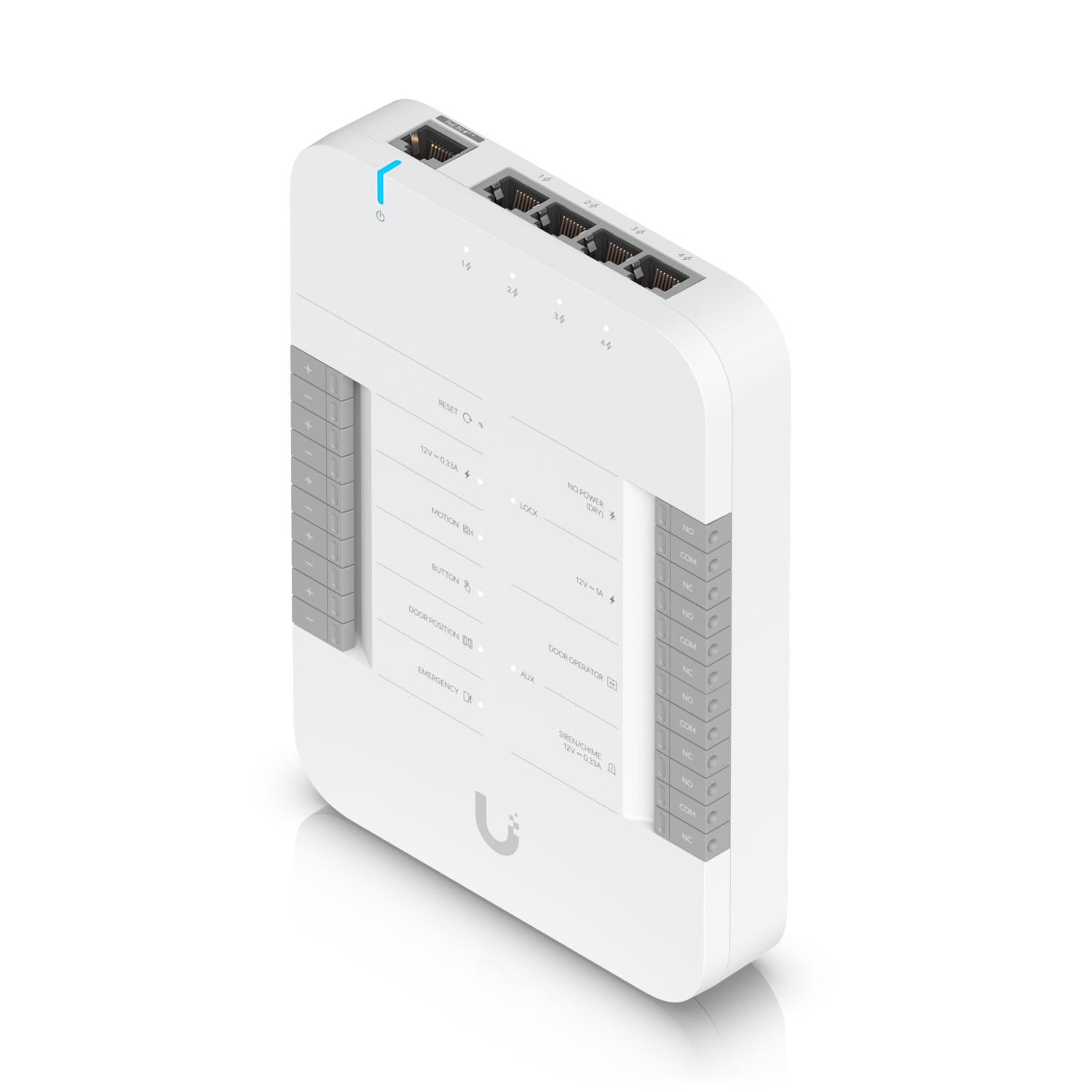

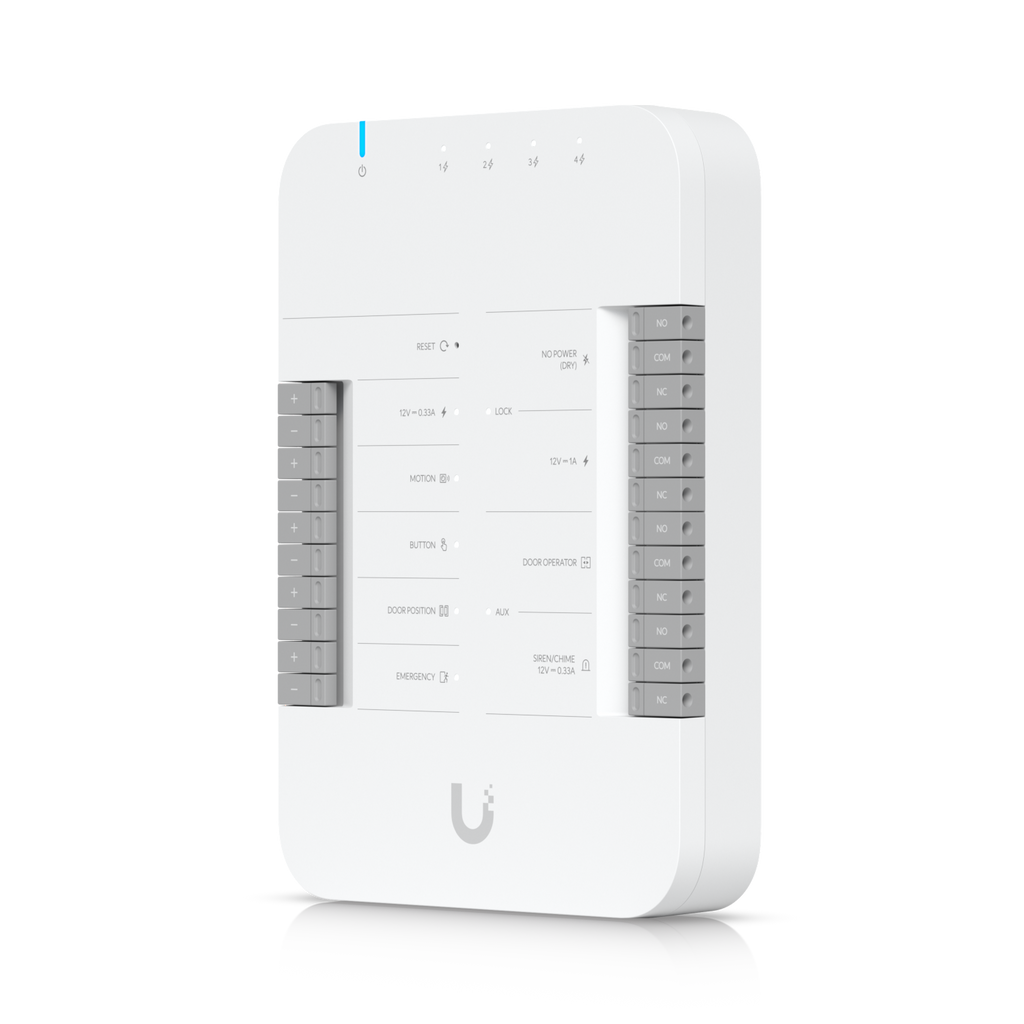

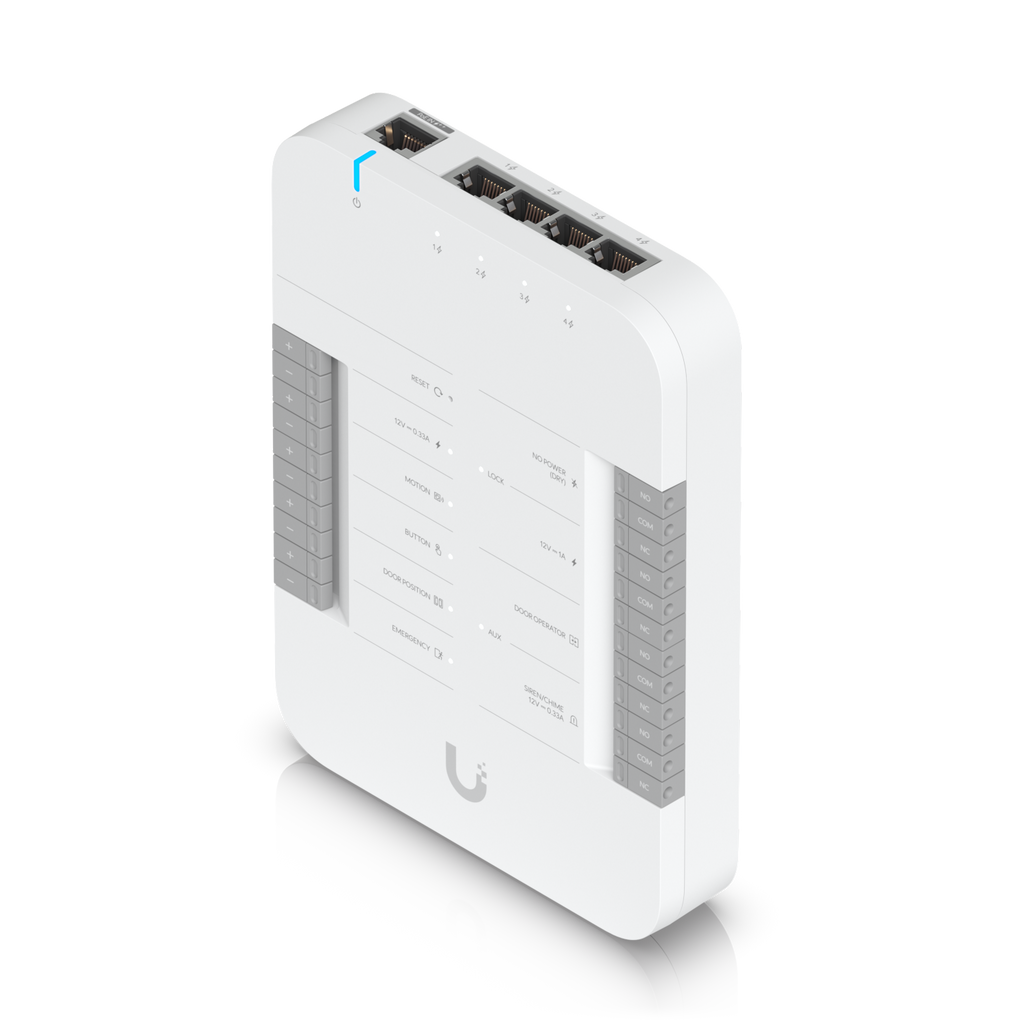

Door Hub
UA-Hub-Door
A single-door mechanism that provides complete entry and exit control via connected Access Readers.
Door Hub
UA-Hub-Door
A single-door mechanism that provides complete entry and exit control via connected Access Readers.
UA-Hub-Door Specifications | |
---|---|
Mechanical | |
Dimensions | 174.9 × 126 × 32.9 mm (6.9 × 5 × 1.3") |
Weight | 363 g (12.8 oz) |
Enclosure Material | Polycarbonate |

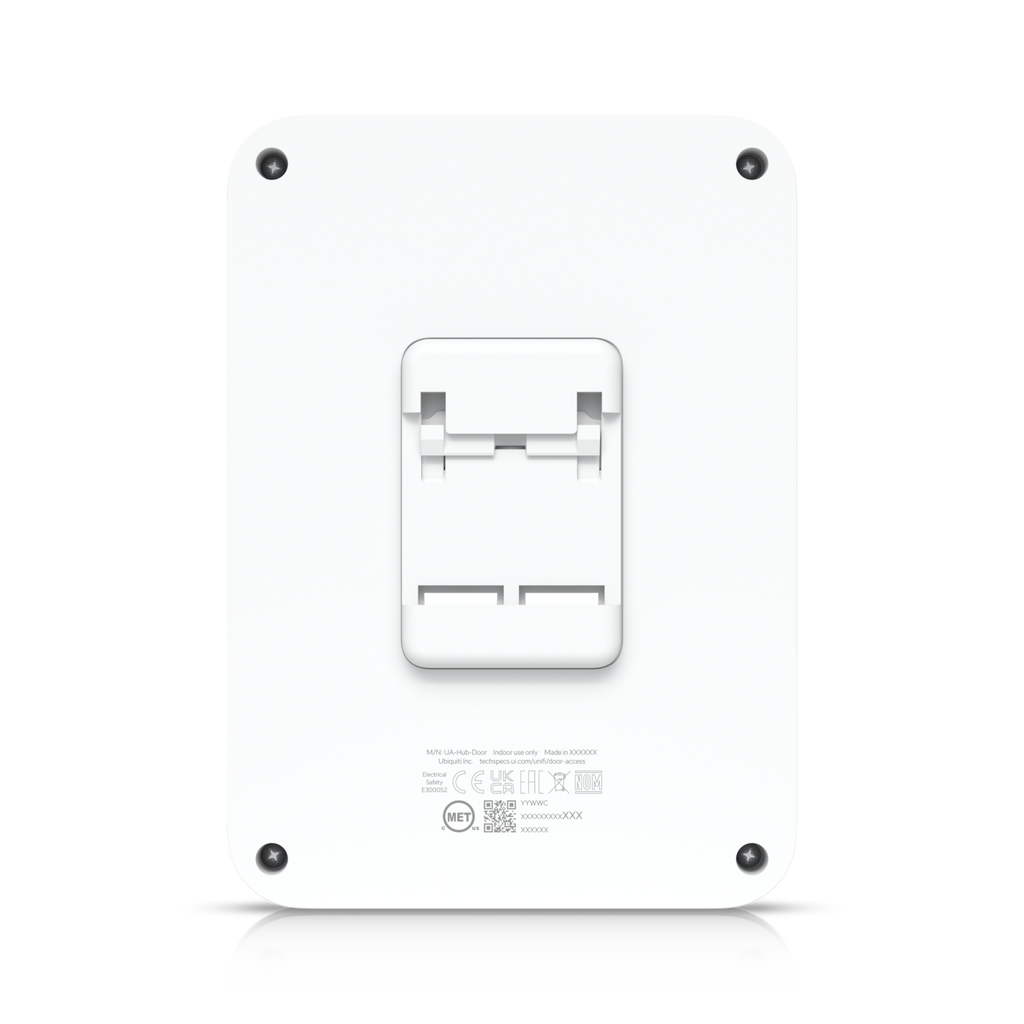

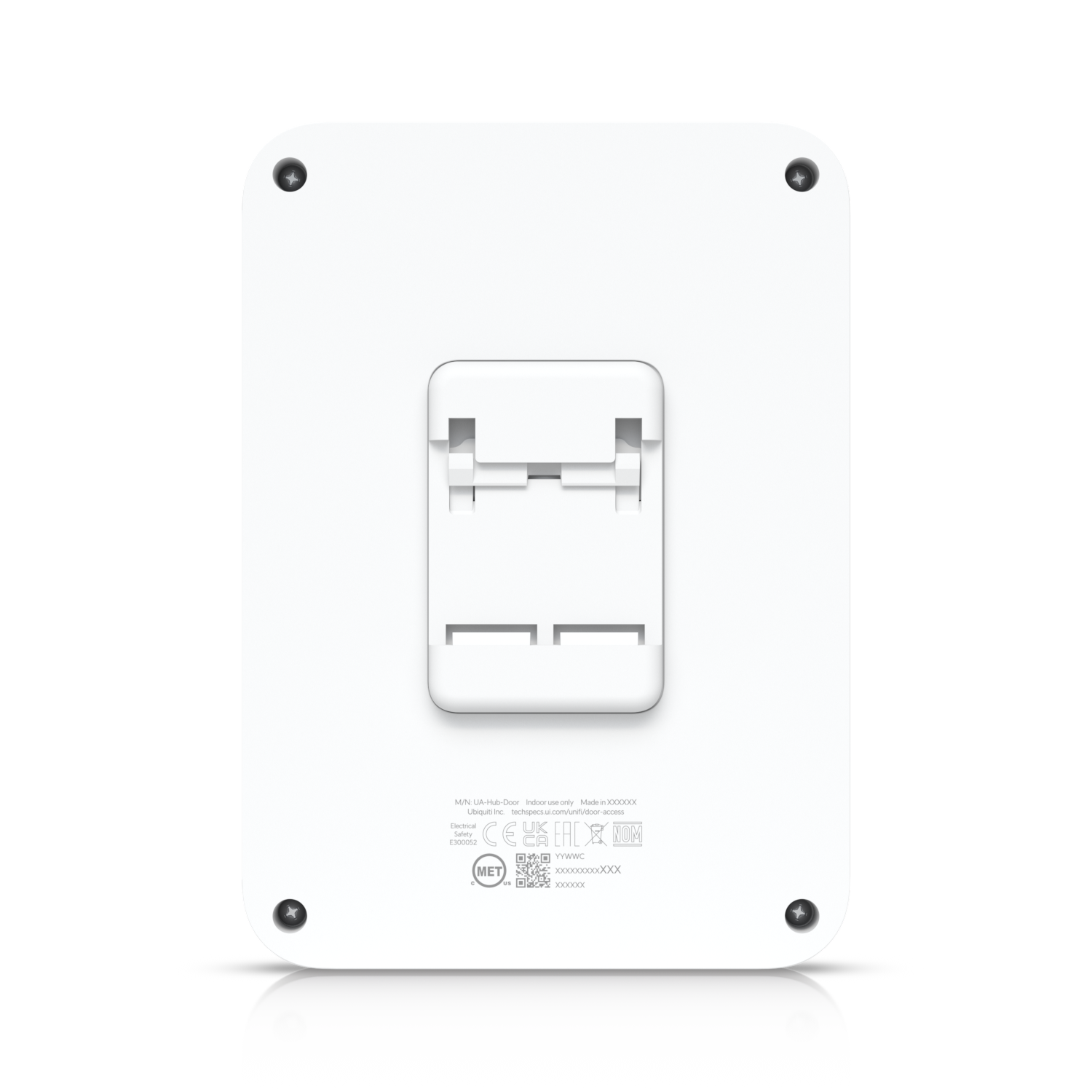

Mounting | DIN-rail (included) |
Hardware Interfaces | |

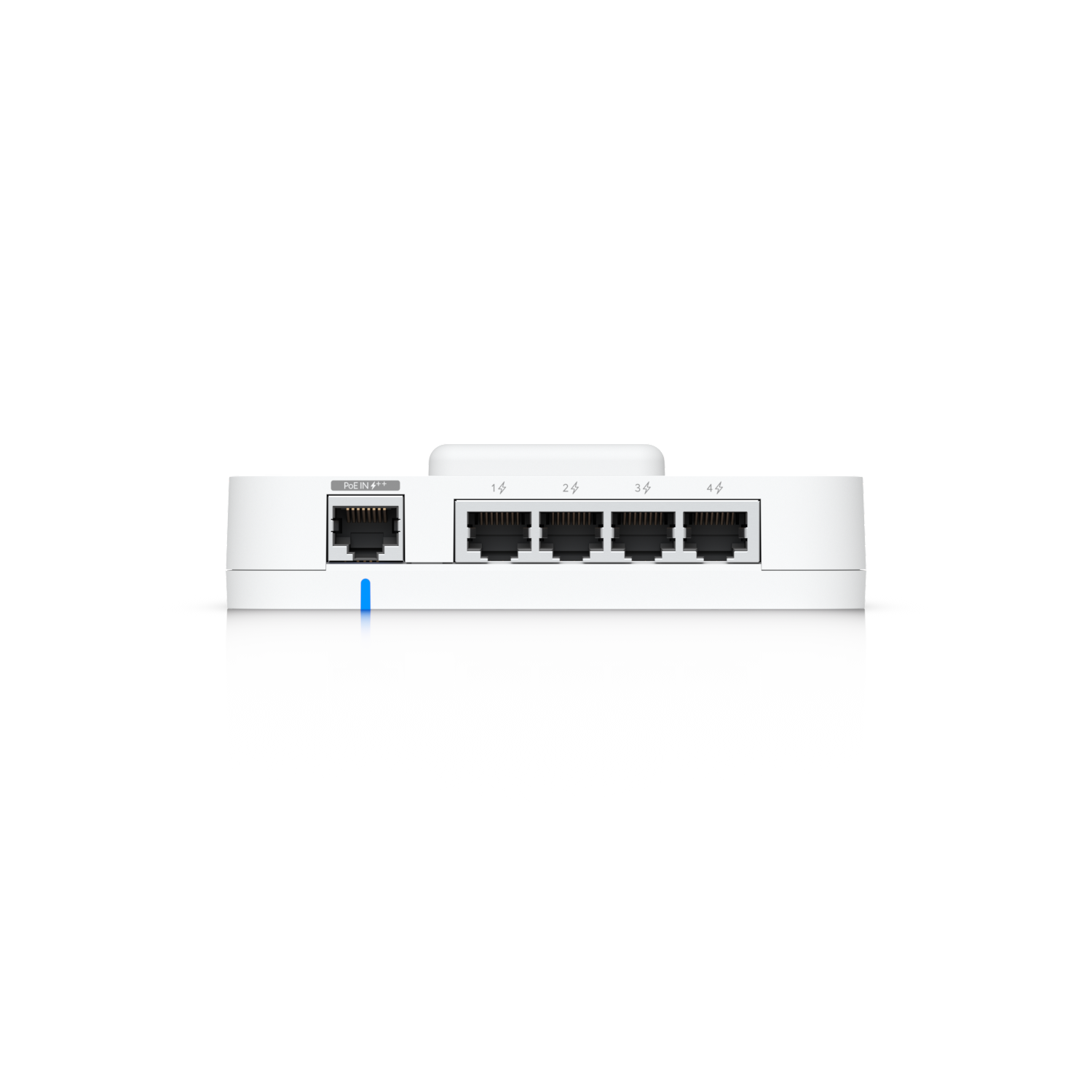

Networking Interface | (5) 10/100/1000 Base-T Ethernet ports |
PoE Input | (1) PoE++ input, 50V DC, 1A |
PoE Output | (4) PoE ports, 50V DC, 30W per port (max 45W aggregated) |

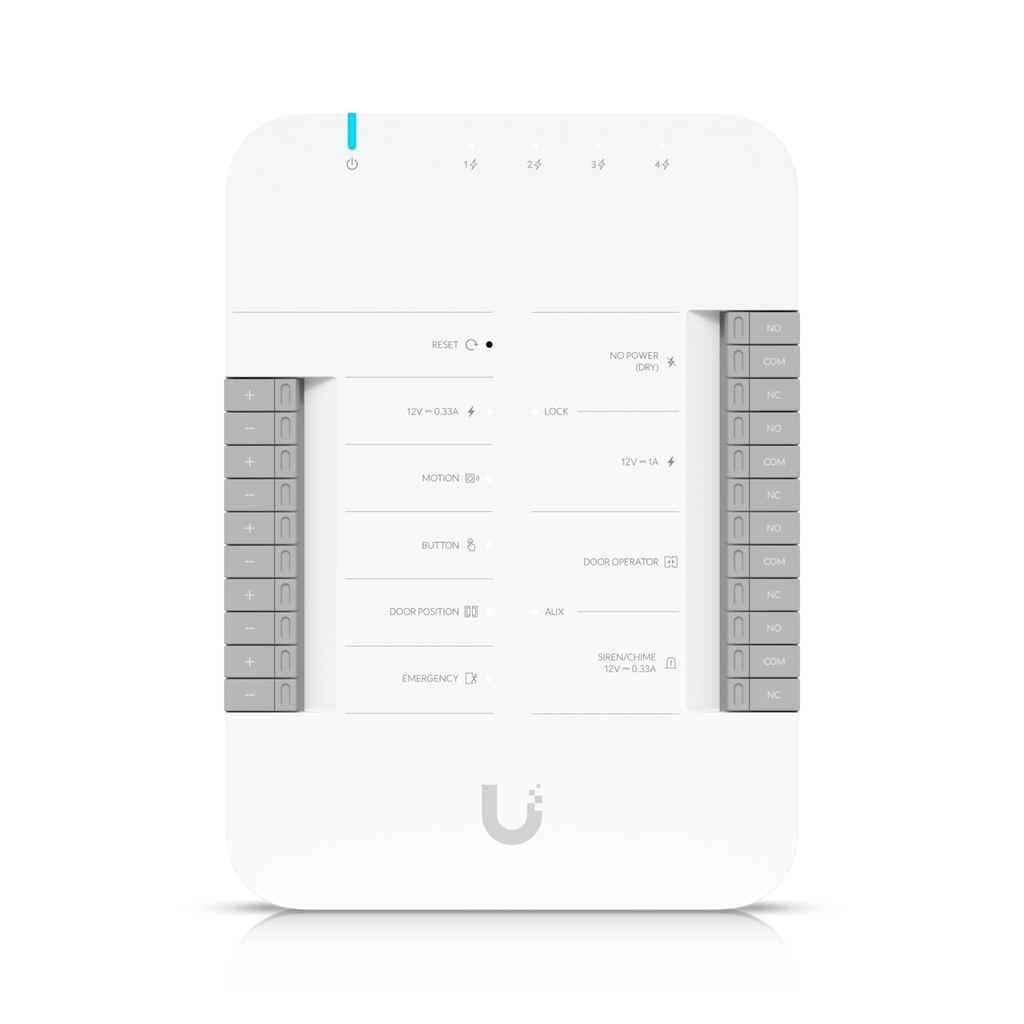

Digital Inputs | Request to exit, request to enter, remote release, door position sensor |
Dry Output Relays | Lock: 30V DC, 1A / Aux: 30V DC, 1A |
Powered Output Relays | Lock: 12V DC, 1A / Aux: 12V DC, 0.33A |
Power | |
Power Method | PoE++ (IEEE 802.3bt) |
Max Power Consumption | 30W (without PoE output) 50W (with PoE output) |
Environmental | |
Operating Temperature | 0 to 40°C (32 to 104°F) |
Operating Humidity | 5 to 95% noncondensing |
Indoor/Outdoor Use | Indoor only |
Features | |
Supported Doors | 1 |
Management Platform | UniFi Access (Web & Mobile) |
Button | Factory reset |
LED Indicators | White / Blue (status) |
Compliance | |
Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
NDAA Compliant | ✓ |
