Description
Overview

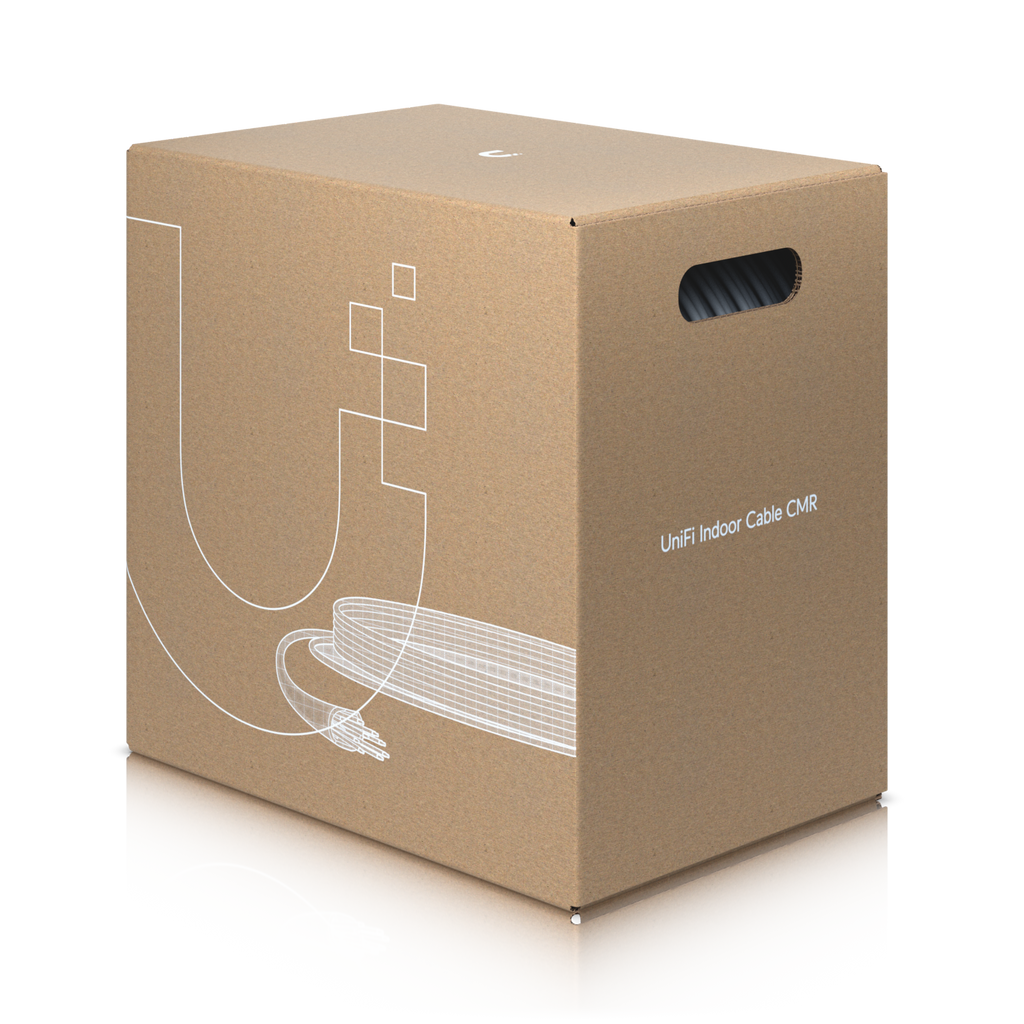

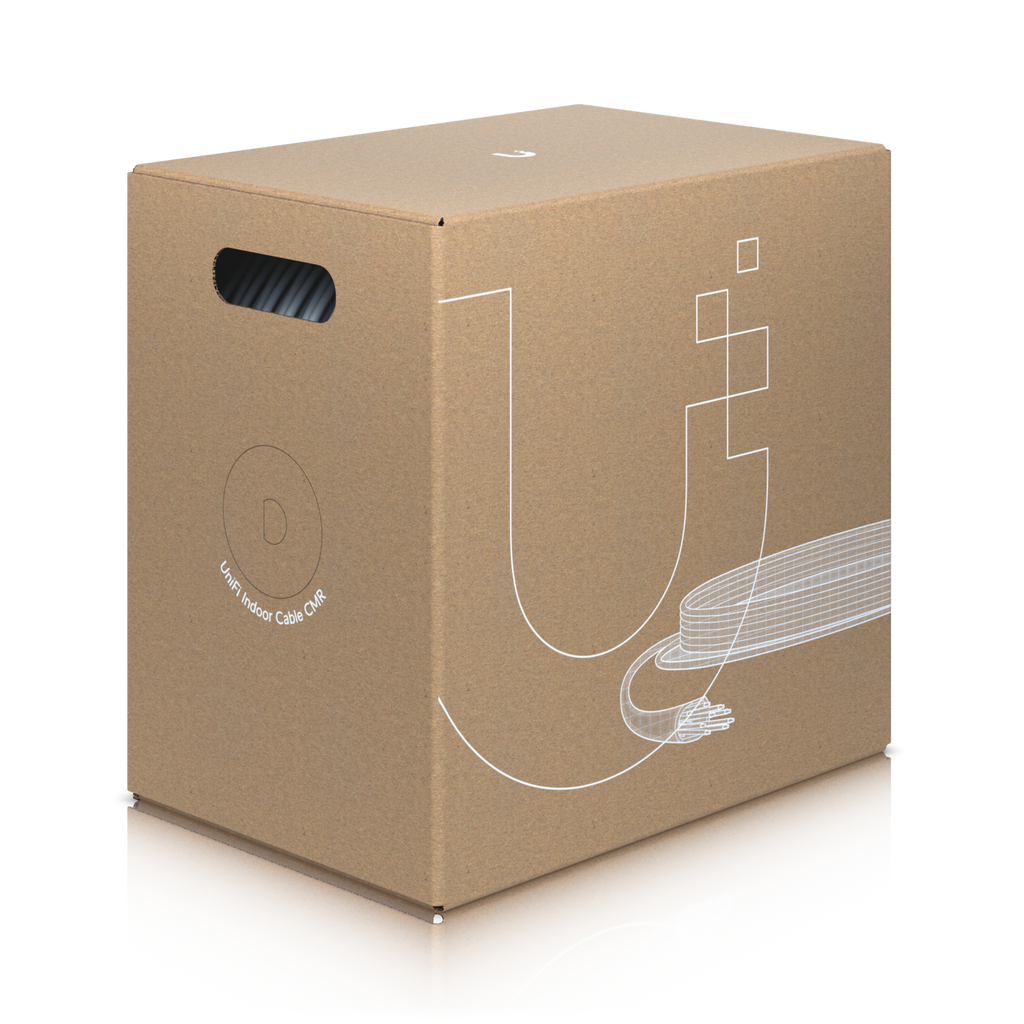

UniFi Indoor Cable Cat6 CMR
U-Cable-C6-CMR
Category 6 Ethernet cable for high-speed, indoor deployments
Category 6 UTP communications multipurpose cable
Riser (CMR)-rated, fire-resistant jacket
Anti-crosstalk divider
Cable length 305 m
UniFi Indoor Cable Cat6 CMR
U-Cable-C6-CMR
Category 6 Ethernet cable for high-speed, indoor deployments
Category 6 UTP communications multipurpose cable
Riser (CMR)-rated, fire-resistant jacket
Anti-crosstalk divider
Cable length 305 m
U-Cable-C6-CMR Specifications | |
---|---|
Product Type | Indoor Ethernet Cable |
Cable Type | Category 6 UTP (Unshielded Twisted Pair) |
Flame Rating | CMR (Communications Multipurpose Cable, Riser) |
Length | 305 m (1,000 ft) |
Color | White |
Conductor Type | Solid bare copper |
Wire Gauge | 23 AWG |
Jacket Material | PVC |
Jacket Diameter | 6.0 ± 0.2 mm |
Bend Radius | Minimum 24 mm |
Pulling Tension | Maximum 110 N |
Anti-Crosstalk Divider | ✓ |
Ripcord | ✓ |
Reference Bandwidth | Up to 600 MHz |
Ethernet Support | 10/100/1000BASE-T |
Installation Temperature | 0 to 60°C (32 to 140°F) |
Operating Temperature | −20 to 60°C (−4 to 140°F) |
Storage Temperature | −20 to 75°C (−4 to 167°F) |
Box Dimensions | 474 × 346 × 458 mm (18.7 × 13.6 × 18") |
Box Weight | 14.8 kg (32.7 lb) |
Certifications & Standards | ANSI/TIA-568-C.2 (2009) ISO/IEC 11801 (Edition 2.2) IEC 61156-5 (Edition 2.1) UL 1666 (CMR), UL 444 CSA 22.2 NO.214 EU RoHS2 Directive 2011/65/EU EU LVD Directive 2006/95/EC |
NDAA Compliant | ✓ |
