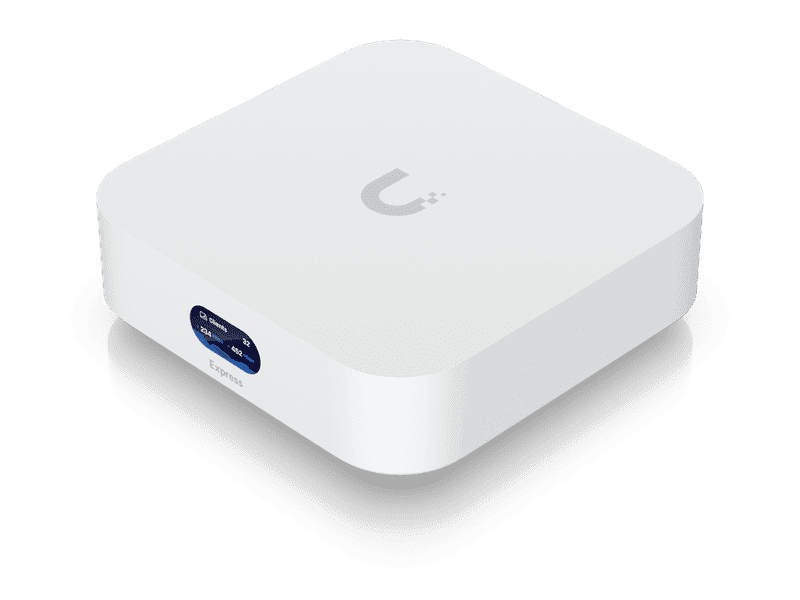

Ubiquiti UniFi Express Cloud Gateway WiFi 6 Access Point [UX]

UbiquitiSKU: UX

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$261.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

Ubiquiti UniFi Express Cloud Gateway WiFi 6 Access Point [UX]

Impressively compact UniFi Cloud Gateway and WiFi 6 access point that runs UniFi Network. Powers an entire network or simply meshes as an access point.

- Built-in WiFi 6 AP
- 140 m² (1,500 ft²) single-unit coverage
- 50+ connected WiFi devices*
- (1) GbE RJ45 WAN port
- (1) GbE RJ45 LAN port to extend network
- 0.96" LCM status display
- Manages up to four additional UniFi Network devices when operated as a gateway
- Managed with UniFi Network 8.0.7 and later

*Performance may be degraded with advanced gateway features (e.g., Traffic Identification).
Note. EU Store version includes EU power plug only.



Specifications

Mechanical
Dimensions 98 x 98 x 30 mm (3.6 x 3.6 x 1.2")
Weight 302 g (10.7 oz)
Enclosure material Polycarbonate
Hardware
Management interface Ethernet
Bluetooth
Networking interface LAN:
(1) GbE RJ45 port

WAN:
(1) GbE RJ45 port
Power method USB type C (5V DC/3A)
Max. power consumption 10W
Max. TX power
2.4 GHz
5 GHz

22 dBm
25 dBm
MIMO
2.4 GHz
5 GHz

2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
5 GHz

573.5 Mbps
2.4 Gbps
Antenna gain
2.4 GHz
5 GHz

4 dBi
5.15 dBi
Antennas (2) Internal 2.4G/5G WiFi dual-band antenna
(1) Internal 2.4G single-band BT antenna
LCM display 0.96" status display
Button Factory reset
Ambient operating temperature -10 to 45° C (14 to 113° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Gateway Features
Performance Internet quality and outage reporting
Next-generation security Application-aware firewall rules
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
Software
WiFi standards 802.11a/b/g/n/ac/ax
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID Console mode: 3 per band
Standard AP: 8 per band
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 50+*
*Performance may be degraded with advanced gateway features (e.g., Traffic Identification).
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Application Requirements
UniFi Network Version 8.0.7 and later
