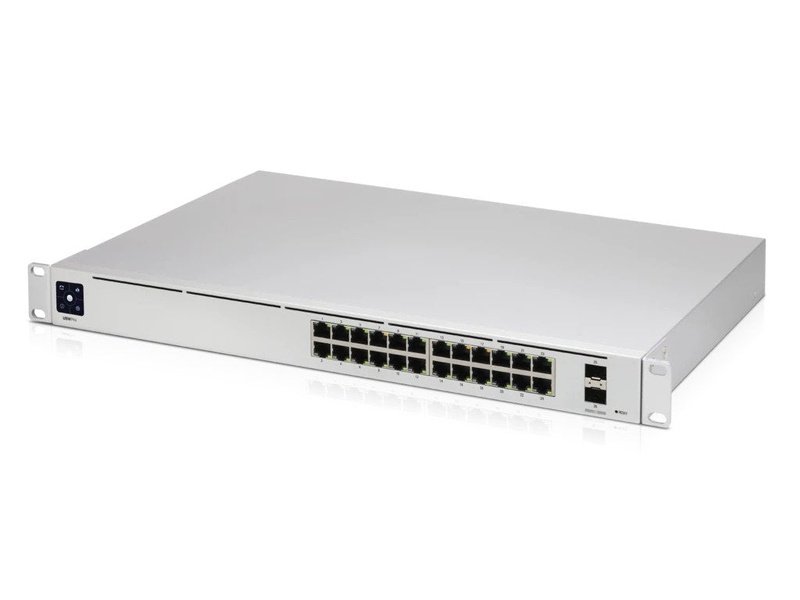

Ubiquiti UniFi Pro 24-Port Managed Switch w/ 2x10G SFP+

UbiquitiSKU: USW-Pro-24

Ubiquiti Unifi Pro Gigabit PoE+ Switch, 16x PoE+ Ports, 8x PoE++ Ports, 2x SFP+ Ports, Up to Layer 3 Management, Total PoE Budget 400 Watt

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$652.00
Contact Us for ETA

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Ubiquiti UniFi PRO 24-Port Managed Switch w/ 2x10G SFP+ [USW-Pro-24]

Pro 24


A 24-port, Layer 3 switch supporting 10G SFP+ connections with fanless cooling.
  • (24) GbE ports
  • (2) 10G SFP+ ports
  • DC power backup-ready
  • Layer 3 switching
  • Silent cooling



Specifications

Mechanical
Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Weight Without mounting brackets: 3.5 kg (7.7 lb)
With mounting brackets: 3.6 kg (7.9 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (24) GbE RJ45 ports
(2) 1/10G SFP+ ports
Total non-blocking throughput 44 Gbps
Switching capacity 88 Gbps
Forwarding rate 65.472 Mpps
Power method (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input 11.5V DC, 2.61A
Power supply AC/DC, internal, 36W
Supported voltage range 100—240V AC
Max. power consumption 30W
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Shock and vibration ETSI300-019-1.4 Standard
Operating temperature -5 to 45° C (23 to 113° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet Speed/link/activity
SFP+ Speed/link/activity
RPS Status
Application Requirements
UniFi Network Version 5.12.11 and later
