Description
Overview

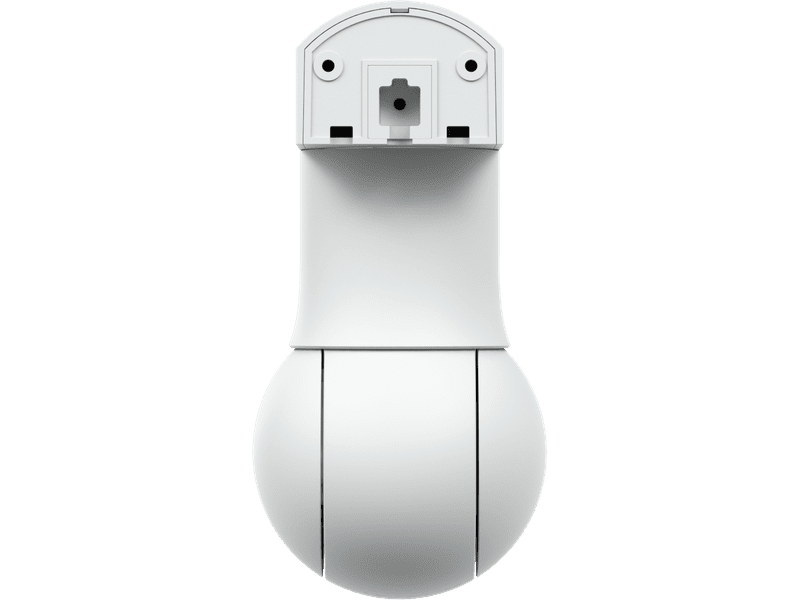

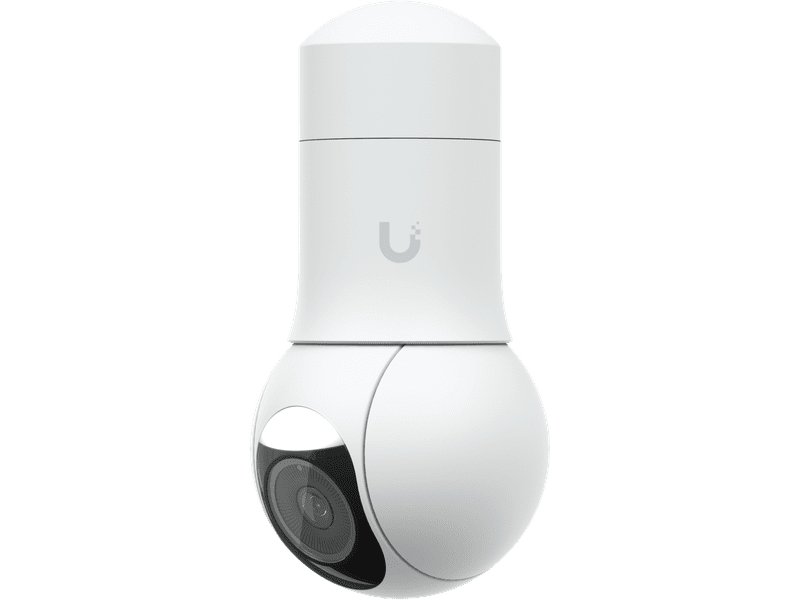

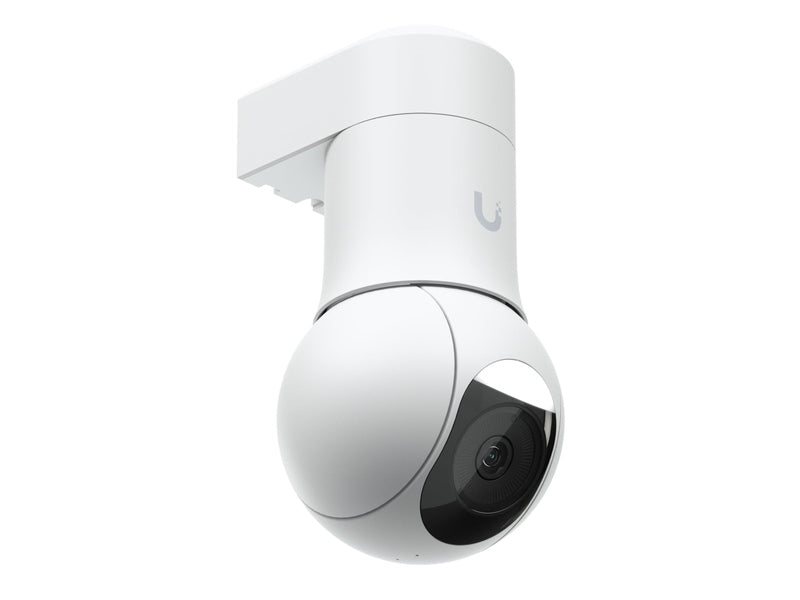

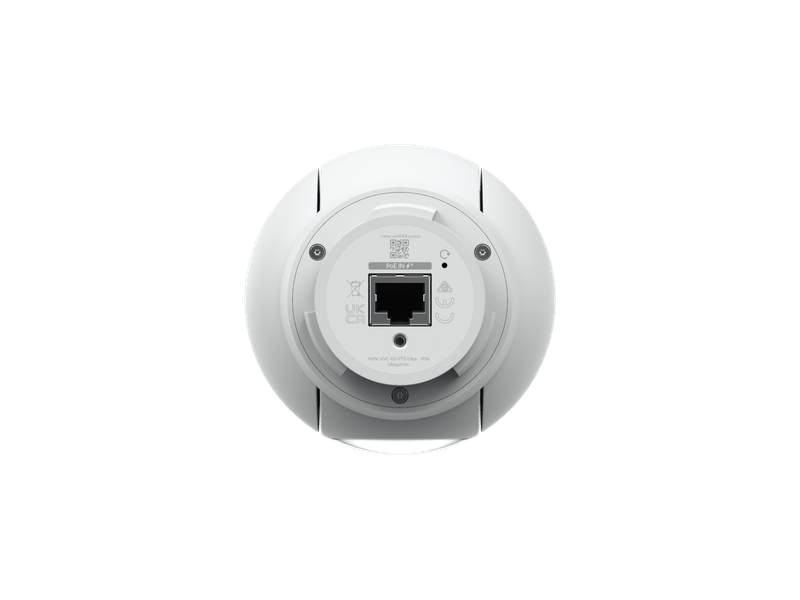

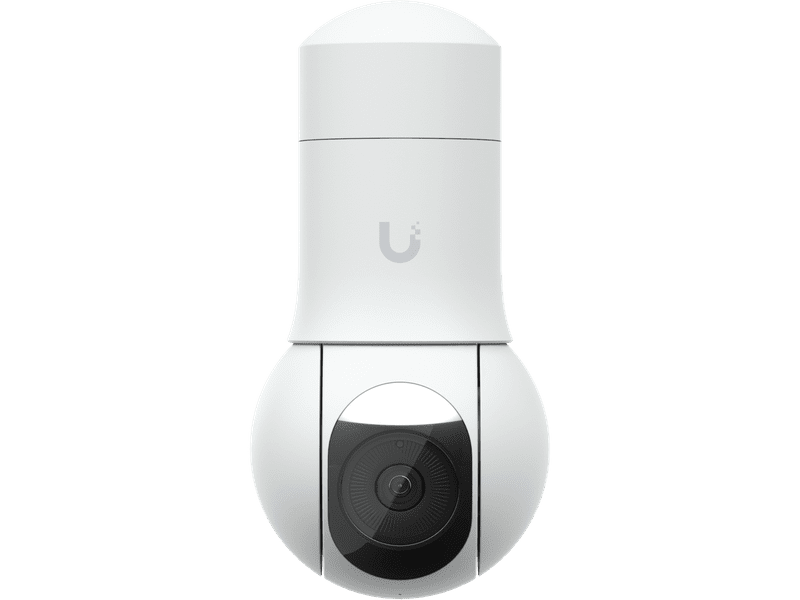

G5 PTZ
UVC-G5-PTZ
Compact, all-weather camera with ultra-low latency pan-tilt-zoom control and versatile mounting options.
G5 PTZ
UVC-G5-PTZ
Compact, all-weather camera with ultra-low latency pan-tilt-zoom control and versatile mounting options.
UVC-G5-PTZ Specifications | |
---|---|
Product Type | Pan-Tilt-Zoom IP Surveillance Camera |
Smart Detection | ✓ (People, Vehicles, Animals) |
Night Vision | IR up to 20 m (65 ft) |
Zoom | 2× Optical Zoom |
Audio | Microphone (can be disabled) |
Weatherproofing | IP66 |
Tamper Resistance | IK04 |
Mounting Options | Wall, pole (included) Conduit adapter, surface, in-ceiling, pendant, corner (optional) |
Sensor | 5MP 1/2.7" CMOS |
Lens | F 3.42–6.85 mm; ƒ/1.85–ƒ/2.4 |
Resolution | 4MP (2688 × 1512, 16:9) |
Frame Rate | Max. 30 FPS |
Field of View | Wide: H: 99.7°, V: 51.9°, D: 121° Tele: H: 45.5°, V: 25.4°, D: 52.4° |
Pan-Tilt Range | Pan: 350°, Tilt: 100° |
Illumination | IR + White LED with IR cut filter |
Floodlight Output | 400 lumens |
Networking Interface | 10/100 MbE RJ45 |
Power Method | PoE+ |
Supported Voltage Range | 37–57V DC |
Max. Power Consumption | 14W |
Button | Factory-reset |
Dimensions | Without mount: Ø90 × 152.5 mm (Ø3.5 × 6") With mount: 90 × 94 × 179.5 mm (3.5 × 3.7 × 7") |
Weight | Without mount: 580 g (1.3 lb) With mount: 650 g (1.4 lb) |
Pole Mount Diameter | 38–50 mm (1.5–2") |
Enclosure Material | Aluminum alloy, polycarbonate |
Mount Material | Wall: polycarbonate; Pole: aluminum alloy |
Operating Temperature | -30 to 45°C (-22 to 113°F) |
Operating Humidity | 0 to 90% noncondensing |
Certifications | CE, FCC, IC |
NDAA Compliant | ✓ |
Management Platform | UniFi Protect (Web & Mobile) |
