AC SHD

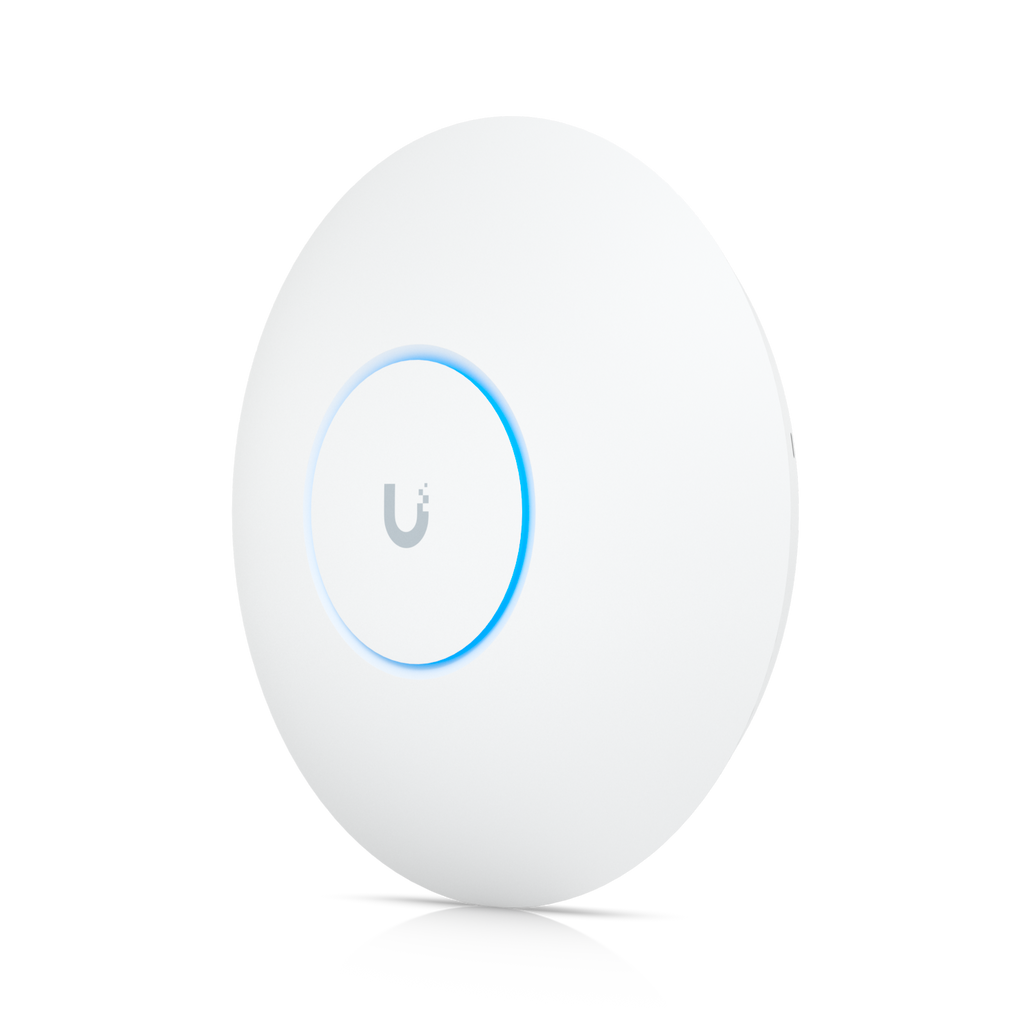

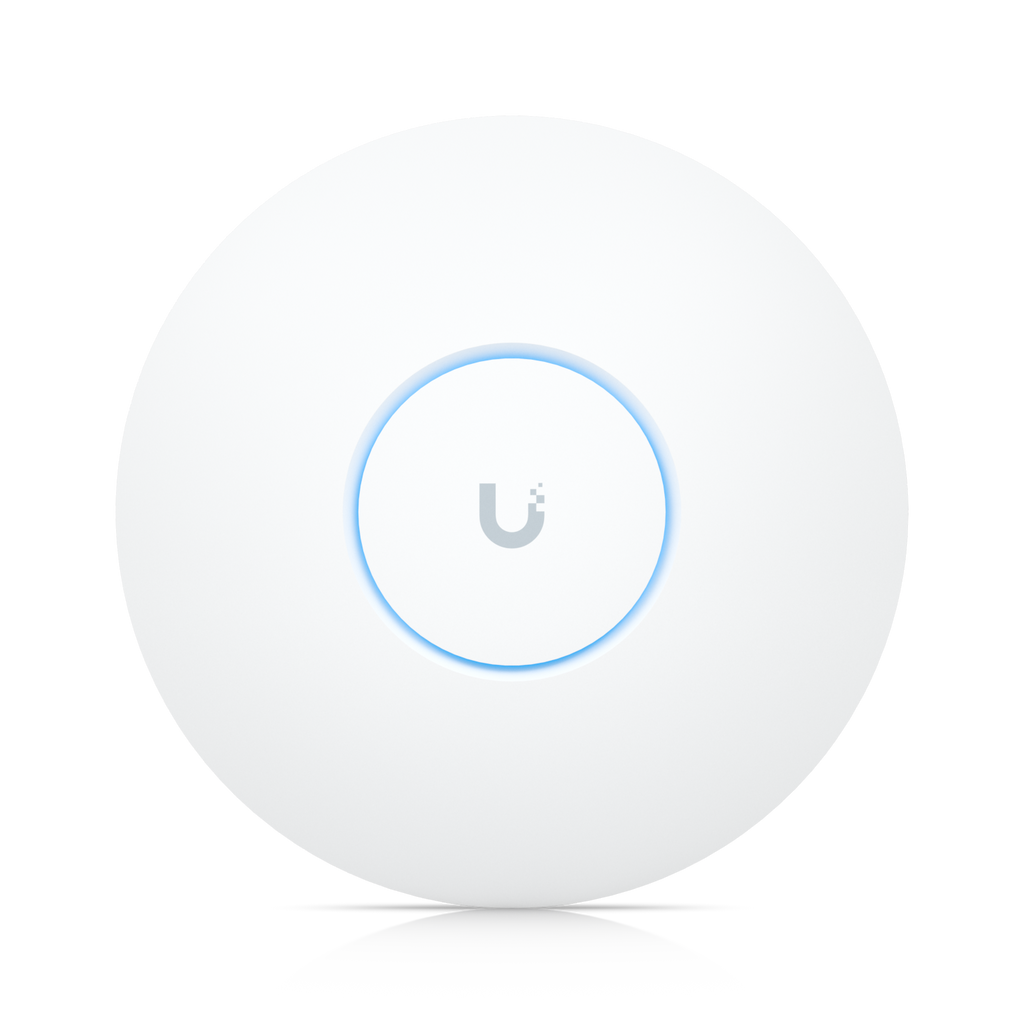

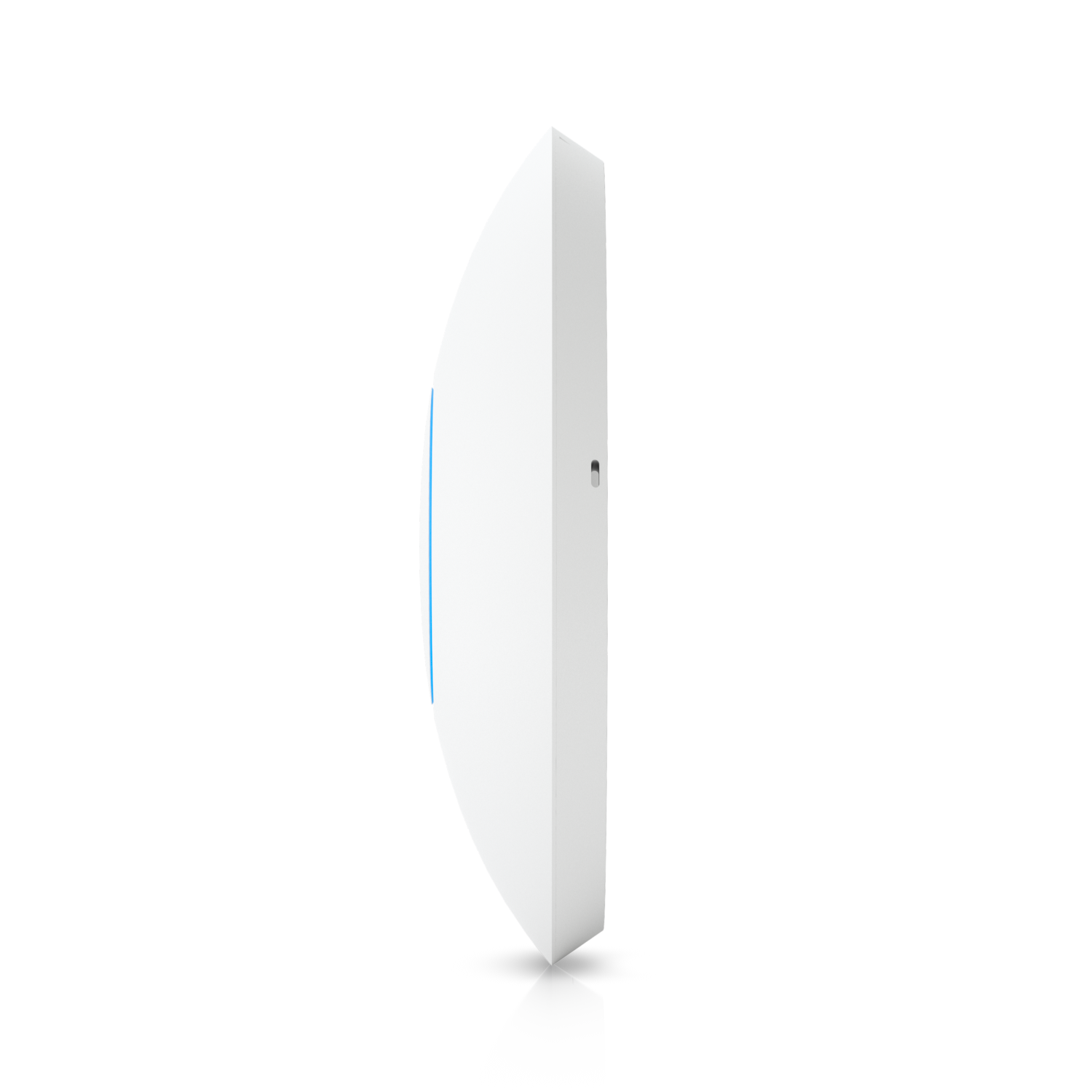

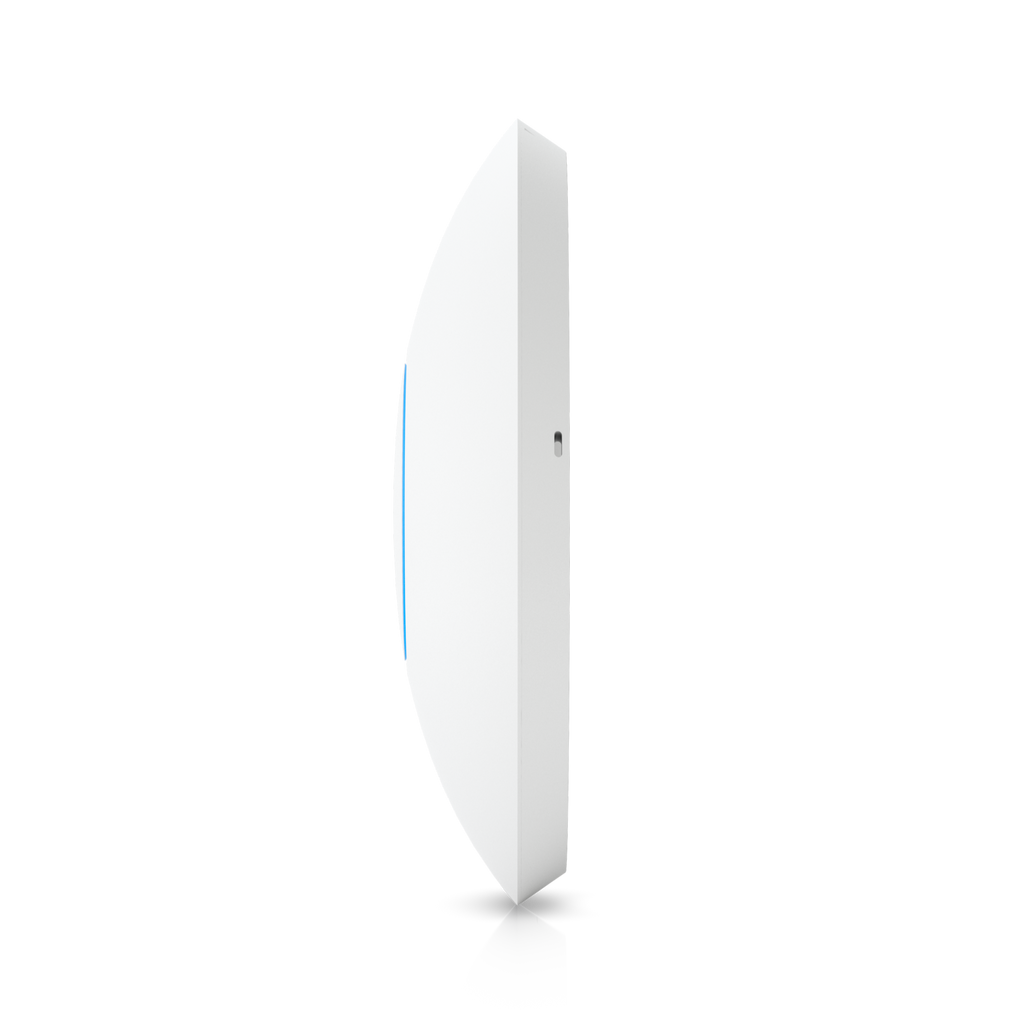

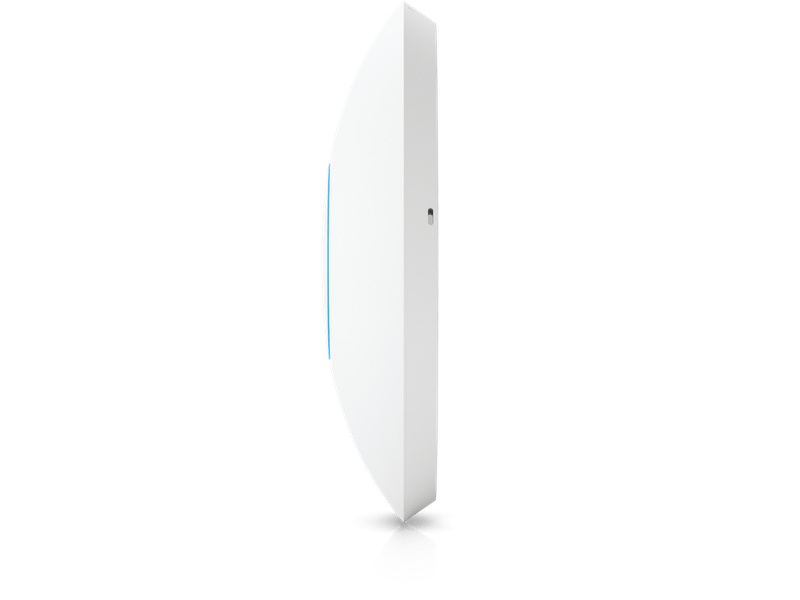

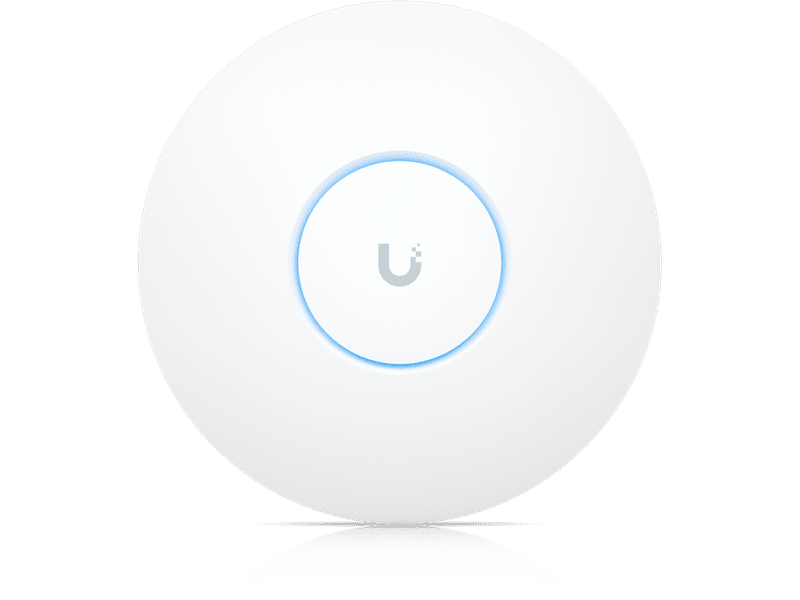

UAP-AC-SHD
Ceiling-mounted WiFi 5 AP with 8 spatial streams designed to support high client density environments.
Note. PoE power adapter included with single unit purchases.
AC SHD
UAP-AC-SHD
Ceiling-mounted WiFi 5 AP with 8 spatial streams designed to support high client density environments.
Note. PoE power adapter included with single unit purchases.
| UAP-AC-SHD Specifications | |
|---|---|
| Mechanical | |
| Dimensions | Ø220 × 48.1 mm (Ø8.7 × 1.9") |
| Weight | 700 g (1.5 lb) / 830 g (1.8 lb) with mount |
| Mounting | Ceiling or wall (Pro mount included) |
| Hardware | |

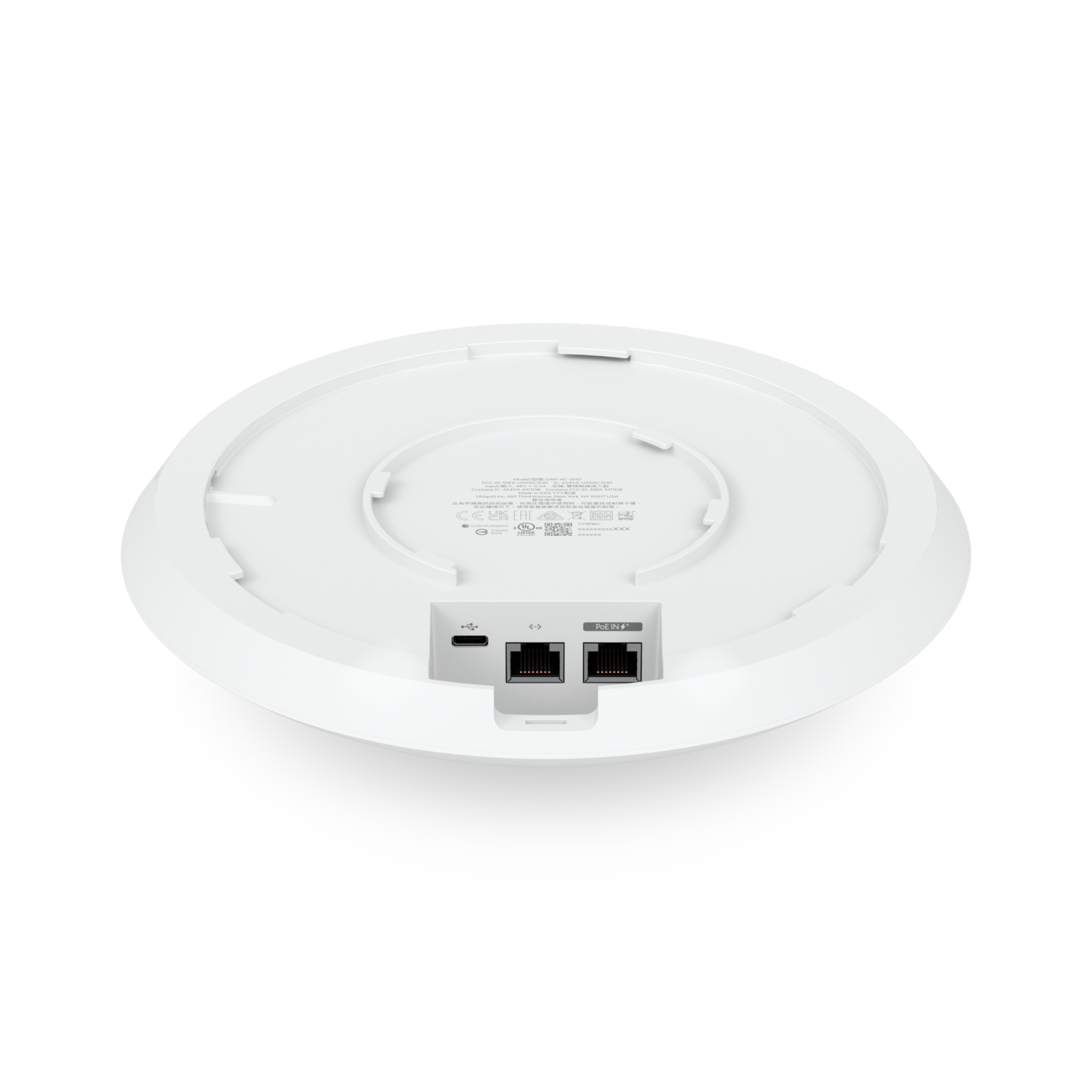

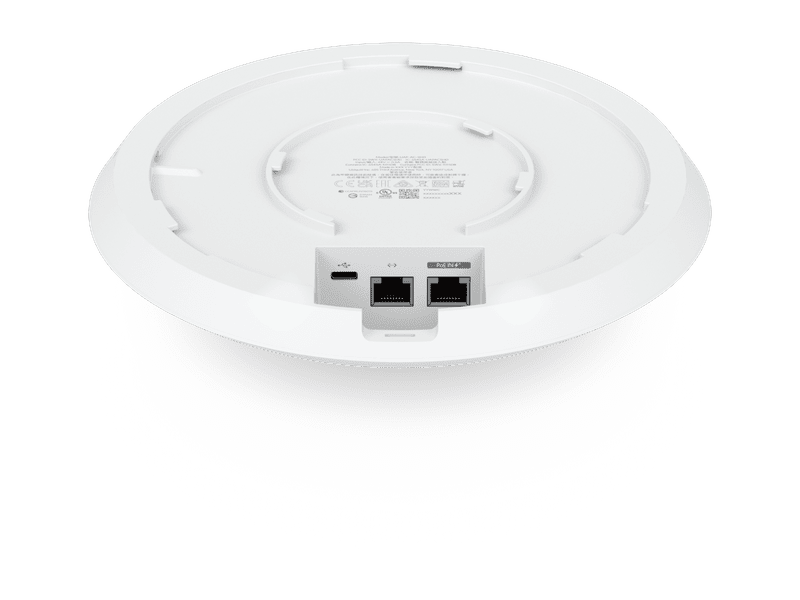

| Networking Interfaces | (2) Gigabit Ethernet RJ45 ports |
| Max Power Consumption | 20W |
| Power Method | 802.3at PoE+ |
| Supported Voltage Range | 44–57V DC |
| LEDs | System status |
| Button | Factory reset |
| Wireless | |
| Wi-Fi Standard | 802.11ac Wave 2 (Wi-Fi 5) |
| Spatial Streams | 8 total (4×4 MU-MIMO per band) |
| Max Data Rate | 5 GHz: 1.7 Gbps (80 MHz) 2.4 GHz: 800 Mbps (40 MHz) |
| Antenna Gain | 5 GHz: 6 dBi 2.4 GHz: 6 dBi |
| Max TX Power | 5 GHz: 25 dBm 2.4 GHz: 25 dBm |
| Channel Bandwidth | HT 20/40, VHT 20/40/80 MHz |
| Max BSSIDs | 8 per radio |
| Coverage Area | 140 m² (1,500 ft²) |
| Max Client Count | 1000+ |
| RF & Security Features | |
| Dedicated Security Radio | ✓ |
| Spectrum Analysis | ✓ |
| airTime Utilization Engine | ✓ |
| Advanced Radio Management | ✓ |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| Fast Roaming (802.11r) | ✓ |
| BSS Transition (802.11v) | ✓ |
| Radio Resource Management (802.11k) | ✓ |
| Software & Management | |
| Management Platform | UniFi Network (v6.0.45+) |
| Guest Portal Features | Captive portal, voucher, payment-based auth, PPSK, external portal server, branding |
| Client Isolation | ✓ |
| Wi-Fi Scheduling | ✓ |
| Dynamic VLAN | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Environmental | |
| Operating Temperature | -10 to 70°C (14 to 158°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Compliance | |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
