Ubiquiti UniFi Wi-Fi 6 Enterprise Access Point

UbiquitiSKU: U6-Enterprise

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$616.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Estimate shipping

Description

Overview

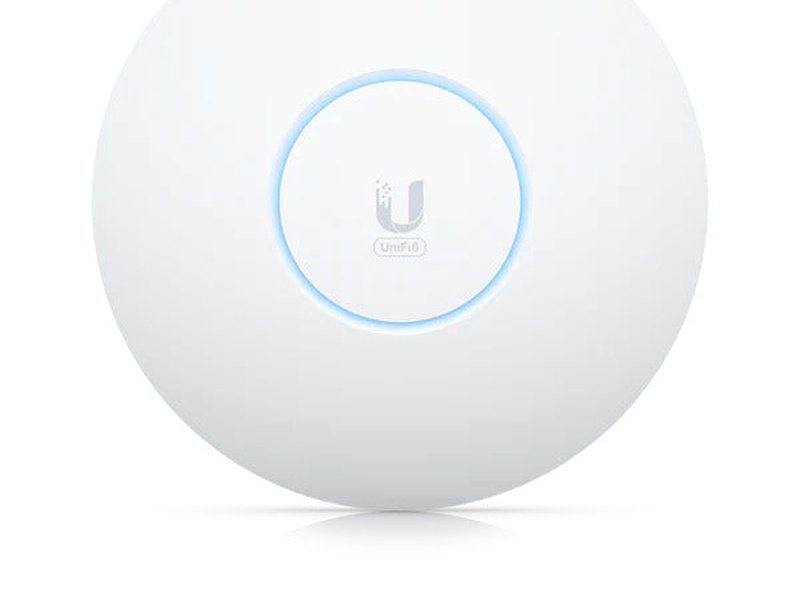

High-performance, ceiling-mounted WiFi 6E access point designed to provide seamless, multi-band coverage within high-density client environments.
- 140 m² (1,500 ft²) coverage
- 600+ connected devices
- WiFi6 (4x4 MIMO)
- Powered using PoE+
- Additional 6 GHz radio
- 2.5GbE uplink

Specifications

Mechanical
Dimensions Ø220 x 48 mm (Ø8.7 x 1.9")
Weight Without mount: 960 g (2.1 lb)
With mount: 1090 g (2.4 lb)
Enclosure materials Polycarbonate, aluminum
Mount material Stainless steel (SUS304)
Hardware
Networking interface (1) 2.5GbE RJ45 port
Management interface Ethernet
Bluetooth
Power method PoE+
Power supply UniFi PoE switch
48V, 0.5A PoE adapter (optional)
Supported voltage range 44—57V DC
Max. power consumption 22W
Max. TX power
2.4 GHz
5-7 GHz

22 dBm
26 dBm
MIMO
2.4 GHz
5 GHz
6 GHz

2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
5 GHz
6 GHz

573.5 Mbps
4.8 Gbps
4.8 Gbps
Antenna gain
2.4 GHz
5 GHz
6 GHz

3.2 dBi
5.3 dBi
6 dBi
LEDs White/blue
Button Reboot and factory-reset
Mounting Wall/ceiling (included)
Operating temperature -30 to 60° C (-22 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6/WiFi 6E
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 600+
Zero-wait DFS Yes*
*Supported with upcoming firmware versions.
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6/6E) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Application Requirements
UniFi Network Version 7.2.91 and later
