Description
Overview
Wall-mounted WiFi 6 AP with 6 spatial streams and a built-in 4‑port switch ideal for single-room coverage in hospitality environments.
Note. PoE+ input required for single-port PoE output.
Wall-mounted WiFi 6 AP with 6 spatial streams and a built-in 4‑port switch ideal for single-room coverage in hospitality environments.
Note. PoE+ input required for single-port PoE output.
| NHU-U6-IW-5 Specifications | |
|---|---|
| Product Type | Wall-mounted Wi-Fi 6 Access Point |
| Pack Quantity | 5 units |
| Coverage Area | Up to 115 m² (1,250 ft²) |
| Max Client Count | 300+ devices |
| Mounting | Wall (mount included) |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Spatial Streams | 6 total |
| MIMO | 5 GHz: 4×4 MU-MIMO 2.4 GHz: 2×2 MU-MIMO |
| Max Data Rate | 5 GHz: 4.8 Gbps 2.4 GHz: 573.5 Mbps |
| Antenna Gain | 5 GHz: 5.9 dBi 2.4 GHz: 5 dBi |
| Max TX Power | 5 GHz: 26 dBm 2.4 GHz: 22 dBm |
| Max BSSIDs | 8 per radio |
| Channel Bandwidth | HT/VHT/HE 20/40/80/160 MHz |

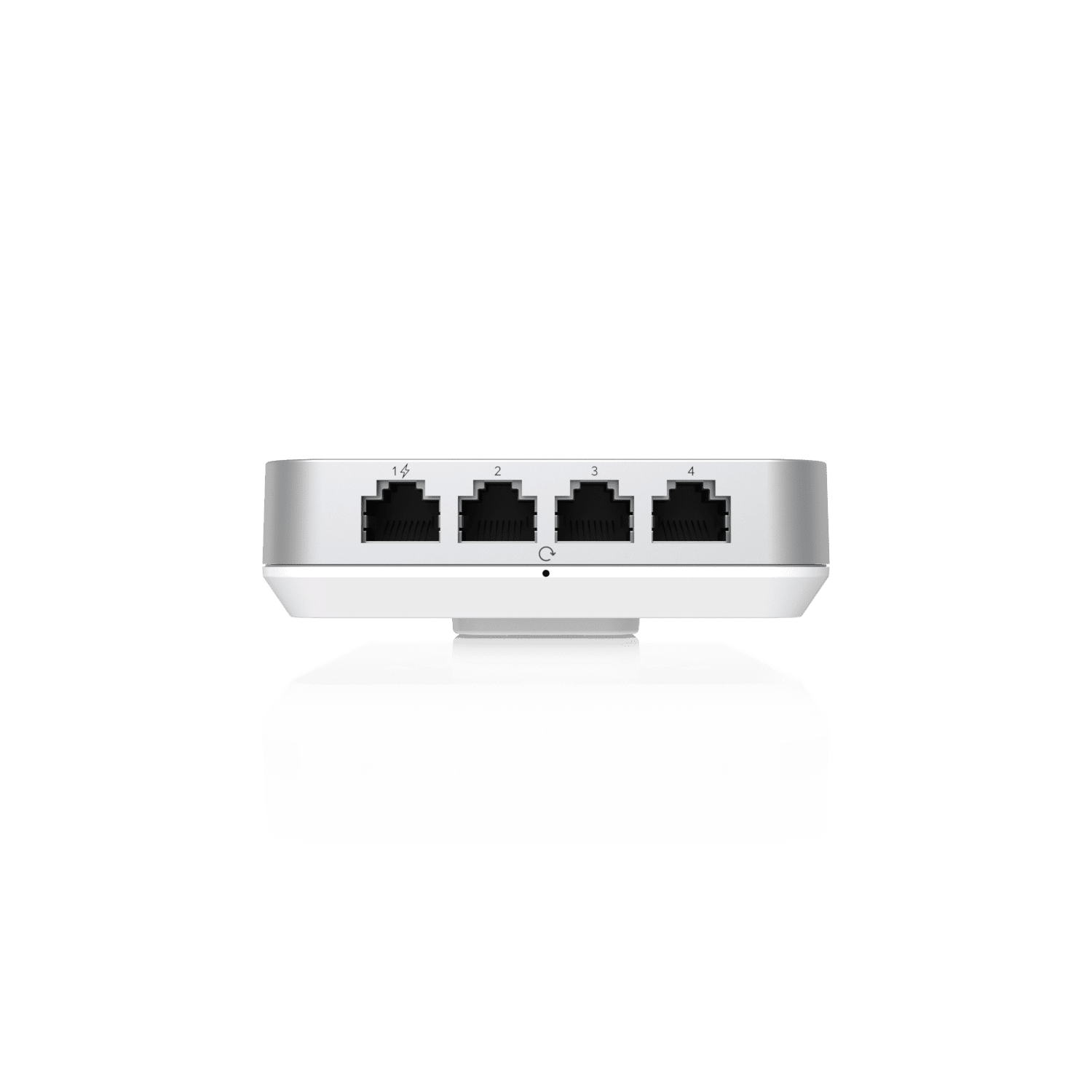

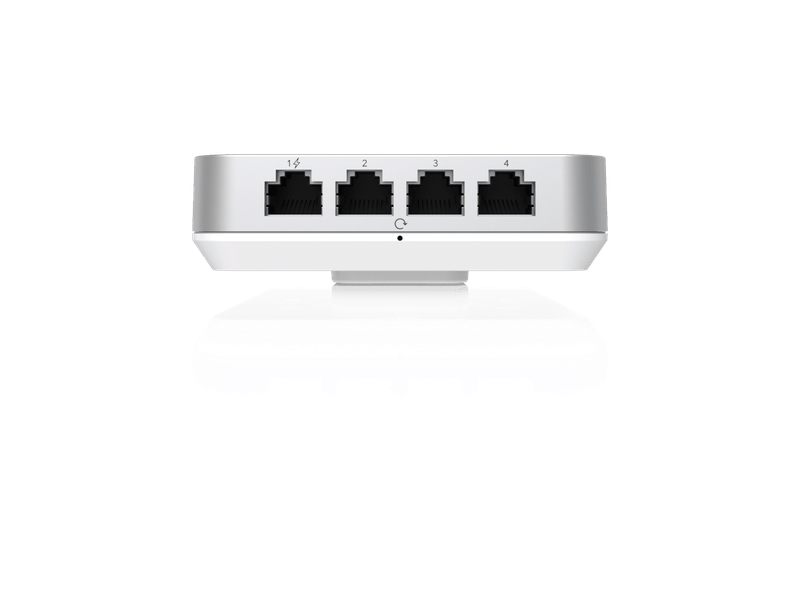

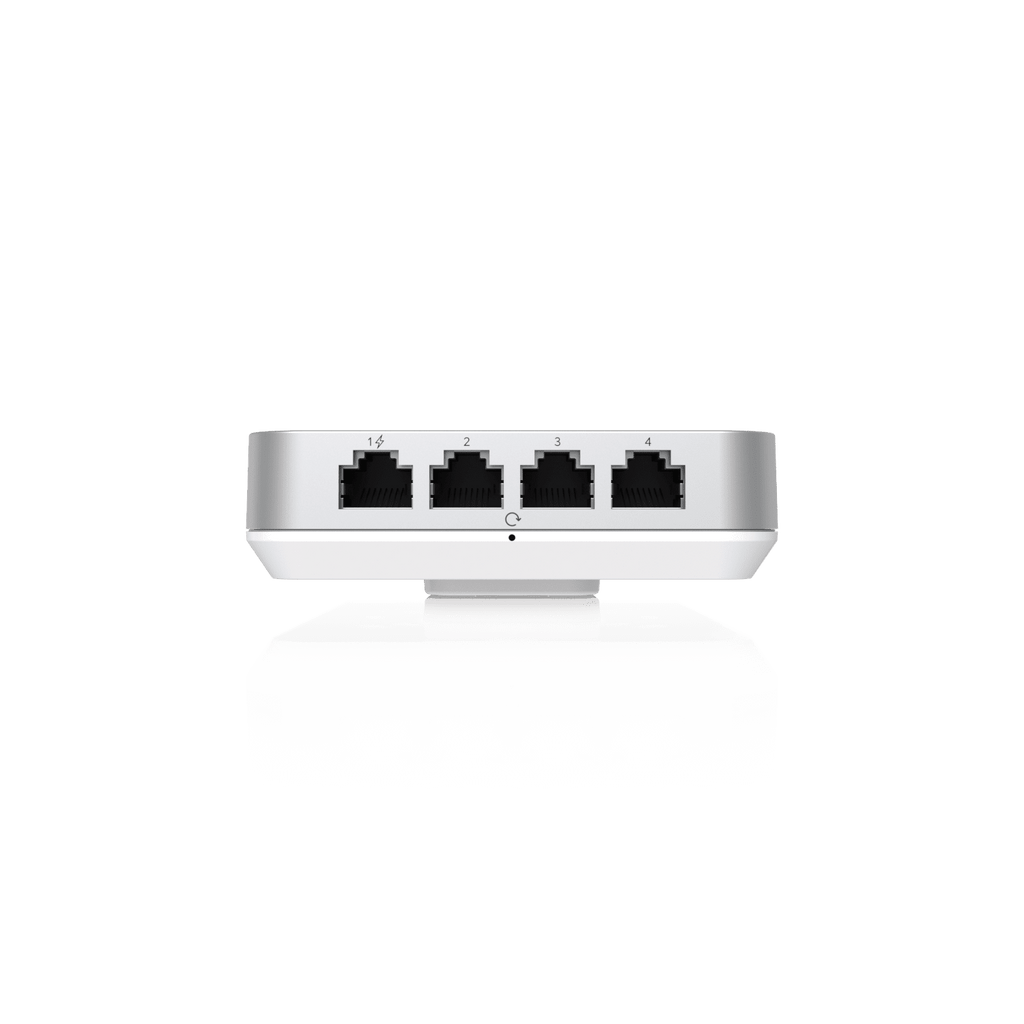

| Networking Interface | (1) GbE RJ45 uplink (4) GbE RJ45 downlink (1 with PoE output) |
| Built-in Switch | ✓ (4-port) |
| Power Method | PoE / PoE+ (required for PoE output) |
| Max Power Consumption | 13W (excluding PoE output) |
| Management Interfaces | Ethernet, Bluetooth |
| Advanced Features | Wireless Meshing, Band Steering, 802.11r/k/v Fast Roaming Radio Resource Management, Passpoint (Hotspot 2.0) Captive Portal, PPSK, VLAN, Guest Isolation, Wi-Fi Scheduling RADIUS over TLS (RadSec), Dynamic VLAN, Speed Limiting |
| Dimensions | 139.7 × 96 × 31.2 mm (5.5 × 3.8 × 1.3") |
| Weight | 460 g (1 lb) |
| Enclosure Material | Plastic, aluminum |
| Mount Material | Aluminum |
| Operating Temperature | -30 to 60°C (-22 to 140°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel, SRRC |
| NDAA Compliant | ✓ |
| UniFi Network Version | 6.0.45 and later |
