WiFi BaseStation XG
UWB-XG

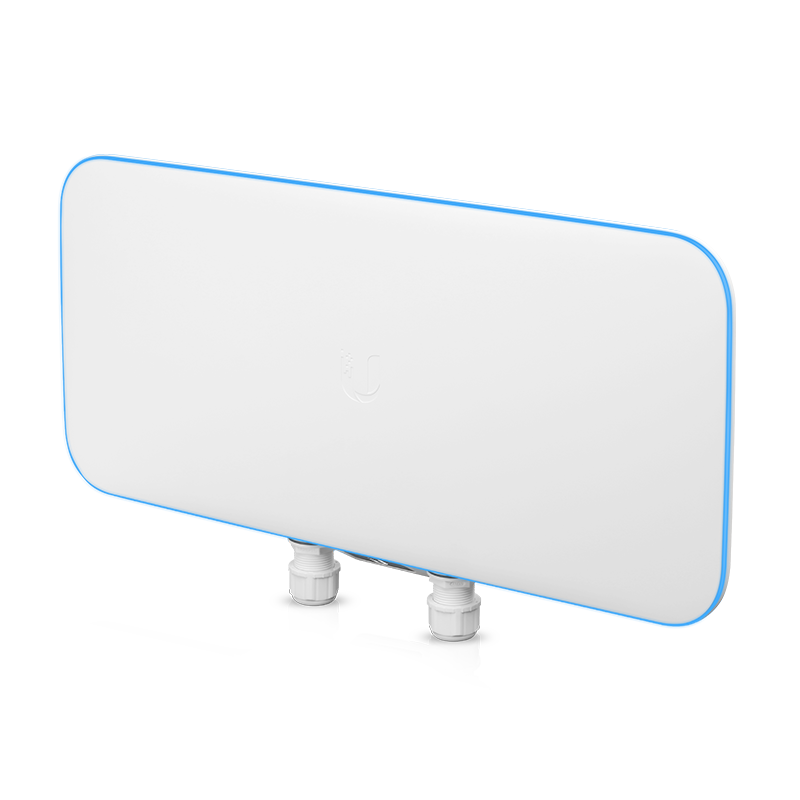

Tri-radio WiFi 5 AP with 12 spatial streams and a selectable beamforming antenna, designed for high-density applications at large venues.
WiFi BaseStation XG
UWB-XG
Tri-radio WiFi 5 AP with 12 spatial streams and a selectable beamforming antenna, designed for high-density applications at large venues.
UWB-XG Specifications | |
---|---|
Product Type | Tri-Radio 802.11ac WiFi BaseStation |
Application | High-density venues (stadiums, convention centers) |
Max Client Capacity | 1500+ clients |
Coverage Area | 465 m² (5,000 ft²) |
Wireless | |
WiFi Standard | 802.11ac Wave 2 (WiFi 5) |
Spatial Streams | 12 total |
MIMO Configuration | 4×4 DL MU-MIMO per band |
Max Data Rate | 1.7 Gbps per 5 GHz band |
Channel Bandwidths | HT 20/40, VHT 20/40/80, HE 20/40/80 MHz |
Max BSSIDs | 8 per radio |
Operating Frequencies | US/CA: 5150–5850 MHz Worldwide: 5150–5670 MHz |
Antenna | |
Type | Integrated dual-mode directional array |
Gain | 15 dBi @ 50° × 50° 10 dBi @ 90° × 90° |
Beamforming | ✓ (selectable) |
Interfaces | |
Ethernet | (1) 1G RJ45 (1) 1/10G ICM Ethernet |
Management | Ethernet, Bluetooth |
Power | |
Power Method | PoE++ (802.3bt) |
Voltage Range | 44–57V DC |
Max Power Consumption | 31W |
PoE Adapter Included | ✓ |
Mechanical | |
Dimensions | 471.1 × 257.5 × 94.3 mm (18.6 × 10.1 × 3.7") |
Weight | 3.2 kg (7.1 lb) |

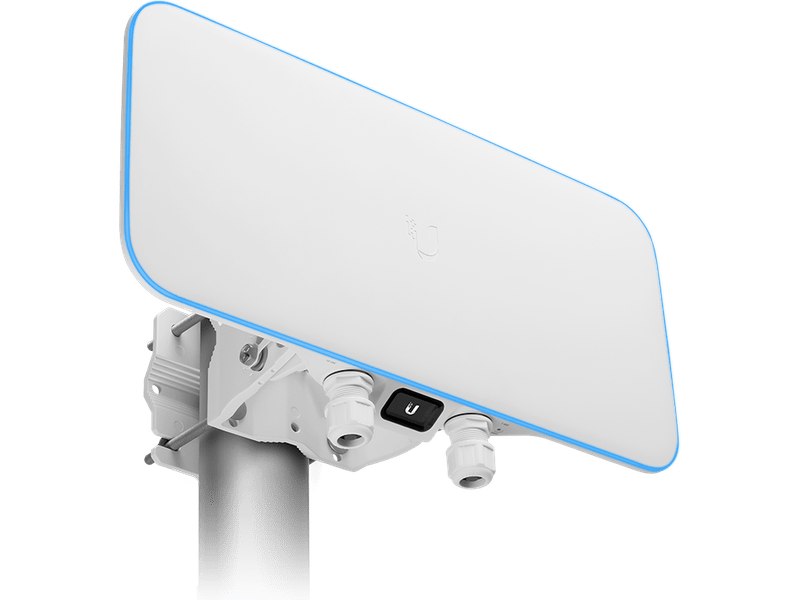

Mounting Options | Wall, Pole (included), VESA (optional) |
Pole Diameter Range | 25–76 mm (1–3") |
Enclosure Material | Polycarbonate, aluminum alloy |
Weatherproofing | IP67 |
Environmental | |
Operating Temperature | −40 to 70°C (−40 to 158°F) |
Operating Humidity | 5 to 95% noncondensing |
Features | |
Security Radio | ✓ (dedicated for threat detection) |
Spectrum Analysis | ✓ (persistent scan) |
Advanced Features | Wireless Meshing, Band Steering, Fast Roaming (802.11r), BSS Transition (802.11v), Radio Resource Management (802.11k), Passpoint (Hotspot 2.0), Captive Portal, VLAN Assignment via RADIUS |
Compliance | |
Certifications | CE, FCC, IC |
NDAA Compliant | ✓ |
