Overview

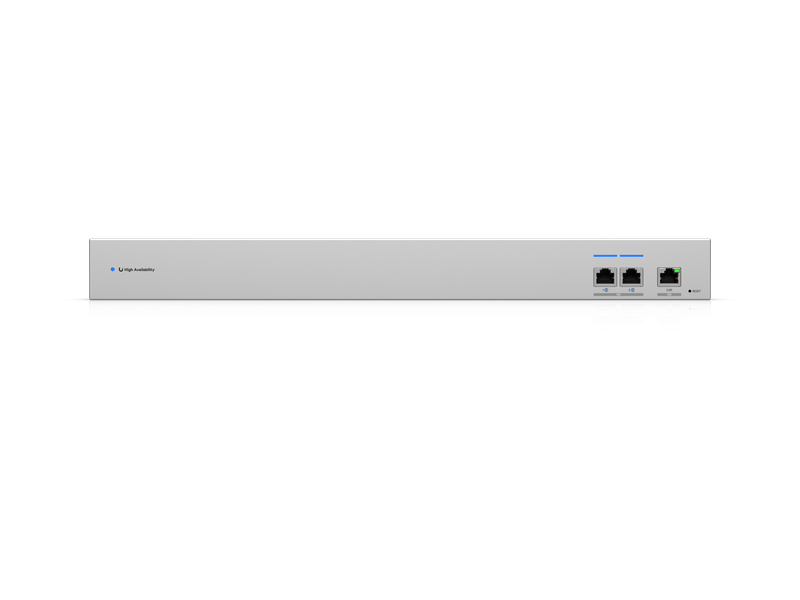

WAN Switch RJ45
USW-WAN-RJ45
10 GbE WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.
Note. Use an additional USW-WAN-RJ45 switch for deployments with multiple ISPs.
WAN Switch RJ45
USW-WAN-RJ45
10 GbE WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.
Note. Use an additional USW-WAN-RJ45 switch for deployments with multiple ISPs.
| USW-WAN-RJ45 Specifications | |
|---|---|
| Dimensions | 442.4 × 120 × 43.7 mm (17.4 × 4.72 × 1.7") |
| Form Factor | Rack mount (1U) |
| Port Layout | 1 × 1 GbE RJ45 (1G/100M/10M) 3 × 10 GbE RJ45 (10G/5G/2.5G/1G/100M) |

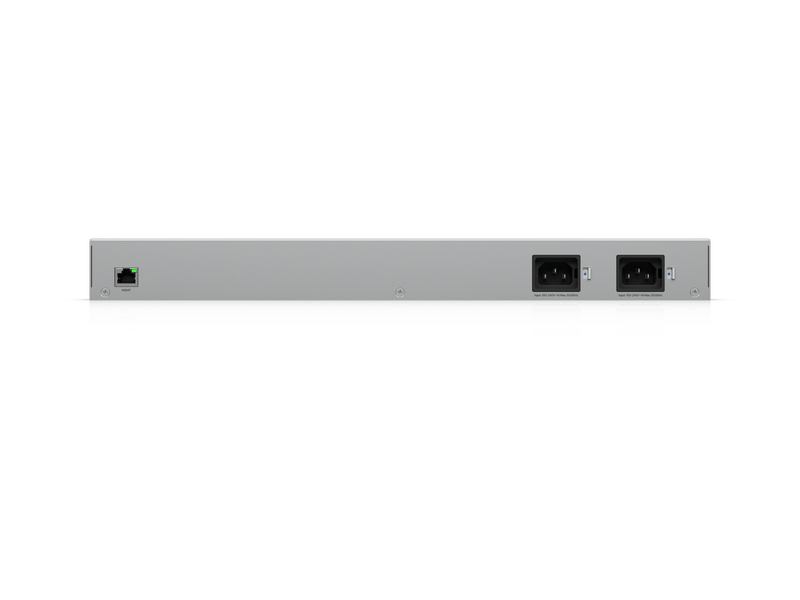

| Redundancy | Dual AC inputs |
| Use Case | WAN switch for linking UniFi Gateways in Shadow Mode to a single ISP |
| Switching Capacity | 20 Gbps |
| Non-Blocking Throughput | 10 Gbps |
| Forwarding Rate | 15 Mpps |
| Max. Power Consumption | 18W |
| Power Method | 2 × Universal input, 100–240V AC, 50/60 Hz |
| Power Supply | 2 × AC/DC internal, 36W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet |
| Weight | Without brackets: 2.3 kg (5.1 lb) With brackets: 2.4 kg (5.3 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| ESD Protection | Air: ±16kV, Contact: ±10kV |
| LED Indicators | Ethernet ✓, System ✓ |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Application Requirements | UniFi Network version 9.1.120 and later |
